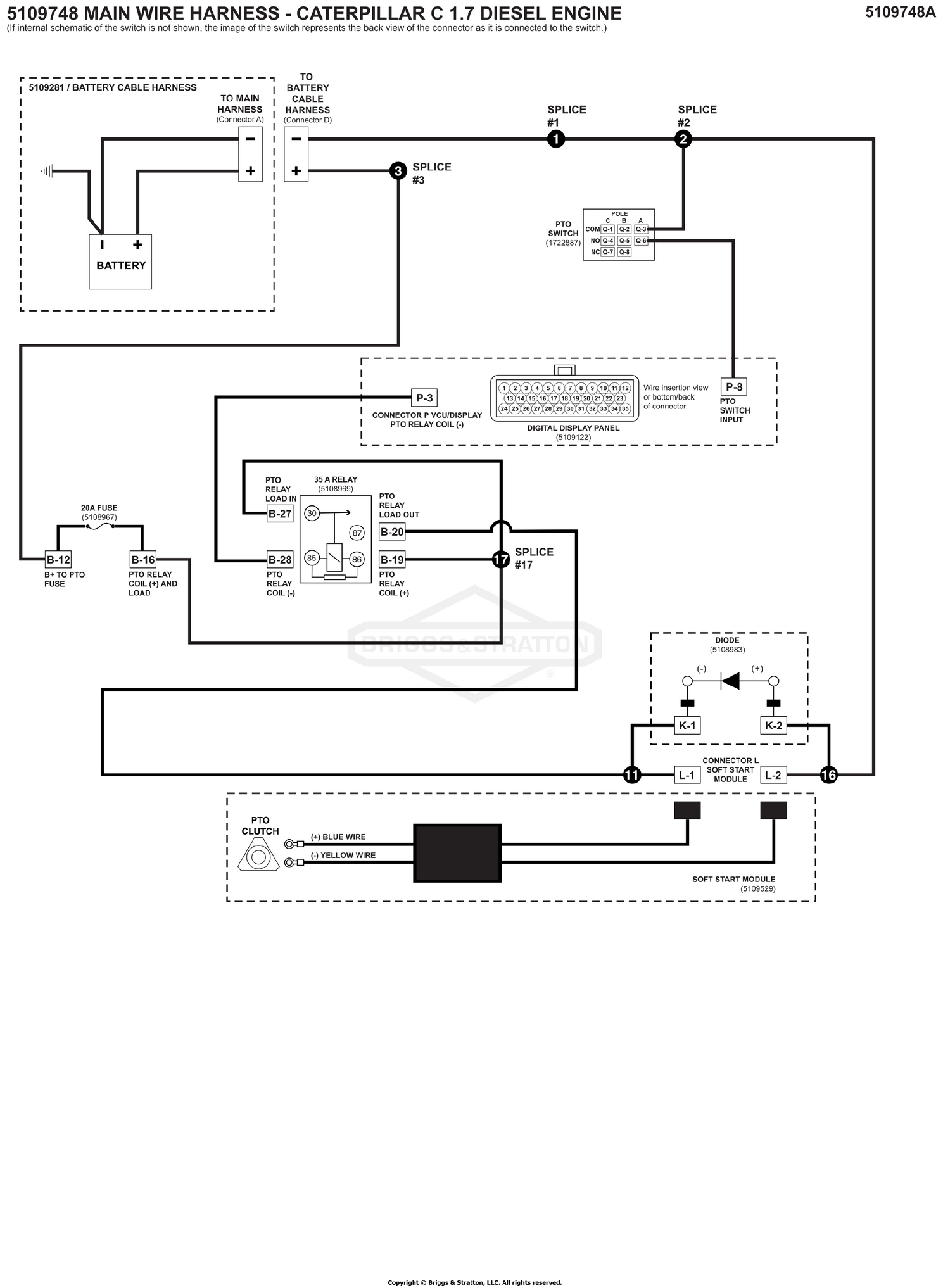

Electrical Schematic - PTO Clutch Circuit S/N: 4001933021 and Above
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 5108967 | 84009448 | FUSE, 20 AMP, MINI This part replaces 5108967. Price: $3.37 |
| 5108969 | 84008404 | RELAY Price: $24.37 |
| 5108983 | 84008684 | RECEPTACLE, DEUTSCH DIODE DT04-2P-RT01 Price: $58.12 |
| 5109122 | 5109122FS | DISPLAY This part replaces 5109122. Price: $676.79 |
| 5109281 | 5109281FS | HARNESS This part replaces 5109281. Price: $137.45 |
| 5109529 | 84013069 | MODULE, CONTROL This part replaces 5109529. Price: $297.64 |
| 5109748 | 5109748FS | HARNESS, WIRING This part replaces 5109748. Price: $897.82 |
