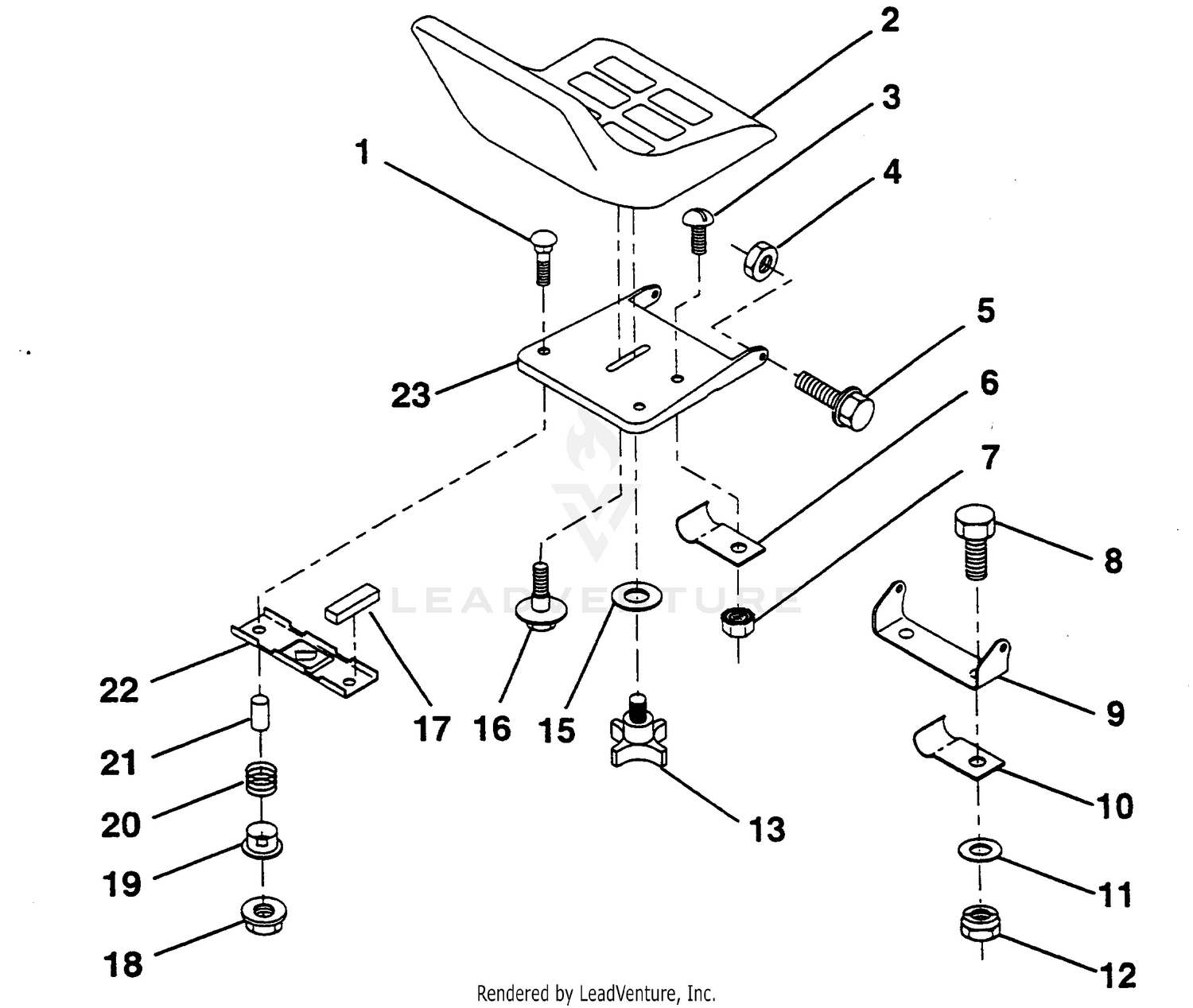

| Ref | Part Number | Description |
|---|
| 1 |
872050411 |
Bolt, Carriage 1/4-20 x 1-3/8 Price: $2.99 |
| 2 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532127428. Price: $142.99 |
| 3 |
874641008 |
Screw, Slotted Pan Head #10-32 x 1/2 Price: $2.99 |
| 4 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 5 |
532139888 |
Bolt Shoulder 5/16-18 Type T.T.T.R. This part replaces 532105529. Price: $2.99 |
| 6 |
532124967 |
Clip, Insulated Price: $5.46 |
| 7 |
873161000 |
This part replaces 873951000. Price: $1.99 |
| 8 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 874760612. Price: $3.99 |
| 9 |
532126656 |
Bracket, Pivot, Seat Price: $5.46 |
| 10 |
112-7026 |
WHEEL BEARING CASE ASM This part replaces 98-9480. Price: $196.85 |
| 10 |
532126471 |
Clip, Insulated Price: $2.99 |
| 11 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 12 |
873680600 |
Nut, Crownlock 3/8-16 UNC Price: $1.99 |
| 13 |
532166369 |
Knob Seat Adj. Wingnut This part replaces 532120068. Price: $4.99 |
| 15 |
819171912 |
Washer 17/32 x 1-3/16 x 12 Gauge Price: $3.99 |
| 16 |
532127018 |
Bolt, Shoulder Price: $3.99 |
| 17 |
532121251 |
Strip, Foam Price: $5.46 |
| 18 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 19 |
532121248 |
Bushing, Snap Price: $3.99 |
| 20 |
532121250 |
Spring, Compression Price: $3.99 |
| 20 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 21 |
532134300 |
Spacer, Split, Large .28 Id. x .96 Price: $3.99 |
| 22 |
532174648 |
Bracket Mounting Switch This part replaces 532121246. Price: $4.99 |
| 30 |
131-6554 |
GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12 |
| 40 |
112-7046 |
COVER-CASE, BEARING This part replaces 98-9487. Price: $66.00 |
| 50 |
112-0180 |
SEAL-OIL This part replaces 98-9483. Price: $58.48 |
| 60 |
98-9635 |
GASKET-COVER, BEARING CASE Price: $12.61 |
| 70 |
98-9352 |
BOLT Price: $0.80 |
| 80 |
98-7568 |
BOLT Price: $0.84 |
| 90 |
99-8361 |
CASE-BEARING, MAIN Price: $222.76 |
| 100 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 110 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 120 |
99-8360 |
CASE-BEARING, MAIN Price: $103.70 |
