| Ref | Part Number | Description |
|---|
| 1 |
182032 |

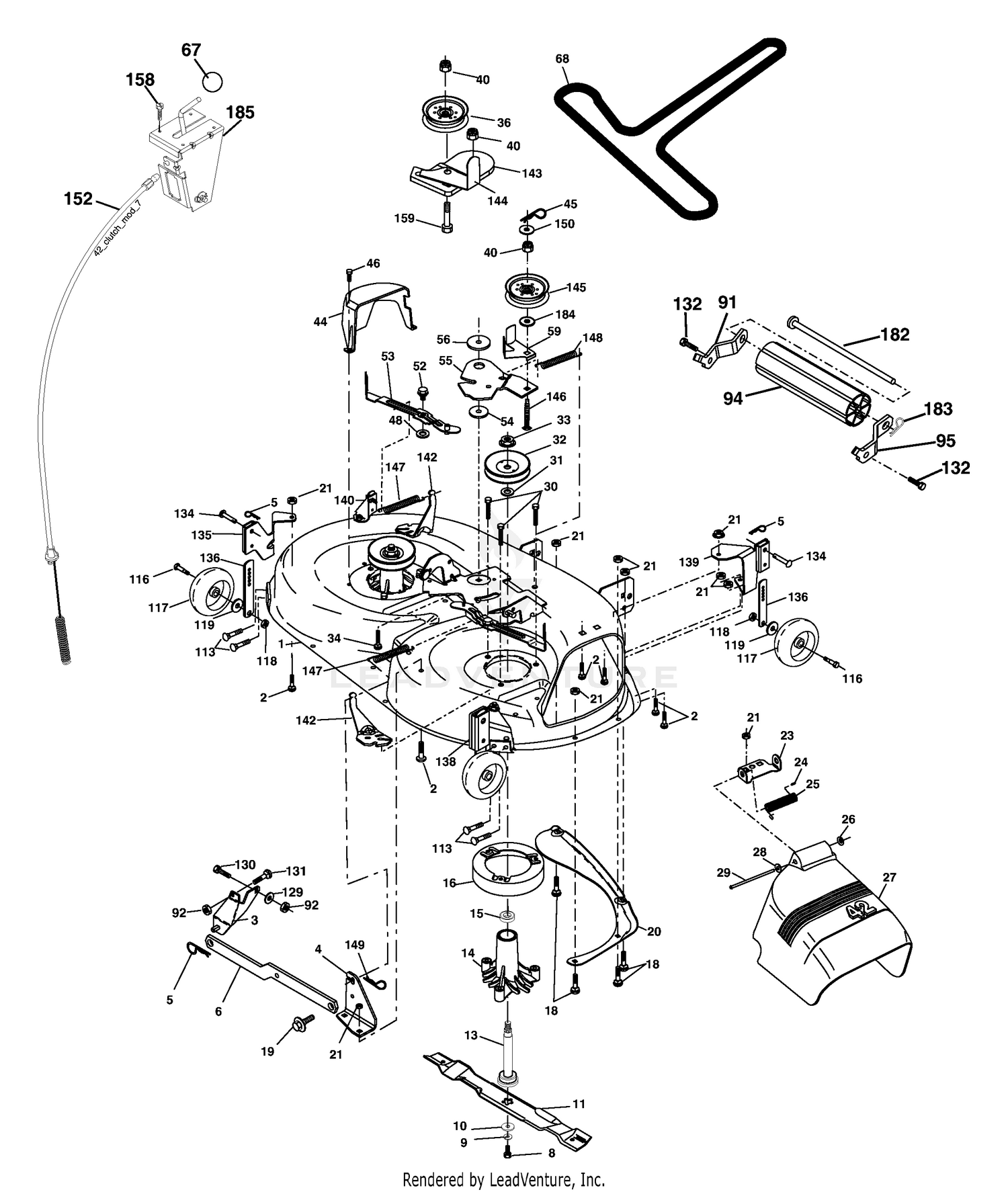

Mower Deck Assembly, 42" Price: Call Us |
| 1 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 2 |
93-5366 |
SHAFT-LATCH Price: $34.55 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
93-5367 |
SPRING-TORSION Price: $30.35 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
93-5363 |
LATCH ASM Price: $171.01 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
93-3094 |
PLUG-CAP Price: $1.91 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
33115-060 |
SCREW-HH Price: $2.29 |
| 7 |
93-5308 |
WASHER-ISO MOUNT Price: $1.07 |
| 8 |
104-0136 |
MOUNT-ISO Price: $17.42 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 10 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 11 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
93-5348 |
ABRASIVE-FLOOR Price: $34.12 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
93-5507 |
ABRASIVE-PLATFORM Price: $22.40 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
93-5349 |
ABRASIVE-FLOOR Price: $19.34 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 16 |
93-5447 |
NUT-CLINCH Price: $0.95 |
| 17 |
93-5232-01 |
Platform Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 18 |
93-5310-01 |
COVER-TUBES Price: $85.03 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
93-5335 |
STRIP-FOAM, SEAT Price: $3.33 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
93-5334 |
STRIP-FOAM, SEAT Price: $3.78 |
| 21 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
283-83 |
PIN-CLEVIS Price: $9.52 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 23 |
98-2395-03 |
SEAT-BASE ASM Price: $229.69 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 24 |
93-5338 |
ROD-PROP Price: $124.99 |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
240-5 |
GROMMET Price: $13.66 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 26 |
93-7834 |
DECAL-FOOTREST, RH Price: $36.92 |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 27 |
93-5449 |
NUT-CLINCH Price: $4.12 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 30 |
93-5255 |
STRIP-FOAM, PLAT Price: $28.80 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 31 |
95-3033 |
ROD Price: $69.93 |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 32 |
32121-79 |
PIN-ROLL Price: $10.59 |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 33 |
28-0570 |
SPRING-COMPRESSION Price: $33.04 |
| 34 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 35 |
33114-020 |
SCREW-HH Price: $0.28 |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 36 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 37 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 38 |
2412-133 |
CLAMP-R Price: $3.19 |
| 39 |
33114-016 |
SCREW-HH Price: $0.27 |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 40 |
99-5789 |
STRIP-FOAM Price: $4.11 |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer Hardened Price: Call Us |
| 52 |
139888 |
Bolt Shld 5/16-18 Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 67 |
149846 |
Knob Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 91 |
1880532 |
Bracket Nose Roller LH Price: Call Us |
| 92 |
73800600 |
Nut Lock W/Ins 3/8-16 unc Price: Call Us |
| 94 |
132264 |
Roller Nose Price: Call Us |
| 95 |
180533 |
Bracket Nose Roller RH Price: Call Us |
| 113 |
17000510 |
Screw 5/16-18 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 129 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 130 |
74780616 |
Bolt Fin HEx 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 131 |
72140608 |
Bolt RDHD SQNK 3/8-16 unc x 1 Price: Call Us |
| 132 |
17000612 |
Screw Hexwsh Thdr. 3/8-16 x 3/4 Price: Call Us |
| 134 |
156941 |
Pin Head Rivet Price: Call Us |
| 135 |
159765 |
Bracket Asm Wheel Ga. Rear LH Price: Call Us |
| 136 |
155986 |
Bar Adjusting Gauge Wheel Price: Call Us |
| 138 |
159763 |
Bracket Asm Wheel Ga. Rear RH Price: Call Us |
| 139 |
159767 |
Bracket Asm Wheel Ga. Front RH Price: Call Us |
| 140 |
159768 |
Bracket Asm Wheel Ga. Front LH Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extention Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Cable Clutch Price: Call Us |
| 158 |
17720408 |
Screw Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 182 |
179126 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm. Cable Clutch Price: Call Us |
