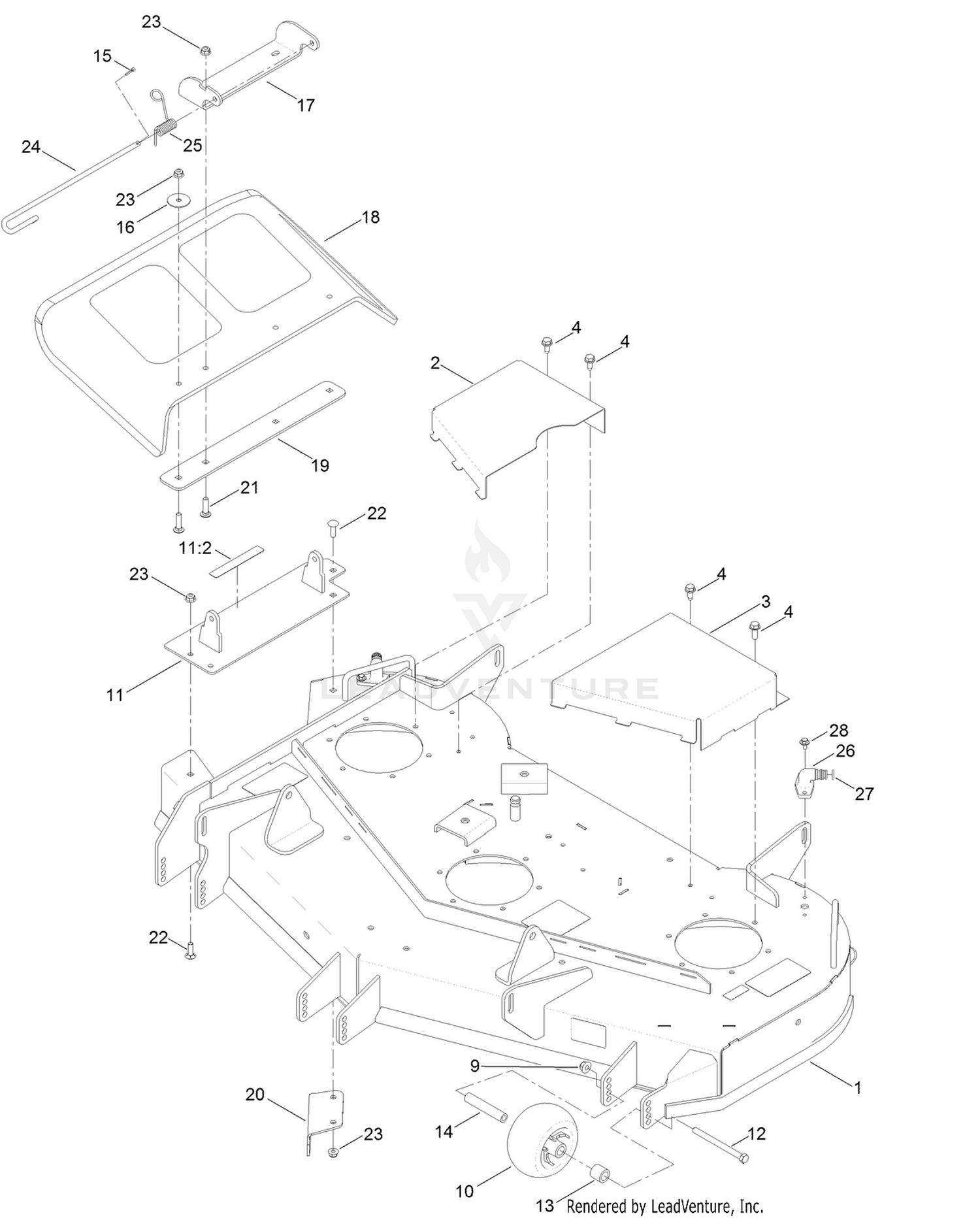

48 Inch Deck Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 117-7396-05 | COVER-BELT Price: $30.69 |
| 3 | 117-7397-05 | COVER-BELT Price: $30.69 |
| 4 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 9 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 10 | 1-603299 | ROLLER-SCALP, ANTI Price: $21.99 |
| 11 | 130-0762 | PIVOT-DEFLECTOR Price: $58.49 |
| 12 | 323-23 | SCREW-HH Price: $2.07 |
| 13 | 104-0892 | SPACER-AXLE, REAR Price: $3.30 |
| 14 | 98-7912 | TUBE-SPANNER Price: $12.23 |
| 15 | 3272-10 | PIN-COTTER Price: $0.25 |
| 16 | 3256-68 | WASHER-FLAT Price: $2.69 |
| 17 | 114-1648-05 | BRACKET-DEFLECTOR, UPPER Price: $29.23 |
| 18 | 117-1270 | DEFLECTOR Price: $50.71 |
| 19 | 115-5048-03 | PLATE-DEFLECTOR Price: $28.80 |
| 20 | 117-7418-03 | BAFFLE-CUTOFF Price: $14.30 |
| 21 | 3230-3 | SCREW-CARR Price: $0.53 |
| 22 | 3230-22 | SCREW-CARR Price: $1.99 |
| 23 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 24 | 109-8854 | PIN-CHUTE Price: $10.21 |
| 25 | 121-2983 | SPRING-TORSION Price: $2.71 |
| 26 | 133-9289 | FITTING-WASHOUT This part replaces 95-2747. Price: $3.86 |
| 27 | 46-6290 | O-RING Price: $2.59 |
