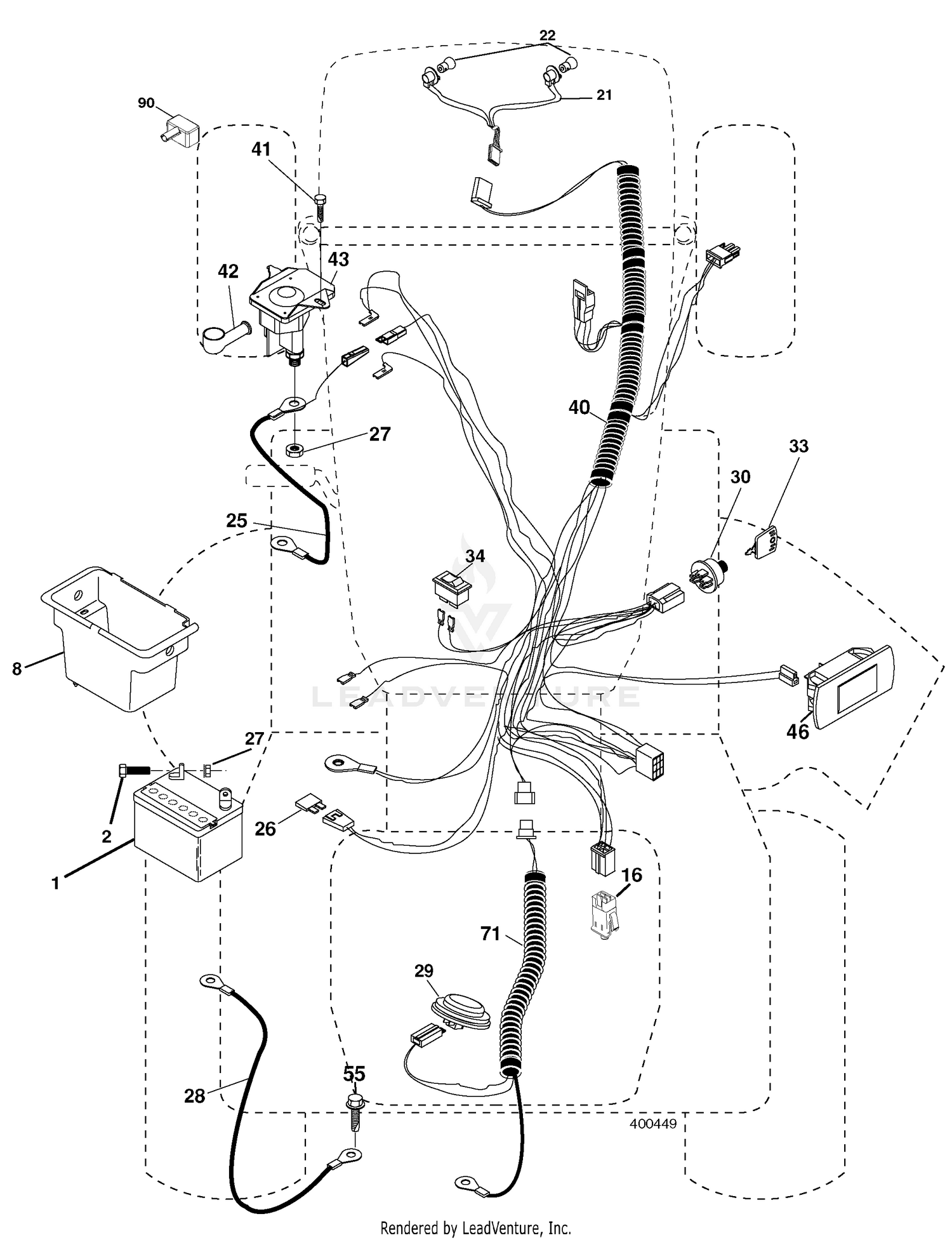

| Ref | Part Number | Description |
|---|
| 1 |
163465 |
Battery Price: Call Us |
| 1 |
33114-016 |
SCREW-HH Price: $0.27 |
| 2 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 2 |
74760412 |
Bolt Hex Head 1/4-20 x 3/4 Price: Call Us |
| 3 |
53-6070 |
LEVER-BRAKE Price: $361.17 |
| 4 |
59-7240 |
CONTROL-THROTTLE Price: $74.01 |
| 7 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 8 |
193228 |
Box Battery Price: Call Us |
| 8 |
25-8640 |
SCREW-HH Price: $1.09 |
| 9 |
93-0021 |
SWIVEL-CABLE, THROTTLE Price: $33.15 |
| 10 |
3296-13 |
NUT-LOCK, NI Price: $0.34 |
| 11 |
86-6090 |
HYD OIL FILTER ASM Price: $584.05 |
| 12 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 13 |
92-9222 |
CABLE-HANDBRAKE Price: $220.53 |
| 15 |
233-25 |
KNOB-CONTROL Price: $4.48 |
| 16 |
176138 |
Switch Interlock Push-In Price: Call Us |
| 16 |
3217-6 |
NUT-HEX Price: $1.19 |
| 17 |
58-2170-03 |
BAR-LINKAGE, BRAKE Price: $151.21 |
| 18 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 19 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 21 |
183759 |
Harness Socket Light W/4152J Price: Call Us |
| 21 |
321-4 |
SCREW-HH Price: $0.99 |
| 22 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 22 |
4152J |
Bulb Light Price: Call Us |
| 23 |
60-2140 |
SPRING Price: $26.64 |
| 24 |
92-9225 |
YOKE Price: $73.83 |
| 25 |
3217-6 |
NUT-HEX Price: $1.19 |
| 25 |
401662 |
Cable Starter Price: Call Us |
| 26 |
175158 |
Fuse Price: Call Us |
| 26 |
340-80 |
FITTING-STR Price: $47.82 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
198885 |
Cable, Ground Price: Call Us |
| 29 |
322-6 |
SCREW-HH Price: $0.45 |
| 29 |
401545 |
Switch, Seat Price: Call Us |
| 30 |
107-1818 |
DECAL-PANEL, SIDE CONTROL Price: $84.40 |
| 30 |
193350 |
Switch, Ignition Price: Call Us |
| 32 |
84-6470-03 |
BRACKET-FILTER Price: $56.96 |
| 33 |
140401 |
Key, Ignition Price: Call Us |
| 33 |
340-10 |
Adapter (Incl. Ref. #25 31) Price: $45.09 |
| 34 |
110712X |
Switch Light / Reset Price: Call Us |
| 34 |
48-7880 |
NUT-HEX Price: $0.25 |
| 35 |
43-5920 |
WASHER-LOCK, SPRING This part replaces 48-8000. Price: $0.25 |
| 36 |
52-6430 |
WASHER Price: $0.25 |
| 37 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 38 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 39 |
11-9030 |
SCREW-SHOULDER Price: $5.63 |
| 40 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 40 |
401098 |
Harness Ignition Dash Price: Call Us |
| 41 |
17720408 |
Screw Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 41 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 42 |
131563 |
Cover, Terminal Price: Call Us |
| 43 |
192507 |
Solenoid Price: Call Us |
| 43 |
323-5 |
SCREW-HH Price: $0.41 |
| 44 |
60-2370 |
GROMMET Price: $4.54 |
| 45 |
98-1261 |
ROD-THROTTLE Price: $65.71 |
| 46 |
401763 |
Gauge SRVCMNDR HRMTR Price: Call Us |
| 46 |
98-3845 |
JOINT-BALL, ROD END Price: $23.11 |
| 47 |
32120-72 |
RING-SNAP This part replaces 936125. Price: $2.09 |
| 48 |
67-9410 |
WASHER Price: $2.04 |
| 49 |
98-3846 |
WASHER-WAVE Price: $10.78 |
| 50 |
256-252 |
BEARING-FLANGE Price: $5.35 |
| 51 |
98-1257-03 |
LEVER-THROTTLE Price: $75.50 |
| 52 |
98-1256-03 |
PLATE-THROTTLE Price: $107.95 |
| 53 |
3220-1 |
NUT-JAM Price: $0.99 |
| 54 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 55 |
17060512 |
Screw Thdrol 5/16-18 x 3/4 TYTT Price: Call Us |
| 55 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 71 |
400449 |
Harness Ignition Price: Call Us |
