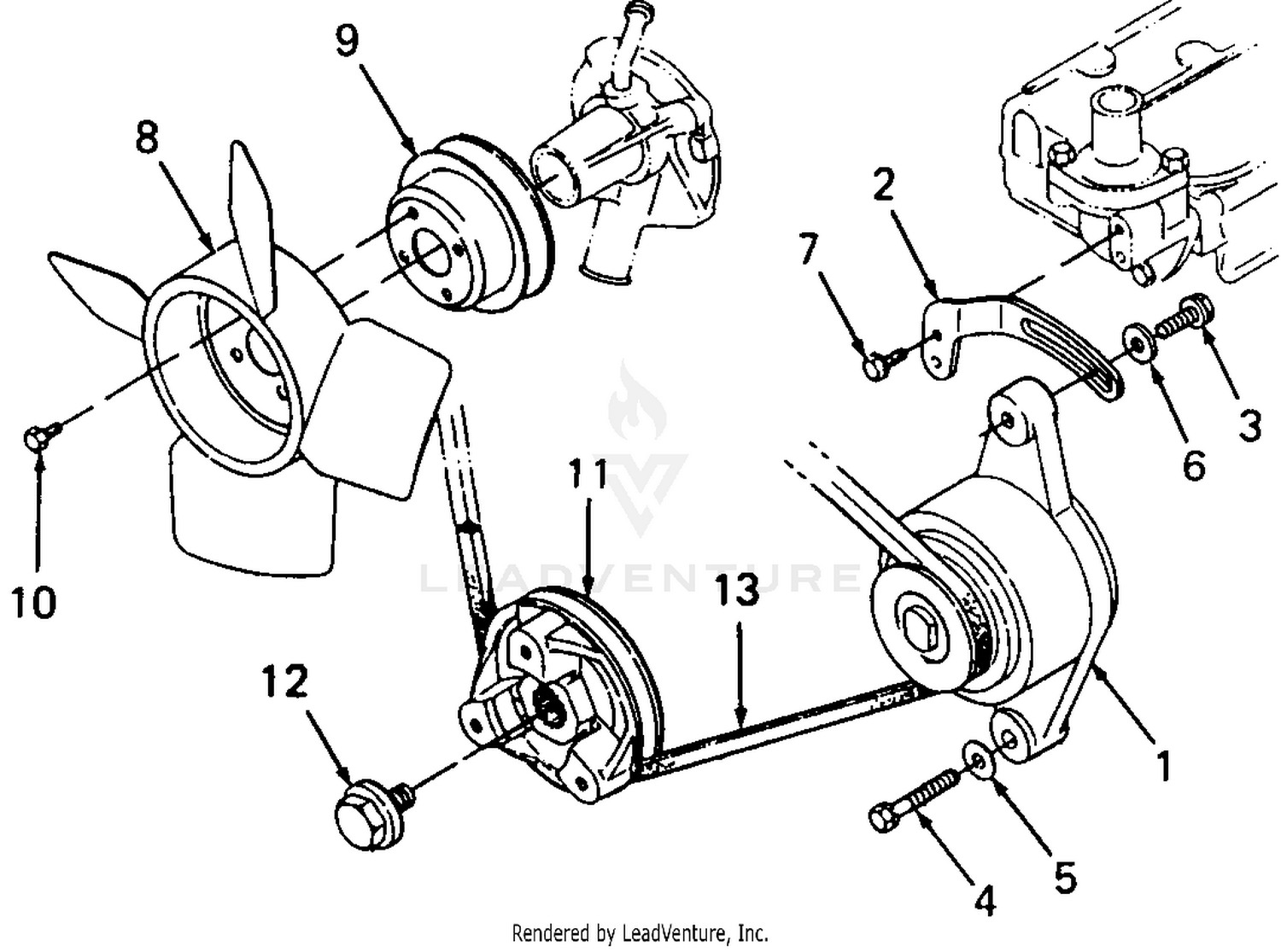

Alternator Mounting & Fan
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 302-5 | FITTING-GREASE Price: $0.59 |
| 1 | KB-15531-64017 | ALTERNATOR ASSEMBLY Not Available This part replaces KB-15531-64013. Price: |
| 2 | 94-3629 | DISCONTINUED Price: Call Us |
| 2 | KB-15841-64420 | SUPPORT Not Available Price: |
| 3 | 94-5101 | LH CARRIER FRAME ASM This part replaces 94-3627. Price: $520.14 |
| 3 | KB-01123-50825 | BOLT W/WASHER Not Available Price: |
| 4 | 94-5102 | RH CARRIER FRAME ASM This part replaces 94-3628. Price: $377.95 |
| 4 | KB-15841-91020 | BOLT Not Available Price: |
| 5 | 321-2 | SCREW-HH Price: $2.79 |
| 5 | KB-04013-50080 | WASHER Not Available Price: |
| 6 | 3253-3 | WASHER-LOCK Price: $0.31 |
| 6 | KB-04015-50080 | WASHER, FLAT Not Available Price: |
| 7 | 61-3600 | LIFT TAB Price: $4.53 |
| 7 | KB-01023-50616 | BOLT W/WASHER Not Available Price: |
| 8 | 93-6900 | DECAL - PINCHED FINGER Price: $4.35 |
| 8 | KB-15862-74110 | FAN Not Available Price: |
| 9 | 125-5196 | BUSHING This part replaces 3-0348. Price: $6.00 |
| 9 | KB-15841-74250 | PULLEY Not Available Price: |
| 10 | 3296-39 | NUT-LOCK, NI This part replaces 3296-22. Price: $2.29 |
| 10 | KB-01754-50612 | BOLT-FLANG Not Available Price: |
| 11 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 11 | KB-15861-74280 | PULLEY Not Available Price: |
| 12 | 323-7 | SCREW-HH Price: $0.65 |
| 12 | KB-15881-91030 | BOLT Not Available Price: |
| 13 | 61-0790 | SCREW-HH This part replaces 323-57. Price: $2.57 |
| 14 | 32128-43 | NUT-FLANGE Price: $0.94 |
| 15 | 59-2580 | SPACER-TUBULAR Price: $8.05 |
| 16 | 82-4910 | ROLLER Price: $26.42 |
