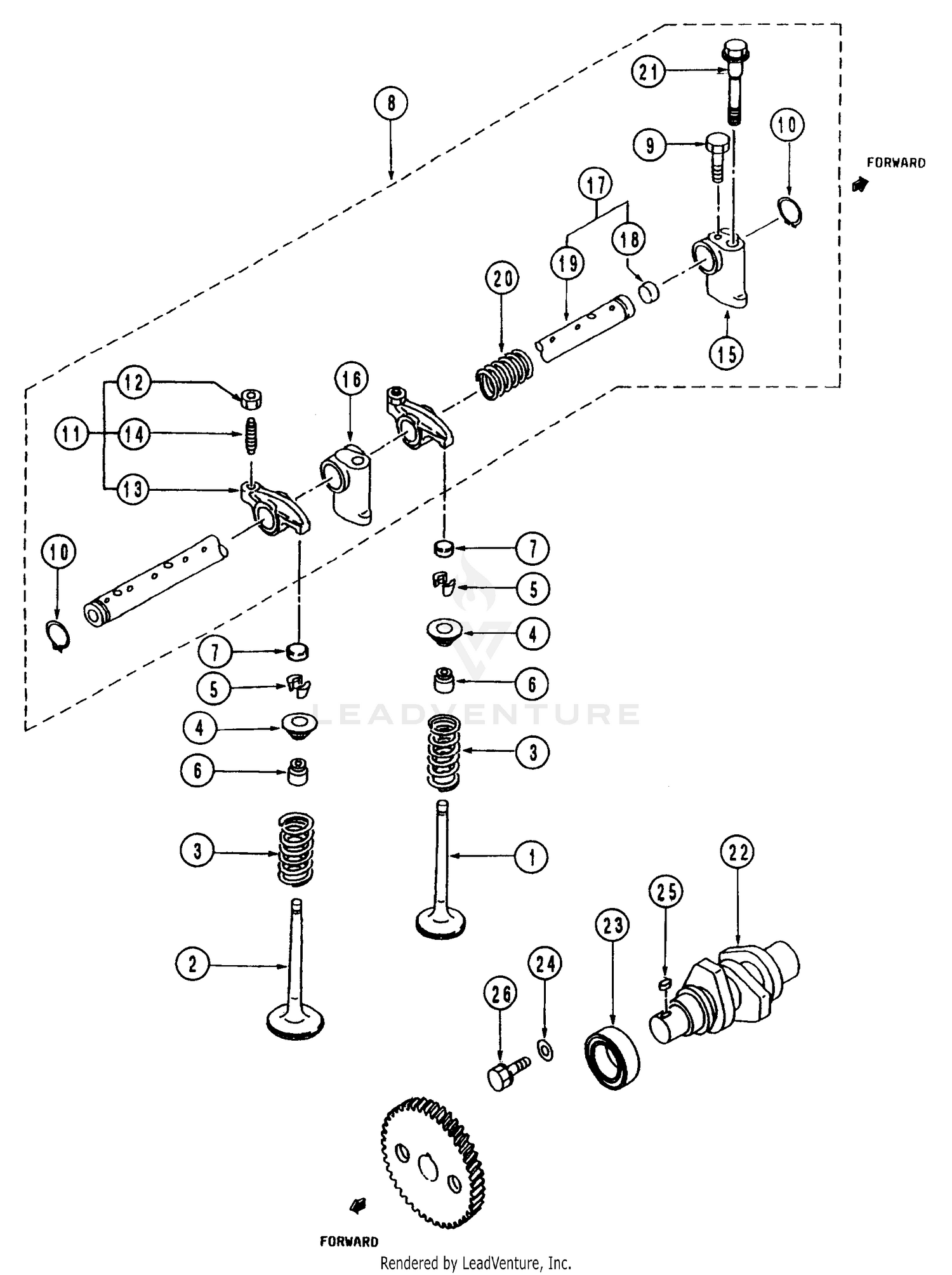

Timing Parts 26 HP Engine
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 98-9614 | CYLINDER HEAD COVER ASM Price: $256.63 |
| 1 | 98000129 | NUT Price: Call Us |
| 1 | MA-31A04-40100 | INTAKE VALVE Not Available This part replaces MA-31A04-30100. Price: |
| 2 | 104086X505 | SHIELD.SD.OUT.LH Price: Call Us |
| 2 | 98-7430 | O-RING Price: $1.95 |
| 2 | MA-31A04-30200 | EXHAUST VALVE Not Available This part replaces MA-31A04-20200. Price: |
| 3 | 107-9075 | PLUG-FILLER, OIL This part replaces 98-9449. Price: $7.25 |
| 3 | 8393J | STAKE PIN TI Price: Call Us |
| 3 | MA-31A04-01301 | VALVE SPRING Not Available Price: |
| 4 | 12000036 | KLIP RING TI Price: Call Us |
| 4 | 98-9455 | NUT-CAP Price: $4.77 |
| 4 | MA-MM43330601 | RETAINER-ENG VALVE Not Available This part replaces MA-MM433306. Price: |
| 5 | 72140506 | BOLT Price: Call Us |
| 5 | 98-9454 | GASKET Price: $1.43 |
| 5 | MA-MD016483 | LOCK Not Available Price: |
| 6 | 8394J | SPRING TI Price: Call Us |
| 6 | 98-9491 | PIPE-BREATHER Price: $12.92 |
| 6 | MA-MD115472 | Seal, Valve Stem Price: $11.43 |
| 7 | 8392J | LATCH BRACKET TI Price: Call Us |
| 7 | MA-31A04-00700 | VALVE CAP Not Available Price: |
| 8 | 109230X | SPRING CRT Price: Call Us |
| 8 | MA-31B04-00013 | Rocker & Shaft Ass'y Price: Call Us |
| 9 | MA-F1035-05010 | BOLT Not Available Price: |
| 10 | MA-07400001900 | SNAP RING Not Available This part replaces MA-MF522010. Price: |
| 11 | 73220500 | NUT.HEX.5/16-18 Price: Call Us |
| 11 | MA-31A04-11023 | ROCKER ASS'Y Not Available Price: |
| 12 | 10040500 | LOCKWASHER Price: Call Us |
| 12 | MA-F2325-08000 | NUT-JAM ROCKER S Not Available Price: |
| 13 | None | Rocker |
| 13 | 72110510 | BOLT Price: Call Us |
| 14 | 124343X | BRKT SHIELD TINE Price: Call Us |
| 14 | MA-32A04-02401 | SCREW-ROCKER Not Available This part replaces MA-32A04-02400. Price: |
| 15 | 104101X505 | SHIELD.SD.OUT.RH Price: Call Us |
| 15 | MA-31A04-34100 | BRACKET-ROCKER SHA Not Available Price: |
| 16 | 73220400 | SUB= 50675 Price: Call Us |
| 16 | MA-31A04-34300 | BRACKET-ROCKER SHA Not Available Price: |
| 17 | 10040400 | LOCKWASHER Price: Call Us |
| 17 | MA-31B04-01010 | SHAFT-ROCK Not Available Price: |
| 18 | 72040410 | BOLT Price: Call Us |
| 18 | MA-MD021204 | CAP-SEALIN Not Available Price: |
| 19 | None | Shaft, Rocker |
| 19 | 102701X | GRIP CRT Price: Call Us |
| 20 | 73220600 | NUT.HEX.3/8-16UNC Price: Call Us |
| 20 | MA-32C04-04500 | SPRING-ROCKER SHAF Not Available Price: |
| 21 | 102156X500 | STAKE DEPTH 16 Price: Call Us |
| 21 | MA-32C04-06101 | BOLT-ROCKER BRACKET Not Available This part replaces MA-32C04-06100. Price: |
| 22 | 74930632 | BOLT Price: Call Us |
| 22 | MA-31B65-01200 | SHAFT-INJECTOR PUM Not Available Price: |
| 23 | 4440J | HINGE CRT Price: Call Us |
| 23 | MA-MD703856 | BEARING NSK62/128 Not Available Price: |
| 24 | 72140404 | BOLT Price: Call Us |
| 24 | MA-MD000425 | WASHER Not Available Price: |
| 25 | 6712 | J VINYL CAP TI Price: Call Us 6712 J |
| 25 | MA-MF476018 | KEY Not Available Price: |
| 26 | 109227X | PAD IDLER TI Price: Call Us |
| 27 | 102695X505 | LEVELING SHIELD Price: Call Us |
