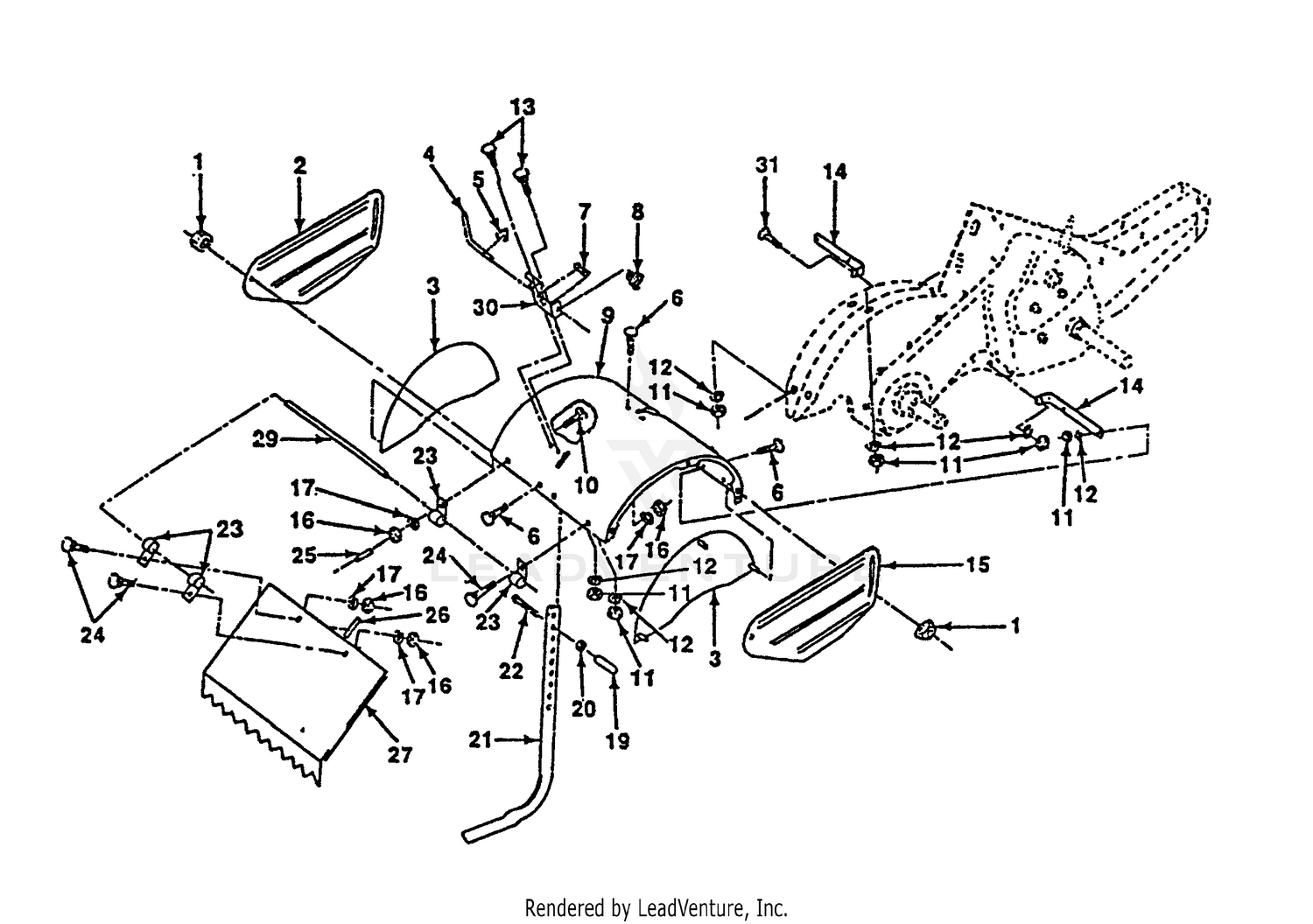

| Ref | Part Number | Description |
|---|
| 1 |
596040501 |
Hardware This part replaces 898000129. Price: $2.99 |
| 2 |
532440452 |
SHIELD.PNT.SIDE.OUTER.LH.ORANG This part replaces 532125012. Price: $17.99 |
| 3 |
585414301 |
KIT.TILLER.SIDE.SHIELD.BLACK This part replaces 532125013. Price: $37.99 |
| 4 |
532008393 |
STAKE PIN TI Price: $19.99 |
| 5 |
812000036 |
KLIP RING TI Price: $2.99 |
| 6 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 7 |
532008394 |
SPRING TI Price: $7.99 |
| 8 |
532109230 |
SPRING CRT Price: $4.99 |
| 9 |
532442662 |
SHIELD.PNT.TINE.CRT17.ORANGE This part replaces 532125014. Price: $44.99 |
| 10 |
872040410 |
BOLT Price: $3.99 |
| 11 |
596436301 |
Nuts This part replaces 873220500. Price: $2.99 |
| 12 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 13 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 14 |
584459301 |
BRACKET.TINE.SHIELD.BLACK This part replaces 532124343. Price: $32.99 |
| 15 |
532195795 |
SHIELD.SIDE.OUTER.RH.BLACK This part replaces 532125015. Price: $11.99 |
| 16 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 17 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 19 |
532102701 |
GRIP CRT Price: $9.99 |
| 20 |
596433401 |
Nuts This part replaces 873220800. Price: $2.99 |
| 21 |
531154801 |
SERVICE KIT STAKE STAKE.DEPTH. This part replaces 532102156. Price: $8.99 |
| 22 |
874930632 |
BOLT.375-16 Price: $5.99 |
| 23 |
532004440 |
HINGE CRT Price: $3.99 |
| 24 |
596133401 |
Bolts This part replaces 872140404. Price: $1.99 |
| 25 |
532006712 |
VINYL CAP This part replaces 532124717. Price: $3.99 |
| 26 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 27 |
532440448 |
SHIELD.LEVELING.17".ORANGE This part replaces 532125016. Price: $69.99 |
| 29 |
532120588 |
PIN.HINGE.TILLER Price: $6.99 |
| 30 |
532008392 |
BRACKET.LATCH.STAKE.3.20.BLACK Price: $4.99 |
| 31 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 532124263 |
DECAL |
TINE SHIELD Price: $8.66 532124263 |
