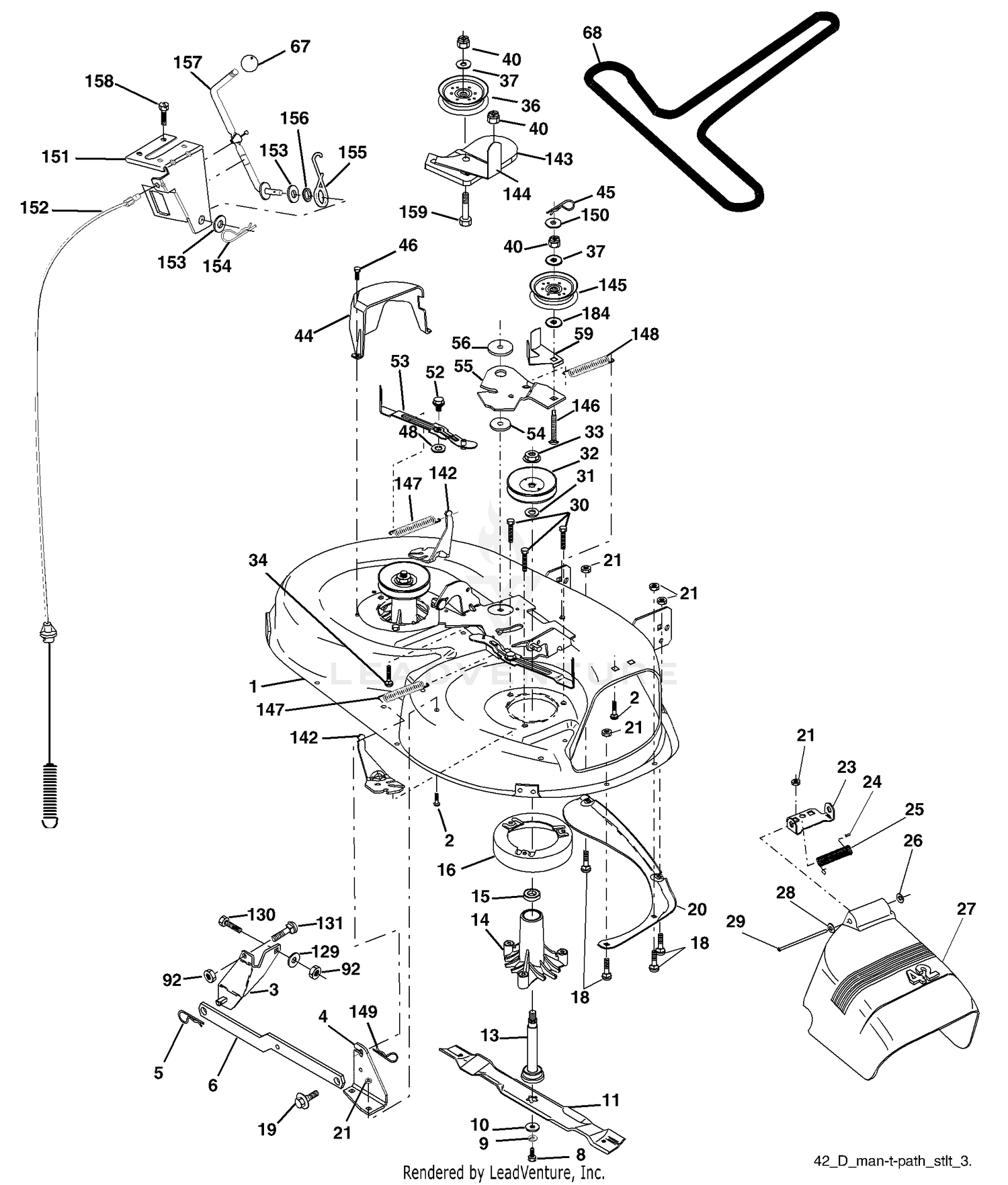

| Ref | Part Number | Description |
|---|
| 1 |
165892 |
Mower Deck Assembly, 42" Price: Call Us |
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 2 |
68-9760 |
DISCONTINUED Price: Call Us |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
21-3600 |
FOAM-SUPPORT, TANK Price: $25.75 |
| 4 |
115-4519 |
FUEL TANK ASM This part replaces 43-4150. Price: $634.24 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
32104-96 |
SCREW-HH Price: $5.59 |
| 7 |
37-9550 |
STRAP-TANK, FUEL Price: $46.74 |
| 8 |
62-7650 |
GASKET Price: $4.28 |
| 8 |
850857 |
Bolt 3/8-24 x 25 Grade 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 11 |
32144-53 |
SCREW-SHWH, THREAD FORMING Price: $3.19 |
| 12 |
105-2563 |
SENDER-FUEL Price: $191.04 |
| 13 |
110-4109 |
HOSE-FUEL This part replaces 104-0076. Price: $11.24 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
2412-6 |
CLAMP-HOSE Price: $4.57 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
55-3572 |
FUEL CAP ASM Price: $15.49 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 16 |
22-7810 |
SPACER Price: $16.90 |
| 17 |
321-6 |
SCREW-HH Price: $0.25 |
| 18 |
21-3610 |
FOAM-SUPPORT, TANK Price: $20.11 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
2412-4 |
CLAMP-R Price: $4.22 |
| 20 |
110-4105 |
HOSE-FUEL This part replaces 27-5360. Price: $11.71 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
42-6080 |
SHIM-AXLE Price: $29.45 |
| 23 |
177563 |
Bracket,Deflector Mower 42" Price: Call Us |
| 23 |
23-7270 |
NUT-LUG Price: $10.37 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 24 |
32144-67 |
SCREW Price: $2.87 |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
32128-20 |
NUT-HF Price: $0.99 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 27 |
86-9600-03 |
AXLE ASM Price: $3,784.17 |
| 27 |
86-9630-03 |
AXLE ASM Price: $5,482.70 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: Call Us |
| 28 |
24-9830-01 |
AXLE SUPPORT ASM Price: $83.43 |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Washer Head Price: Call Us |
| 30 |
3219-14 |
NUT-HEX Price: $0.25 |
| 31 |
129963 |
Washer, Spacer Mower Vented Price: Call Us |
| 31 |
323-6 |
SCREW-HH Price: $0.66 |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 32 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 33 |
178342 |
Nut, Toplock 9/16 Flange Price: Call Us |
| 33 |
3217-9 |
NUT-HH Price: $0.37 |
| 34 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 34 |
72110614 |
Bolt Price: Call Us |
| 35 |
2412-79 |
CLAMP-HOSE Price: $1.63 |
| 36 |
110-5688 |
HOSE-FUEL This part replaces 43-4230. Price: $34.27 |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Gauge Price: Call Us |
| 37 |
23-5180 |
DIPSTICK ASM Price: $69.61 |
| 38 |
289-37 |
NIPPLE-PIPE Price: $21.68 |
| 39 |
2811-9 |
FITTING-ELBOW-90 Price: $15.86 |
| 40 |
73680600 |
Nut Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 UNC Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 151 |
169670 |
Bracket Clutch Cable Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retention LVR CLTCH CAB Price: Call Us |
| 156 |
169672 |
Spacer Clutch Cable Price: Call Us |
| 157 |
169669 |
Rod Clutch Cable 3/8" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
