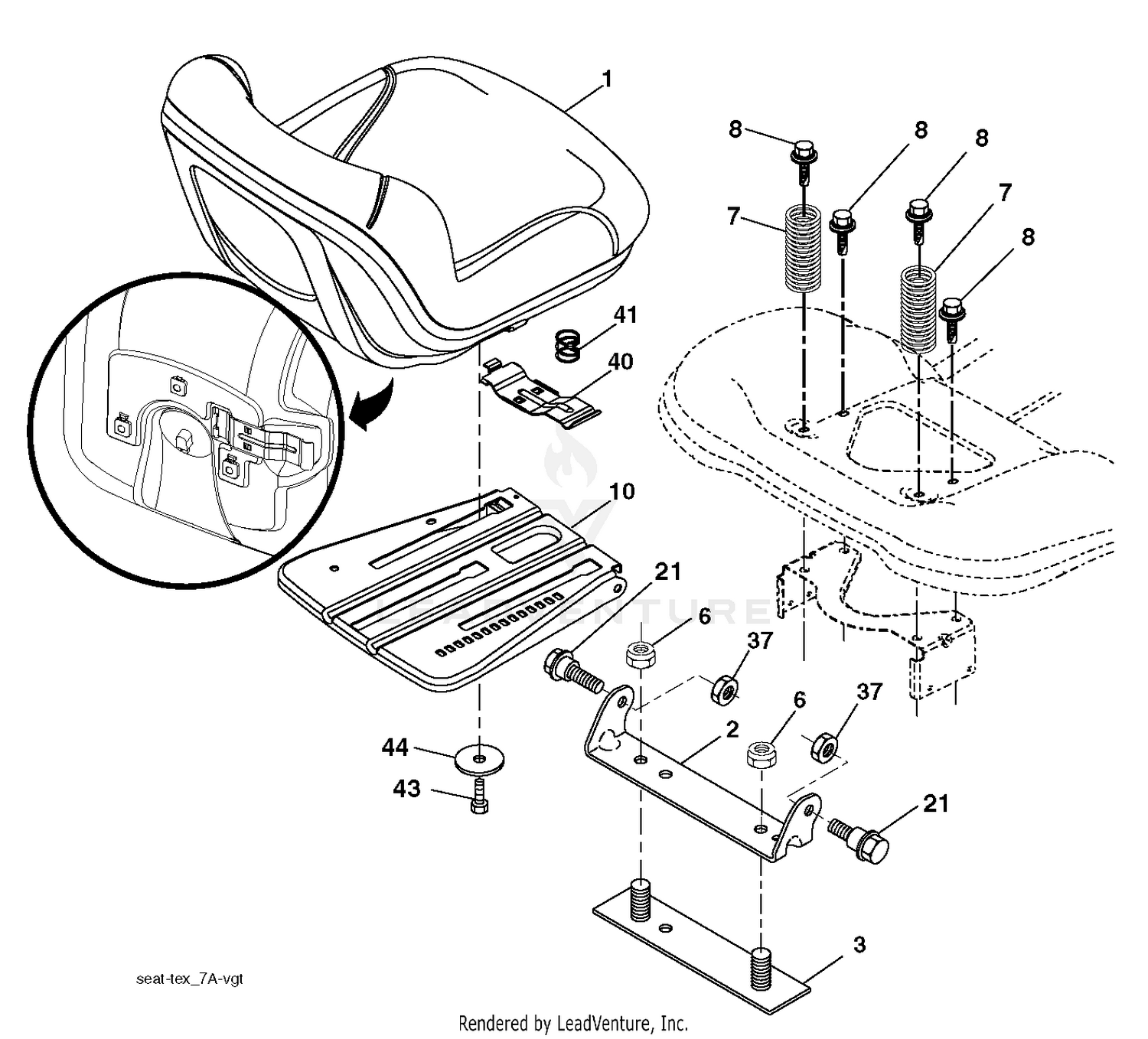

| Ref | Part Number | Description |
|---|
| 1 |
532406625 |
SEAT.TG150.BLK.NLOGO. Price: $174.99 |
| 1 |
92-4135 |
BOLT-SET Price: $6.00 |
| 2 |
112-7967 |
RH BACKPLATE ASM This part replaces 92-4100. Price: $87.61 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $5.99 |
| 2 |
92-4136 |
LH BACKPLATE ASM Price: $136.64 |
| 3 |
532140675 |
STRAP Price: $3.99 |
| 3 |
92-4146 |
PLUNGER ASM Price: $8.91 |
| 4 |
112-7978 |
LINED SHOE KIT This part replaces 92-4143. Price: $214.94 |
| 5 |
92-4147 |
SPRING-RETURN, SHOE (UPPER, LH) Price: $16.67 |
| 5 |
92-4148 |
SPRING-RETURN, SHOE (UPPER, RH) Price: $16.67 |
| 6 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 6 |
92-4149 |
SPRING-RETURN, SHOE (LOWER) Price: $13.46 |
| 7 |
539110300 |
SRPING.SEAT This part replaces 532124181. Price: $2.99 |
| 7 |
92-4123 |
LH PAWL LEVER ASM Price: $19.19 |
| 7 |
92-4124 |
RH PAWL LEVER ASM Price: $19.19 |
| 8 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 8 |
92-4150 |
SPRING-ADJUSTER, LH Price: $15.10 |
| 8 |
92-4151 |
SPRING-ADJUSTER, RH Price: $13.46 |
| 9 |
92-4131 |
WASHER-HOLD DOWN, SHOE Price: $5.35 |
| 10 |
532196977 |
PAN.ASM.SEAT.3PT Price: $31.99 |
| 10 |
92-4152 |
SPRING-HOLD DOWN, SHOE Price: $14.57 |
| 11 |
92-4134 |
PLUG-INSPECTION Price: $8.77 |
| 12 |
92-4133 |
PIN-HOLD DOWN, SHOE Price: $3.82 |
| 13 |
92-4144 |
LH ADJUSTER ASM Price: $52.62 |
| 13 |
92-4145 |
RH ADJUSTOR ASM Price: $52.62 |
| 14 |
92-4140 |
LH WHEEL CYLINDER ASM Price: $147.52 |
| 14 |
92-4141 |
RH WHEEL CYLINDER ASM Price: $147.52 |
| 21 |
532171852 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 37 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.69 |
| 40 |
532197661 |
HANDLE.SLIDE.SEAT.TEX.BLACK Price: $12.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $2.99 |
| 43 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 874760612. Price: $3.99 |
