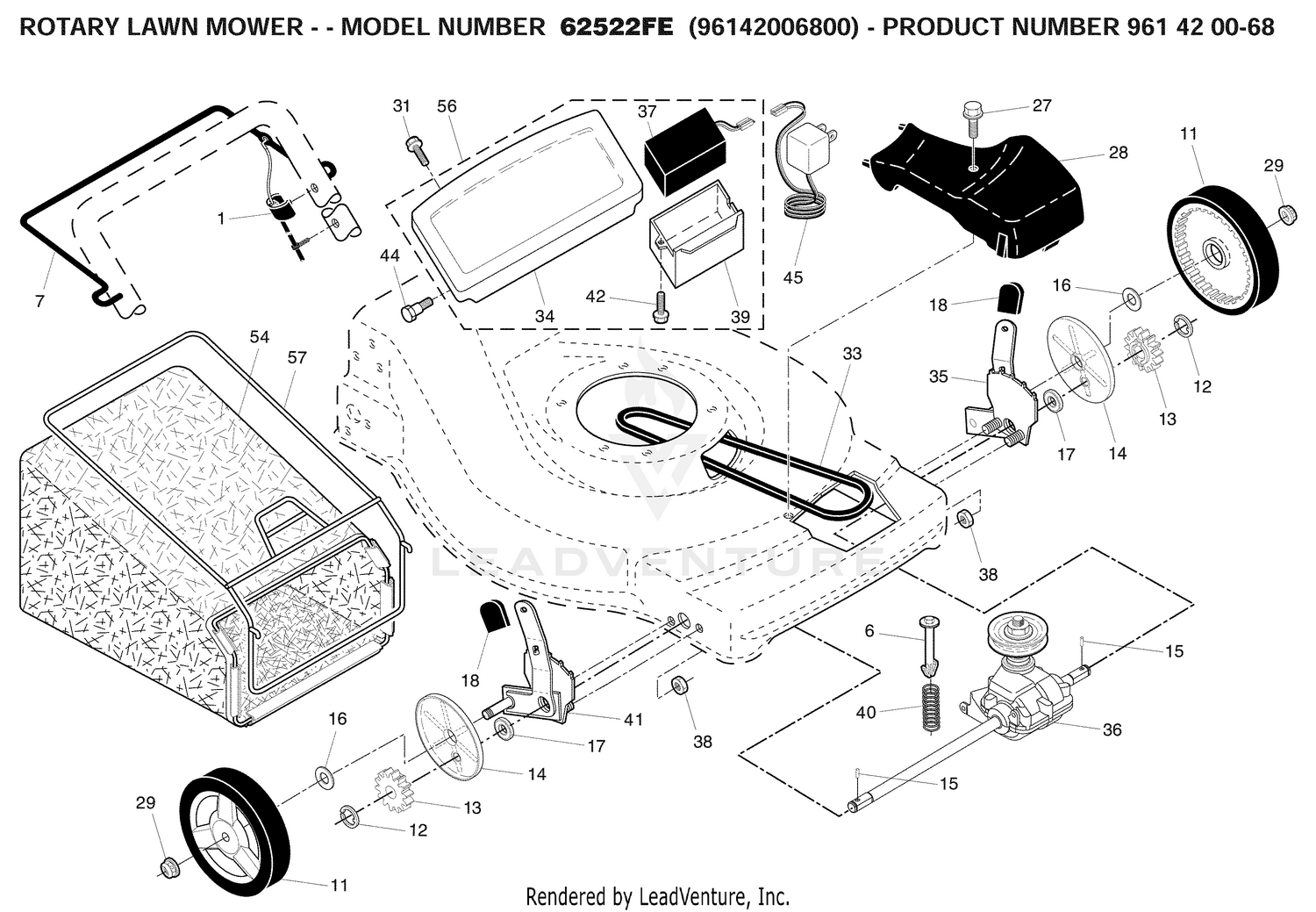

| Ref | Part Number | Description |
|---|
| 1 |
302-55 |
FITTING-GREASE Price: $3.09 |
| 1 |
532194653 |
CONTROL.DRIVE.S/SPEED.FWGD Price: $22.99 |
| 2 |
67-5480 |
SHAFT WITH CLEVIS Price: $194.96 |
| 3 |
67-5500 |
SEAL KIT Price: $144.97 |
| 4 |
67-5470 |
RING-SNAP Price: $8.82 |
| 5 |
67-5460 |
HEAD Price: $251.72 |
| 6 |
532150495 |
SPRING RETAINER Price: $3.99 |
| 6 |
67-5450 |
PISTON Price: $202.80 |
| 7 |
532199093 |
BAIL.CONT.DR.S/S.ROUND.ORG Price: $20.99 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 15 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
532419195 |
COVER.DRIVE.TORUS.B&S.MOLDED Price: $10.99 |
| 29 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 31 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 33 |
532157769 |
KIT.SERVICE.BELT/SPRING. This part replaces 532146527. Price: $14.99 |
| 34 |
532411190 |
PANEL.TRIM.21.FWGD.ES Price: $32.99 |
| 36 |
532415226 |
TRANSMISSION.22.FGD/W/PULLEY Price: $69.99 |
| 37 |
584353901 |
BATTERY.12V.22+RWGD.AGM This part replaces 532189589. Price: $84.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 39 |
532186237 |
BOX.BATTERY.TRIM Price: $5.99 |
| 40 |
532137090 |
SPRING.EXTENSION Price: $4.99 |
| 42 |
817411308 |
SCREW.HWH.13-16X.50 Price: $2.99 |
| 44 |
532175551 |
SCREW.SHOULDER.HH.10X.281X.6 Price: $2.99 |
| 45 |
597186301 |
Chargers This part replaces 532190097. Price: $32.99 |
| 54 |
532425669 |
GBAG.83230247T.SIL.HUSQ.BLU Price: $69.99 |
| 56 |
532191252 |
PANEL.ASM.TRIM/BATTERY.BOX Price: $64.99 |
