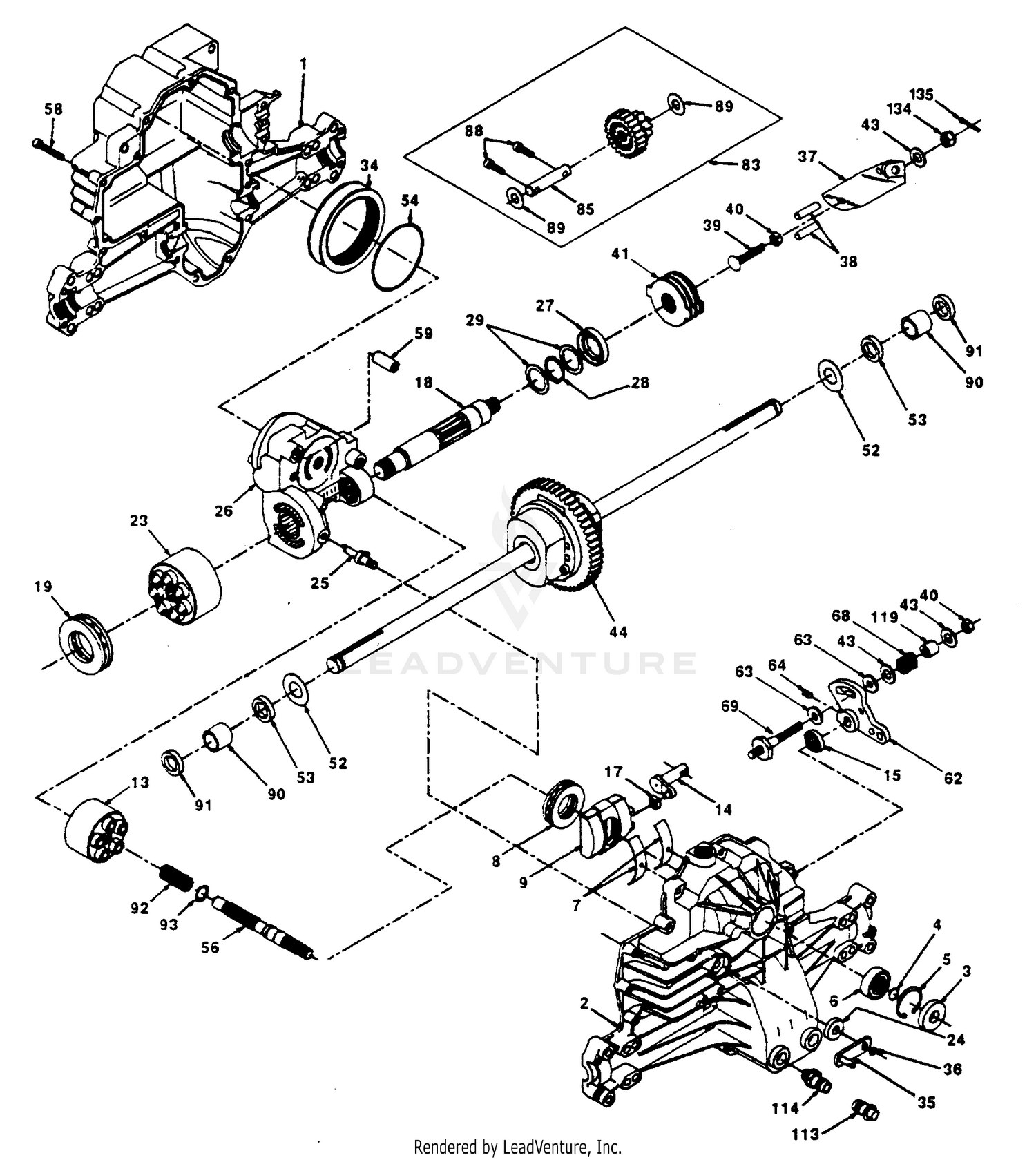

| Ref | Part Number | Description |
|---|
| 1 |
322-2 |
SCREW-HH Price: $0.69 |
| 1 |
532142930 |
Housing, Lower (AYP part number) Price: $199.99 |
| 2 |
3290-238 |
WASHER-LOCK Price: $2.71 |
| 2 |
532142931 |
Assembly, Upper Housing (AYP part number) Price: $329.99 |
| 3 |
24-9200 |
MTG SPACER Price: $7.91 |
| 3 |
532142932 |
Seal, Lip (AYP part number) Price: $9.99 |
| 4 |
24-9260 |
ADJUSTMENT ROD Price: $94.76 |
| 4 |
532142928 |
Ring, Wire Retaining (AYP part number) Price: $3.99 |
| 5 |
3218-2 |
NUT-JAM Price: $0.25 |
| 5 |
532142933 |
Ring, Retaining (AYP part number) Price: $3.99 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
532142934 |
Bearing, Shaft Ball (AYP part number) Price: $44.99 |
| 7 |
24-9370 |
COMPRESSION SPRING Price: $19.51 |
| 7 |
532142935 |
Bearing, Cradle (AYP part number) Price: $19.99 |
| 8 |
24-9220 |
DISCONTINUED Price: Call Us |
| 8 |
532142936 |
Bearing, Thrust 30 x 52 x 13 (AYP part number) Price: $22.99 |
| 9 |
302-22 |
FITTING-GREASE Price: $1.30 |
| 9 |
532142937 |
Swashplate, Variable (AYP part number) Price: $169.99 |
| 10 |
237-21 |
O-RING Price: $0.70 |
| 11 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 12 |
24-9330 |
LH PIVOT ARM WA *R Price: $188.13 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 13 |
532169898 |
KIT CYLINDER #70331 This part replaces 532142938. Price: $109.99 |
| 14 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 14 |
532142939 |
Arm, Trunnion (AYP part number) Price: $159.99 |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
532142940 |
Seal, Lip (AYP part number) Price: $3.99 |
| 16 |
321-6 |
SCREW-HH This part replaces 322-22. Price: $0.25 |
| 17 |
256-116 |
BUSHING-FLANGE Price: $3.52 |
| 17 |
532142941 |
Guide, Slot (AYP part number) Price: $7.99 |
| 18 |
24-9320 |
LH BASE PLATE WA Price: $113.84 |
| 18 |
532142942 |
Shaft, Motor (AYP part number) Price: $199.99 |
| 19 |
24-9240 |
DISCONTINUED Price: Call Us |
| 19 |
532142943 |
Bearing, Thrust 42 x 68 x 16 (AYP part number) Price: $119.99 |
| 20 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 23 |
532142944 |
Block, Cylinder Assembly (AYP part number) Price: $168.73 |
| 24 |
532142945 |
Seal, Lip 10 x 25 x 7 (AYP part number) Price: $3.57 |
| 25 |
532142946 |
Actuator, Bypass (AYP part number) Price: $19.99 |
| 26 |
532142947 |
Center Section Assembly Kit (AYP part number) Price: $299.99 |
| 27 |
532142948 |
Seal, Lip 26 x 42 x 8 (AYP part number) Price: $6.99 |
| 28 |
532142949 |
Ring, Retaining (AYP part number) Price: $3.99 |
| 29 |
532142950 |
Washer 26 x 35 x 1 (AYP part number) Price: $3.99 |
| 34 |
532169893 |
FILTER.#50990 This part replaces 532142951. Price: $84.99 |
| 35 |
532142952 |
Arm, Bypass (AYP part number) Price: $22.99 |
| 36 |
532142953 |
Ring, Retaining (AYP part number) Price: $3.99 |
| 37 |
532122660 |
Arm, Brake Actuator (AYP part number) This part replaces 532142954. Price: $12.99 |
| 38 |
532142955 |
Pin, Actuating (AYP part number) Price: $7.99 |
| 39 |
532142956 |
Bolt 5/16-24 x 1-3/4 (AYP part number) Price: $3.99 |
| 40 |
532142957 |
Locknut, Hex 5/16-24 UNJC (AYP part number) Price: $5.99 |
| 41 |
532142958 |
Brake Rotor/Stator Kit (AYP part number) Price: $74.99 |
| 43 |
532142884 |
Washer 7/16 x 7/8 x .060 (AYP part number) Price: $3.99 |
| 44 |
532142959 |
Differential Assembly (AYP part number) Price: $329.99 |
| 52 |
532142960 |
Washer 3/4 x 1.5 x .03 (AYP part number) Price: $4.99 |
| 53 |
532142961 |
Seal .75 x 1.25 x .250 (AYP part number) Price: $4.99 |
| 54 |
532142962 |
O-Ring .103 x 2.987 ID (AYP part number) Price: $2.87 |
| 56 |
532142963 |
Shaft, Input (AYP part number) Price: $119.99 |
| 58 |
532142964 |
Bolt 1/4-20 x 1.38 (AYP part number) Price: $3.99 |
| 59 |
532142965 |
Pin .5 OD x .43 ID x .750 (AYP part number) Price: $7.99 |
| 62 |
532142966 |
Arm, Control (AYP part number) Price: $27.99 |
| 63 |
532142967 |
Puck, Dampener (AYP part number) Price: $4.99 |
| 64 |
532142920 |
Set Screw (AYP part number) Price: $6.99 |
| 65 |
532142968 |
Bolt #8-32 x .875 (AYP part number) Price: $3.85 |
| 68 |
532142969 |
Spring (AYP part number) Price: $5.99 |
| 69 |
582998501 |
STUD.5/16-24.(50284) This part replaces 532142970. Price: $7.99 |
| 83 |
532142971 |
Jack Shaft Assembly (AYP part number) Price: $199.99 |
| 85 |
532142972 |
Jack Shaft (AYP part number) Price: $64.99 |
| 88 |
532142973 |
Capscrew (AYP part number) Price: $4.99 |
| 89 |
532142974 |
Washer (AYP part number) Price: $3.99 |
| 90 |
532142975 |
Sleeve Bearing (AYP part number) Price: $19.99 |
| 91 |
532169054 |
SEAL LIP.75X1X.158(50941) This part replaces 532142976. Price: $11.99 |
| 92 |
532142977 |
Spring, Block (AYP part number) Price: $3.99 |
| 93 |
532142978 |
Washer, Block Thrust (AYP part number) Price: $4.99 |
| 95 |
532142979 |
Strap, Locking (AYP part number) Price: $17.99 |
| 113 |
532142578 |
Cap Vent (AYP part number) This part replaces 532142917. Price: $34.99 |
| 114 |
532142918 |
Fitting, O-Ring Assembly (AYP part number) Price: $19.99 |
| 119 |
584282801 |
SPACER .32X.59X.50 50278 This part replaces 532142980. Price: $2.99 |
