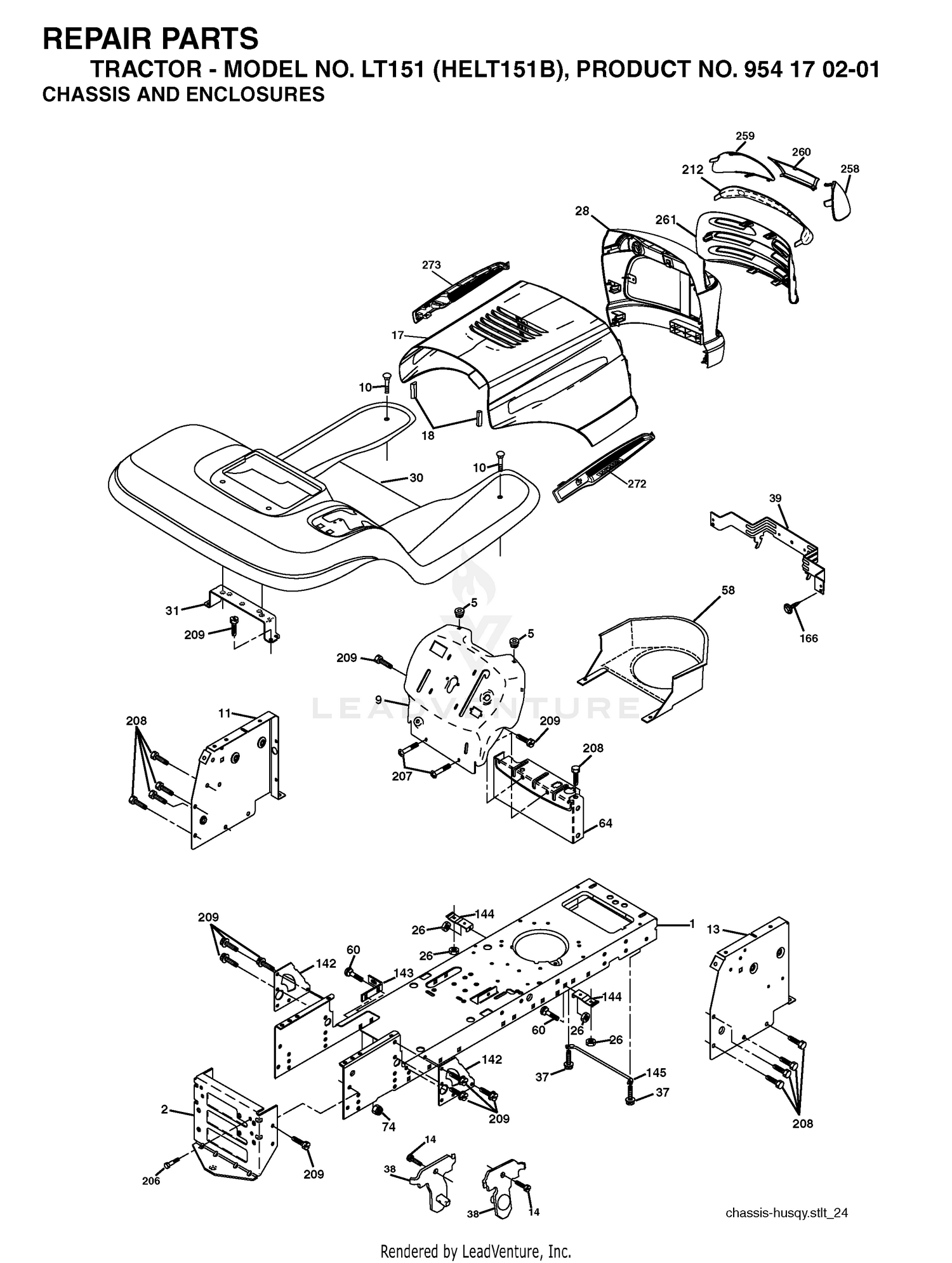

| Ref | Part Number | Description |
|---|
| 1 |
32128-20 |
NUT-HF Price: $0.99 |
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 3 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 4 |
94-7204 |
ROD-PROP, SEAT Price: $37.74 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 5 |
94-7203 |
BRACKET Price: $30.73 |
| 6 |
321-3 |
SCREW-HH Price: $0.28 |
| 7 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 8 |
119-0589 |
ROPS ASM Price: $1,160.80 |
| 9 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 9 |
532171814 |
NEEDS DESCRIPTION Price: Call Us |
| 10 |
112-2923 |
SEAT ASM Price: $290.09 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 12 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 13 |
132-7745 |
FRESH WATER TANK ASM Price: $208.11 |
| 13 |
532181719 |
PANEL DASH RH Price: $8.99 |
| 14 |
106-5052 |
CAP-WATER, FRESH Price: $6.72 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 15 |
132-7706 |
ELBOW-90DEG Price: $10.09 |
| 16 |
108-3289-03 |
PANEL-SEAT, RH Price: $146.39 |
| 17 |
132-7664-03 |
PANEL-SEAT, LH Price: $146.39 |
| 17 |
588251301 |
KIT.HOOD.PNT.STEEL.LASER.SV668 This part replaces 532188893. Price: $49.99 |
| 18 |
532184921 |
BUMPER.HOOD.LARGE.1.75" Price: $4.99 |
| 18 |
94-7085 |
TRIM Price: $54.26 |
| 19 |
108-3290 |
BARRIER-NOISE, SEAT Price: $30.83 |
| 20 |
327-4 |
SCREW-HH Price: $2.20 |
| 21 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 22 |
52-2861 |
WASHER Price: $1.29 |
| 23 |
32128-50 |
NUT-FLANGE Price: $1.78 |
| 24 |
100-7011 |
SPIGOT-90 DEG Price: $17.78 |
| 25 |
33104-035 |
SCREW-HHF Price: $0.88 |
| 26 |
140-6360 |
ARMREST-RH This part replaces 119-0732-03. Price: $54.73 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
140-6359 |
ARMREST LH This part replaces 119-0731-03. Price: $54.73 |
| 28 |
2412-133 |
CLAMP-R Price: $3.19 |
| 28 |
532183538 |
Price: Call Us |
| 29 |
132-7666 |
BARRIER-NOISE, SEAT Price: $28.92 |
| 30 |
100-3524 |
SWITCH-SEAT Price: $57.99 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532191817. Price: $125.54 |
| 31 |
120-0616 |
DECAL-WATER, FRESH Price: $11.84 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 32 |
132-5619-03 |
MOUNT-TANK, EYE WASH Price: $45.79 |
| 33 |
132-7628-03 |
BAND-TANK, EYE WASH Price: $16.45 |
| 34 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 35 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 36 |
132-7627-03 |
CLAMP-BRACKET, FRESH WATER TANK Price: $40.72 |
| 37 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $27.99 |
| 58 |
532187154 |
NEEDS DESCRIPTION Price: Call Us |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 166 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532183548 |
INSERT.LENS.REFLECTIVE Price: $9.99 |
| 258 |
532183379 |
LENS.HUSQ.LASER LT.CLEAR.RH This part replaces 532185214. Price: $8.99 |
| 259 |
532183378 |
LENS.HUSQ.LASER LT.CLEAR.LH This part replaces 532185213. Price: $8.99 |
| 260 |
532442202 |
COVER.LENS.HUSQ.LASER.LT.498 This part replaces 532185216. Price: $11.99 |
| 261 |
532185212 |
Price: Call Us |
| 273 |
532188895 |
VENT.HOOD.LASER. Price: $10.99 |
