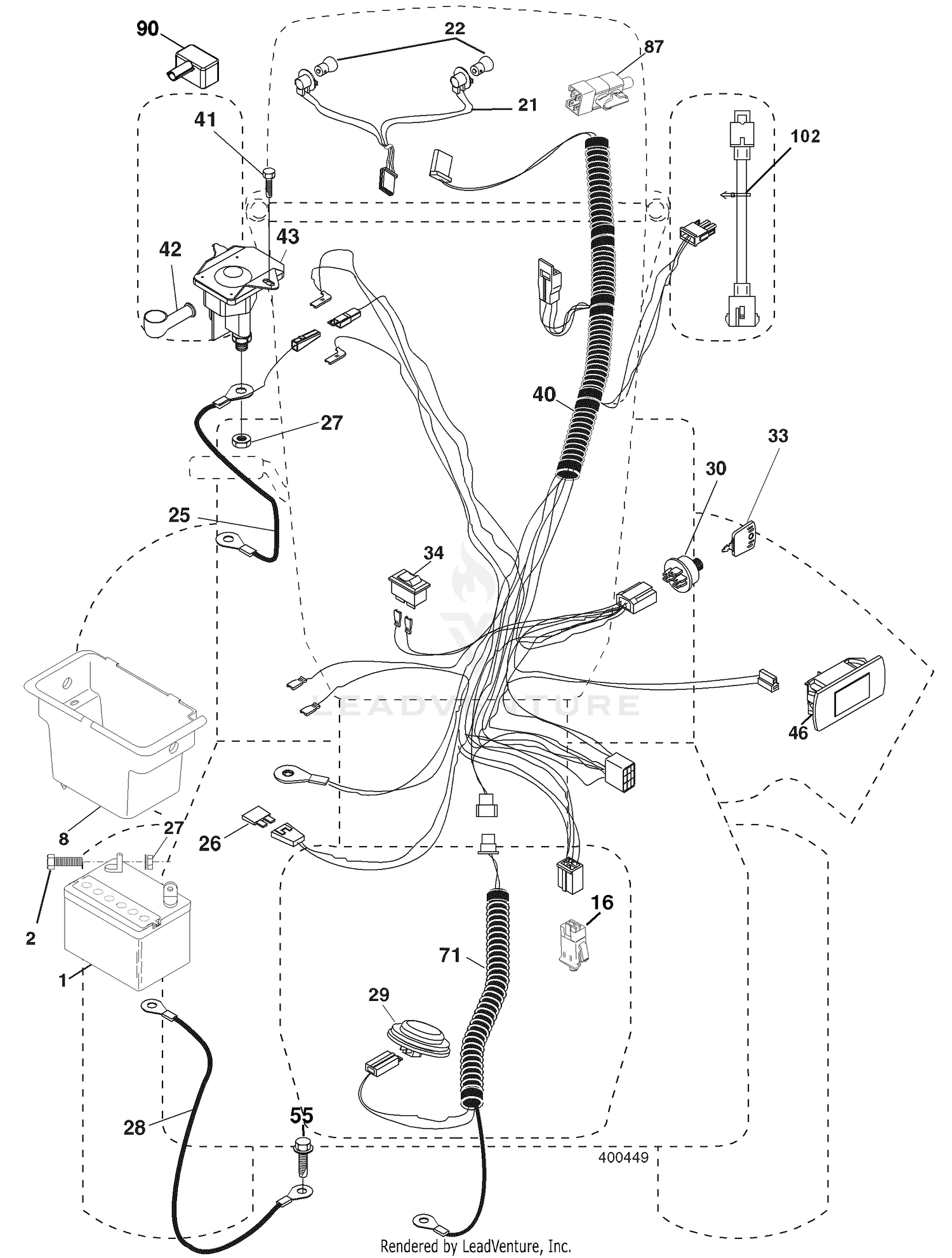

| Ref | Part Number | Description |
|---|
| 1 |
321-10 |
SCREW-HH Price: $1.29 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
69-1780 |
CONTROL VALVE ASM Price: $2,259.71 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
233-42 |
KNOB Price: $12.88 |
| 4 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 5 |
69-7010 |
LEVER-VALVE, LH Price: $101.21 |
| 6 |
69-9140 |
LINK-LEVER, VALVE Price: $15.42 |
| 7 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 8 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $24.99 |
| 9 |
69-9150 |
SHAFT-LEVER, VALVE Price: $17.78 |
| 10 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 11 |
69-7810-03 |
VALVE BRACKET ASM This part replaces 69-7810. Price: $118.11 |
| 12 |
237-79 |
O-RING Price: $5.46 |
| 13 |
340-3 |
FITTING-STRAIGHT Price: $10.42 |
| 14 |
237-22 |
O-RING Price: $2.43 |
| 15 |
340-86 |
FITTING-TEE Price: $35.23 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
99-3577 |
HOSE ASM This part replaces 69-5860. Price: $73.12 |
| 17 |
69-5720 |
TUBE-HYD Price: $83.04 |
| 18 |
69-5700 |
TUBE-HYD Price: $69.94 |
| 19 |
69-5740 |
TUBE-HYD Price: $83.66 |
| 20 |
69-5680 |
TUBE-HYD Price: $58.00 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 21 |
69-5890 |
TUBE-HYD Price: $58.00 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
69-5870 |
TUBE-HYD Price: $50.09 |
| 23 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 24 |
237-42 |
O-RING Price: $2.78 |
| 25 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 25 |
532198893 |
CABLE.START.RED.17.5". Price: $11.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532198885 |
CABLE.BLACK.18"REAR.BA Price: $17.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532400449 |
HARNESS.IGN.CHASS.TEX.REAR.BAT Price: $32.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532401098 |
HARNESS IGN. DASH Price: $69.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $14.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532400725. Price: $4.99 |
