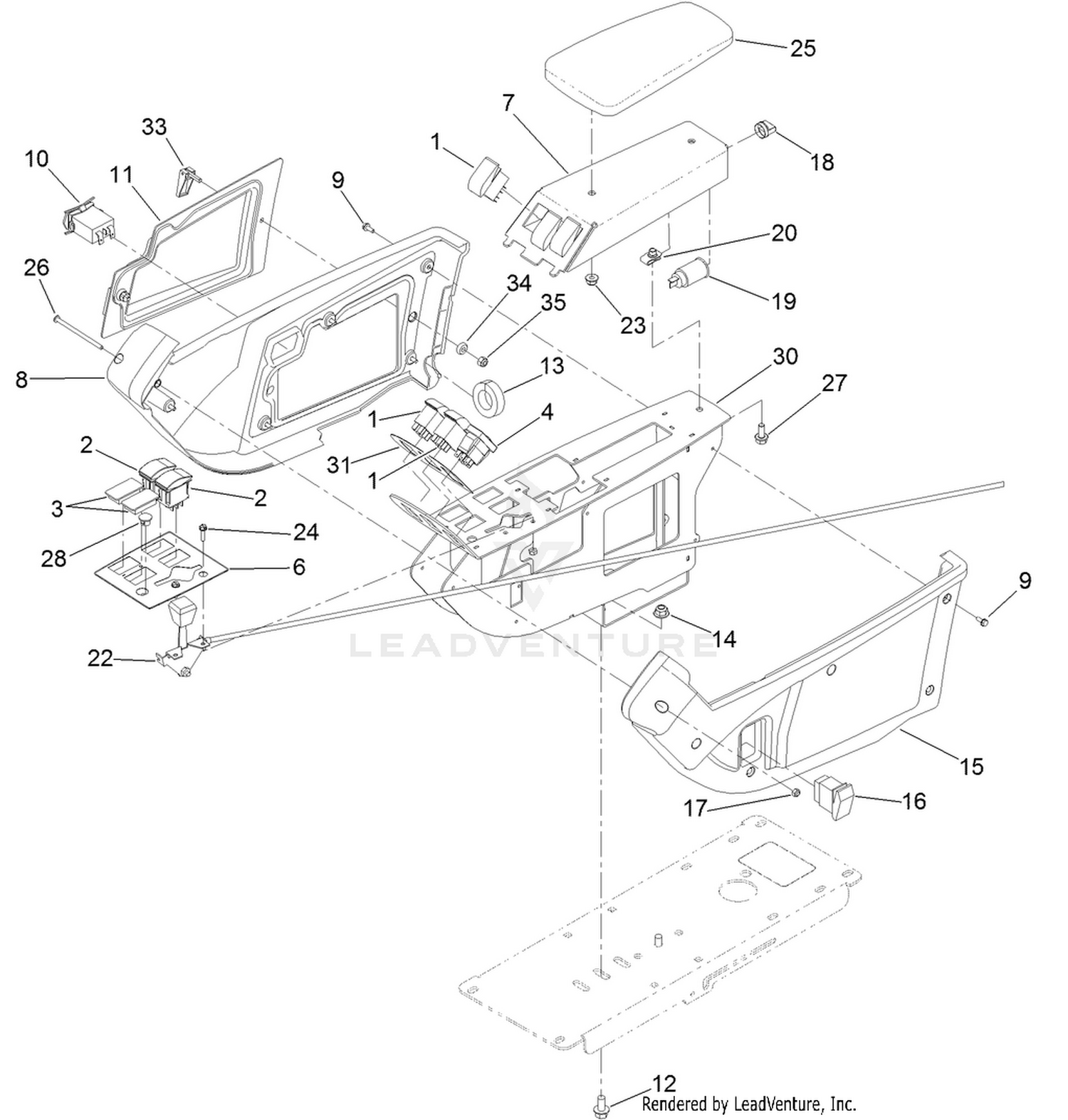

Control Console Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 100-8490 | SWITCH-ROCKER, ON-NONE-ON Price: $33.76 |
| 2 | 100-1535 | SWITCH Price: $84.91 |
| 3 | 99-7420 | PLUG-HOLE Price: $7.64 |
| 4 | 104-9007 | SWITCH-ROCKER Price: $75.33 |
| 6 | 119-0567 | DECAL-CONSOLE, LOWER Price: $20.84 |
| 7 | 117-0777-03 | PANEL-ARM Price: $58.76 |
| 8 | 108-7605 | COVER-RH Price: $55.56 |
| 9 | 32144-112 | SCREW-HWH Price: $0.99 |
| 10 | 120-2244 | HOURMETER This part replaces 1-513374. Price: $48.06 |
| 11 | 108-7616 | PANEL-ACCESS Price: $36.37 |
| 12 | 3234-1 | SCREW-HHF Price: $1.62 |
| 13 | 110-8912 | SEAL-FOAM Price: $2.23 |
| 14 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 15 | 108-7604 | COVER-LH Price: $55.56 |
| 16 | 95-8999 | SWITCH Price: $42.14 |
| 17 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 18 | 99-7416 | CAP Price: $6.64 |
| 19 | 99-7411 | POINT-POWER Price: $30.69 |
| 20 | 112-3306 | NUT Price: $0.82 |
| 22 | 119-0564 | CONTROL-THROTTLE Price: $102.25 |
| 23 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 24 | 3290-321 | SCREW-HWH Price: $3.99 |
| 25 | 108-7602 | REST-ARM Price: $158.43 |
| 26 | 3250-22 | SCREW-PPH Price: $4.09 |
| 27 | 3234-47 | SCREW-HHF Price: $1.79 |
| 28 | 119-5329 | PLUG-HOLE Price: $1.22 |
| 30 | 117-0770-03 | ARM-CONSOLE, FRONT Price: $192.29 |
| 31 | 119-0568 | DECAL-CONSOLE, UPPER Price: $15.79 |
| 33 | 106-6777 | HANDLE-LATCH, SWELL Price: $22.20 |
| 34 | 106-6778 | BUSHING-LATCH, SWELL Price: $1.28 |
