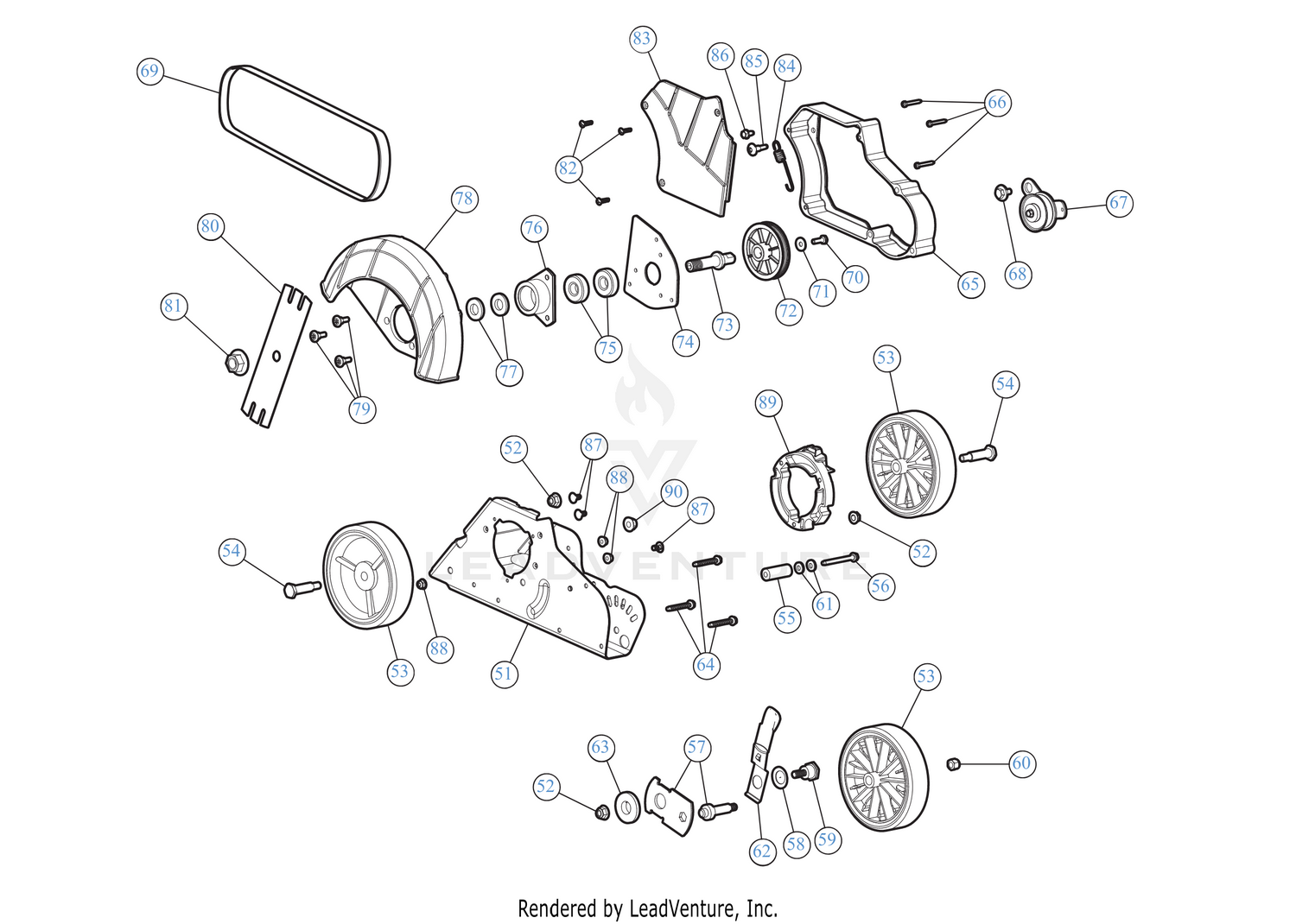

General Assembly — Parts Catalog

Parts (39)

Ref	Part Number	Description
51	753-06547	FRAME Price: $43.79
52	712-04065	NUT Price: $3.68
53	734-04261	WHEEL 5-1.5 GRAY Price: $18.51
54	938-0373	SHOULDER SCREW Price: $8.45
55	750-04783	SPACER Price: $3.36
56	710-1206	SCREW 1/4-20 x 2.375 Price: $6.20
57	687-02582S	PIVOT ARM Price: $3.43
58	736-0741	BELL WASHER Price: $3.99
59	738-1172	SHOULDER SCREW .75 X.50 X3/8-16 Price: $5.01
60	712-0130	HEX NUT INS L-3/8-16 Price: $3.61
61	750-04929	SPACER Price: $3.88
62	687-02051	Lever Ass'y This part replaces 987-02051. Price: $8.27
63	741-04242	HEIGHT ADJUSTMENT BEARING Price: $6.57
64	710-1026	SCREW 1/4-20 x 1.750 Price: $5.94
65	753-06556	SPACER Price: $2.83
66	753-06559	SCREW 8-16X1.25 Price: $2.32
67	753-05540	IDLER PULLEY ASSEMBLY Price: $33.52
68	738-0930	SHOULDER SCREW .560X.165: 5/16-18 Price: $6.07
69	754-04149	BELT Price: $26.86
70	710-3015	SCREW 1/4-20X.75 GR5 Price: $3.65
71	736-0270	SPRING WASHER BELL Price: $3.63
72	756-04087B	PULLEY Price: $11.10
73	753-05543	BLADE SPINDLE Price: $18.96
74	787-01505	SPINDLE MOUNT PLATE Price: $6.17
75	741-04547	BALL BEARING Price: $8.29
76	718-04012	BEARING CUP Price: $19.55
77	736-04088	FLAT WASHER .635 x 1.24 x .181 Price: $3.90
78	731P05064	EDGER BLADE GUARD (W/LABEL) Price: $23.87
79	738-0706D	SHOULDER SCREW .375X.280:1/4-14 Price: $3.89
80	781-0080-0637	EDGER BLADE Price: $7.95
81	712-0417A	HEX NUT Price: $6.50
82	710-04194	SCREW 8-16 x 3/4 Price: $3.66
83	731-05822	BELT COVER Price: $9.85
84	753-06562	SPRING Price: $2.83
85	753-06563	BOLT 1/4-20 Price: $2.32
86	710-0599	SCREW 1/4-20 X.500 Price: $3.86
87	710-05177	CARRIAGE BOLT 1/4-20X.50" Price: $4.26
88	712-04064	FLANGE LOCK NUT Price: $3.64
89	753-06566	SPACER Price: $5.34
