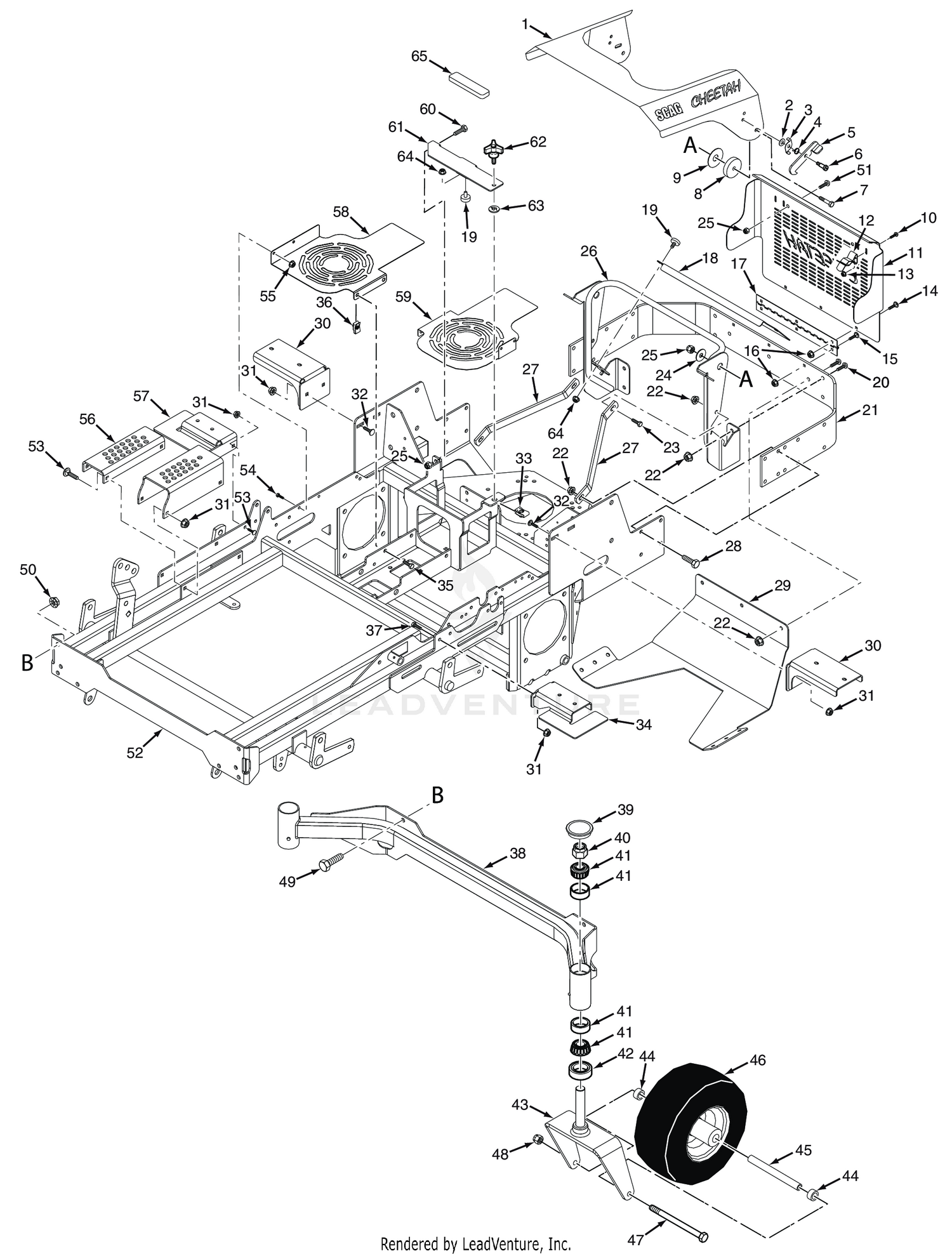

| Ref | Part Number | Description |
|---|
| 1 |
462721 |
HOOD ASSY, W/ DECALS, SCZ This part replaces 462265. Price: Call Us |
| 1 |
462916 |
Hood Assembly w/Decals - Kohler ECV860 Price: Call Us |
| 2 |
04040-05 |
Flatwasher, 3/8 (.406 x .812 x .065) Price: Call Us |
| 3 |
424634 |
Lock, Hood Latch Price: Call Us |
| 4 |
483507 |
Spring, Hood Latch Price: Call Us |
| 5 |
424633 |
Latch, Hood Price: Call Us |
| 6 |
04009-07 |
Bolt, Shoulder 5/16-18 x 1/2" Price: Call Us |
| 7 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 8 |
43740 |
Spacer, Hood Price: Call Us |
| 9 |
483471 |
Disc, Anti-Friction Price: Call Us |
| 10 |
04010-32 |
SCR,#8-32 X .625 HX WSHR HD SLOTTED This part replaces 04010-30. Price: Call Us |
| 11 |
425995 |
Belt Guard, Rear Price: Call Us |
| 11 |
425996 |
Belt Guard, Rear - Kohler Price: Call Us |
| 12 |
484190 |
Spring Clip Price: Call Us |
| 13 |
04021-17 |
Nut, Elastic Stop #8-32 Price: Call Us |
| 14 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 15 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 16 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 17 |
484143 |
Hinge, Belt Cover Price: Call Us |
| 18 |
425677 |
ROPS Heatshield - Kohler Price: Call Us |
| 18 |
427781 |
ROPS Heatshield - Briggs & Stratton Price: Call Us |
| 19 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 20 |
04104-01 |
Button Head Capscrew, Torx 3/8-16 x 1" Price: Call Us |
| 21 |
425575 |
BUMPER, REAR - SCZ Price: Call Us |
| 22 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 23 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 24 |
04041-11 |
Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge Price: Call Us |
| 25 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 26 |
452223 |
Mount Weldment, Hood Price: Call Us |
| 26 |
452267 |
Mount Weldment, Hood - Kohler Price: Call Us |
| 27 |
425408 |
Brace, Hood Support Price: Call Us |
| 28 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 29 |
425579 |
SCZ Skid Plate, Kawasaki FX Price: Call Us |
| 29 |
426806 |
SCZ Skid Plate, Kohler Price: Call Us |
| 30 |
425350 |
Mounting Bracket, Fuel Tank Rear Price: Call Us |
| 31 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 32 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 33 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 34 |
425573 |
Mounting Bracket, Fuel Tank Front Price: Call Us |
| 35 |
04001-14 |
Capscrew, Hex Head 1/4-20 x 1" Price: Call Us |
| 36 |
04110-01 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 37 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 38 |
452193 |
Caster Support Weldment, 61V Price: Call Us |
| 38 |
452194 |
Caster Support Weldment, 72V Price: Call Us |
| 39 |
484195 |
Cap, Grease Price: Call Us |
| 40 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 41 |
48668 |
Bearing Set Price: Call Us |
| 42 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 43 |
451416 |
Yoke Weldment, Caster (61V & 72A/VS) Price: Call Us |
| 44 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 45 |
43583 |
Sleeve, Caster Wheel (61V, 72A/VS) Price: Call Us |
| 46 |
48114-10 |
Fitting, Grease Price: Call Us |
| 46 |
482621 |
Bearing, Tapered Roller Price: Call Us |
| 46 |
9278 |
Wheel Assy, 61V, 72V (Incl. 20, 54, 55) Price: Call Us |
| 47 |
04001-167 |
Bolt, Hex Head 1/2-13 x 9-1/2" (61V & 72A/VS) Price: Call Us |
| 48 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 49 |
04001-28 |
BOLT, HEX HEAD, 7/16-14 X 1-1/4 Price: Call Us |
| 50 |
04117-05 |
Nut, 7/16-14 Flange Elastic Stop Price: Call Us |
| 51 |
04108-03 |
Capscrew, Button Head 3/8-16 x 1-1/4" Price: Call Us |
| 52 |
462563 |
Mainframe Assy. w/Decals Price: Call Us |
| 53 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 53 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 54 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 55 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 56 |
452408 |
Adjustment Bracket, Lower Cut Height Price: Call Us |
| 57 |
425574 |
Adjustment Bracket, Upper Cut Height Price: Call Us |
| 58 |
425300 |
Fan Cover, RH Price: Call Us |
| 59 |
425299 |
Fan Cover, LH Price: Call Us |
| 60 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 61 |
425422 |
Cover, Battery Box Price: Call Us |
| 62 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
| 63 |
04024-02 |
Nut, Push-On - 3/8" Dia. Price: Call Us |
| 64 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
