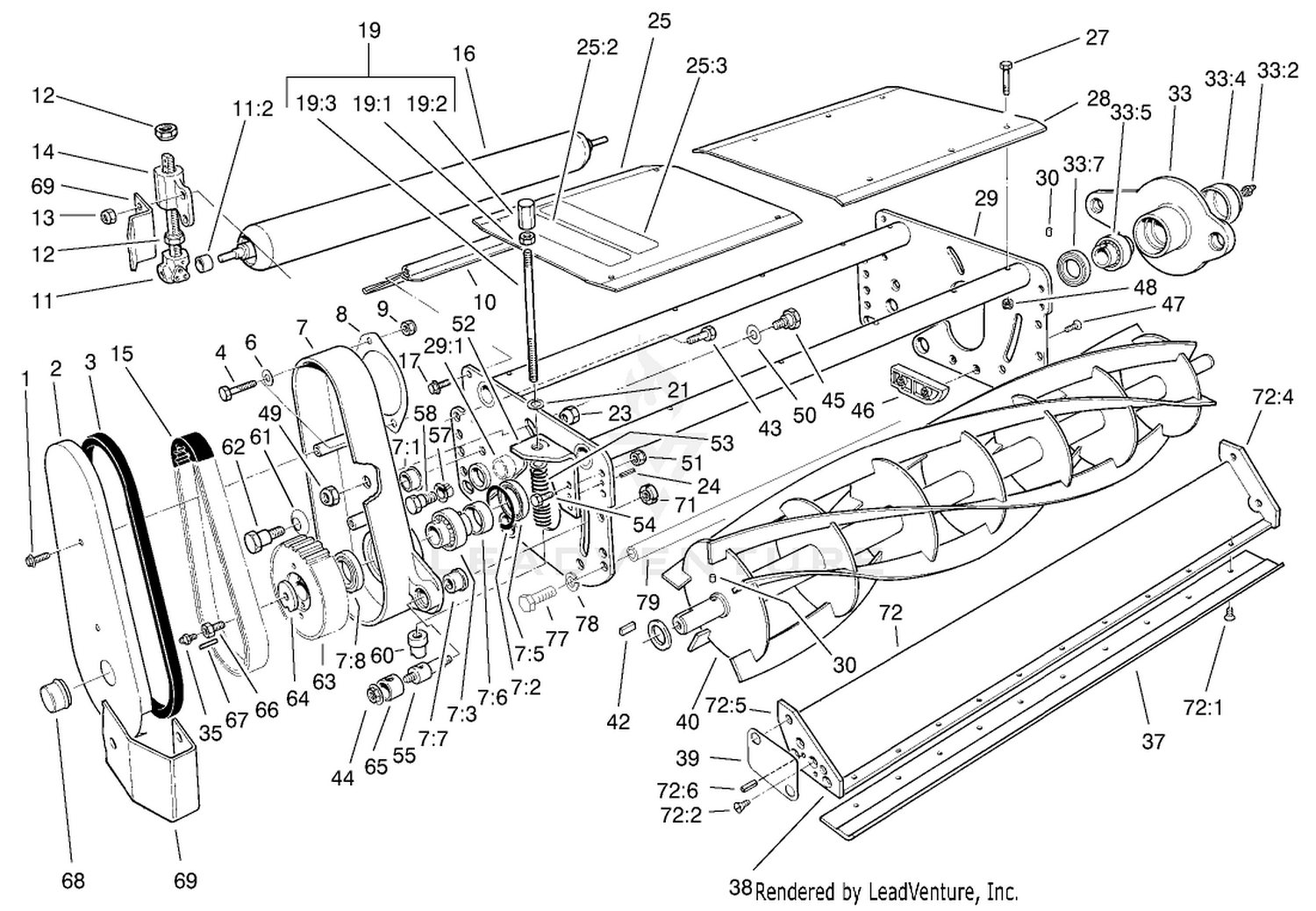

| Ref | Part Number | Description |
|---|
| 1 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 2 |
75-7580-01 |
COVER-PLATE, RH Price: $41.66 |
| 3 |
47-7170 |
GASKET-COVER Price: $22.96 |
| 4 |
324-6 |
SCREW-HH Price: $0.81 |
| 6 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 7 |
13-7759 |
HOUSING AND BEARING ASM Price: $475.52 |
| 8 |
48-9050 |
SHIELD-PLATE, DRIVE Price: $15.38 |
| 9 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 10 |
75-7680-01 |
DEFLECTOR-GRASS ASM Price: $93.26 |
| 11 |
84-6160 |
COLLAR AND BUSHING ASM Price: $118.96 |
| 12 |
59-5820 |
NUT-CONE Price: $12.82 |
| 13 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 14 |
59-5770-01 |
HOUSING-ADJUSTMENT Price: $71.35 |
| 15 |
47-7160 |
BELT Price: $26.00 |
| 16 |
59-5630 |
ROLLER ASM Price: $479.63 |
| 17 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 19 |
13-9399 |
ADJUSTING SCREW ASM Price: $175.58 |
| 21 |
257-5 |
WASHER-THRUST Price: $1.83 |
| 23 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 24 |
32121-2 |
PIN-ROLL, SLOTTED Price: $0.25 |
| 25 |
100-9993 |
FRONT COVER ASM Price: $44.16 |
| 27 |
3234-34 |
SCREW-HHF Price: $0.49 |
| 28 |
59-5830-01 |
COVER-FRAME Price: $35.24 |
| 29 |
14-0829 |
REEL FRAME ASM Price: $887.17 |
| 30 |
48-8880 |
PIN-DOWEL Price: $1.70 |
| 33 |
13-7749 |
HOUSING AND BEARING ASM Price: $281.00 |
| 35 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 37 |
76-3620 |
BEDKNIFE (FAIRWAY) Price: $99.28 |
| 38 |
77-4340-01 |
BEDBAR-11 BLADE Price: $563.64 |
| 39 |
76-3580 |
SPACER-BEDBAR AND SIDEPLATE Price: $0.68 |
| 40 |
133-0140 |
REEL- 8IN FWY, (30) 5 BLD This part replaces 14-7419. Price: $607.88 |
| 42 |
75-7570 |
KEY Price: $7.30 |
| 43 |
325-7 |
SCREW-HH Price: $1.53 |
| 44 |
32128-15 |
NUT-LOCK, FLANGE Price: $3.86 |
| 45 |
62-6080 |
BOLT-SHOULDER Price: $12.08 |
| 46 |
77-4810 |
BLOCK-DEFLECTOR Price: $7.47 |
| 47 |
32108-101 |
SCREW-FH Price: $0.47 |
| 48 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 49 |
3296-28 |
NUT-LOCK, NI Price: $0.61 |
| 50 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 51 |
3296-26 |
NUT-LOCK, NI Price: $2.99 |
| 52 |
72-0460-01 |
BRACKET-LH Price: $36.36 |
| 53 |
92-9231 |
SPRING-COMPRESSION Price: $25.87 |
| 54 |
323-7 |
SCREW-HH Price: $0.65 |
| 55 |
72-0440 |
PIN-ADJ Price: $36.30 |
| 57 |
256-292 |
BUSHING-FLANGE, NI Price: $2.54 |
| 58 |
84-6090 |
BOLT-SHOULDER Price: $11.86 |
| 60 |
72-0410 |
STAND-OFF Price: $13.71 |
| 61 |
3290-440 |
WASHER-BELLEVILLE Price: $7.46 |
| 62 |
48-9020 |
BOLT-SHOULDER Price: $16.08 |
| 63 |
47-7140 |
PULLEY-DRIVEN Price: $290.32 |
| 64 |
59-6150 |
WASHER-PULLEY Price: $15.54 |
| 65 |
72-0420 |
CLAMP-TUBE Price: $23.61 |
| 66 |
59-6190 |
CAPSCREW-SHAFT, REEL Price: $22.17 |
| 67 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 68 |
59-7490 |
PLUG-FITTING, GREASE Price: $3.54 |
| 69 |
72-0470-01 |
GUARD Price: $39.91 |
| 71 |
82-9390 |
NUT-SPECIAL Price: $10.42 |
| 77 |
325-4 |
SCREW-HH Price: $0.95 |
| 78 |
3253-7 |
WASHER-LOCK Price: $0.27 |
