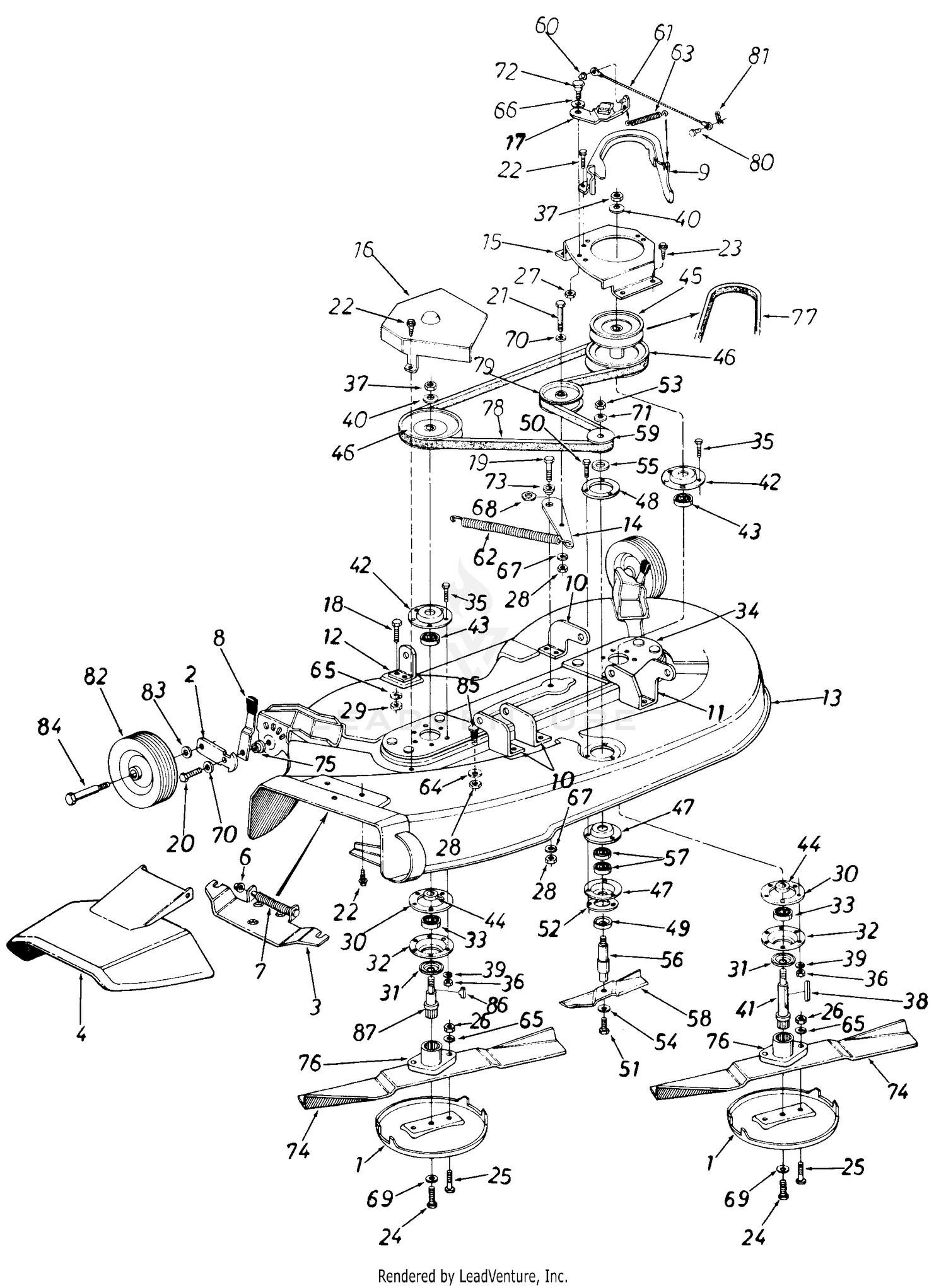

| Ref | Part Number | Description |
|---|
| 1 |
07919 |
PLATE-ANTI SCALP Not Available Price: |
| 2 |
10937 |
BAR-WHEEL PIVOT Not Available Price: |
| 3 |
11396 |
ADAPTER Not Available Price: |
| 4 |
11574 |
Chute Cover Ass'y. Price: Call Us |
| 6 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 7 |
732-0261 |
TORSION SPRING Not Available Price: |
| 8 |
14082 |
LEVER ASSEMBLY-SPRING Not Available Price: |
| 9 |
14258 |
BELT GUARD Not Available Price: |
| 10 |
16175 |
BRACKET-DECK HANGER Not Available Price: |
| 11 |
16176 |
BRACKET-BU Not Available Price: |
| 12 |
16180 |
BRACKET-DE Not Available Price: |
| 14 |
16331 |
BRACKET-ID Not Available Price: |
| 15 |
16333 |
COVER-PULL Not Available Price: |
| 16 |
16334 |
COVER-PULLEY (RH) Not Available Price: |
| 17 |
16337 |
ARM ASSEMBLY-S Not Available Price: |
| 18 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 19 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 20 |
710-0191 |
Hex Bolt 3/8-24 x 1.25" Lg. Price: $4.02 |
| 21 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 This part replaces 710-0459. Price: $6.50 |
| 22 |
710-0599 |
Hex Wash. S-Tapp Scr. 1/4-20 x .50 Price: $3.86 |
| 23 |
710-0726 |
Hex Wash. Hd. Tapp Scr. 5/16-18 x .75" Lg. Price: $3.82 |
| 24 |
710-0696 |
HHCS:3/8-24:.875:GR8:STD This part replaces 710-0877. Price: $5.94 |
| 25 |
710-0888 |
Hex Bolt Special 5/16-24 x 1.0" Lg. Price: $3.86 |
| 26 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 27 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 28 |
712-0241 |
Hex Nut 3/8-24 Thd.* Price: $3.86 |
| 29 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 30 |
09164A-0637 |
Plate Deck Reinforcement Not Available This part replaces 09164. Price: |
| 31 |
13703 |
SHIELD-BRG Not Available Price: |
| 32 |
15296A |
Open Brg. Housing 1.85 I.D. This part replaces 15296. Price: $7.91 |
| 33 |
741P0919B |
BALL BEARING This part replaces 741-0919. Price: $18.90 |
| 34 |
16349 |
SPINDLE MOUNTING PLATE \ ASS'Y. Not Available Price: |
| 35 |
710-0888 |
Hex Bolt Special 5/16-24 x 1.0" Lg. Price: $3.86 |
| 36 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 37 |
712-0318 |
HEX JAM NUT 5/8-18 Not Available Price: |
| 38 |
714-0168 |
SQUARE KEY 3/16X2.25 Not Available Price: |
| 39 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 40 |
736-0317 |
Bell-Wash. .630" I.D. x 1.25" O.D. Price: $6.99 |
| 41 |
738-0632 |
SPINDLE-BL Not Available Price: |
| 42 |
08253B |
Bearing Housing This part replaces 08253. Price: $17.97 |
| 43 |
741P0919B |
BALL BEARING This part replaces 741-0919. Price: $18.90 |
| 44 |
750-0456 |
Spacer 1.0" O.D. x .790" I.D. Price: $3.90 |
| 45 |
756-0329 |
PULLEY Not Available Price: |
| 46 |
756-0470 |
V PULLEY .79 I.D. x 6.50 O.D. Not Available Price: |
| 47 |
15319B |
BEARING HOUSING Not Available This part replaces 15319. Price: |
| 48 |
16348B |
Reinforcement Plate This part replaces 16348. Price: $8.03 |
| 49 |
16400 |
SHIELD-BEA Not Available Price: |
| 50 |
910-0195 |
HEX SCREW 1/4-28 x .62 Not Available This part replaces 710-0567. Price: |
| 51 |
710-0696 |
HHCS:3/8-24:.875:GR8:STD This part replaces 710-0877. Price: $5.94 |
| 52 |
16348B |
Reinforcement Plate This part replaces 16406. Price: $8.03 |
| 53 |
712-3029 |
NUT This part replaces 712-0922. Price: $6.01 |
| 54 |
736-0105 |
Bell-Wash. .400" I.D. x .88" O.D. Price: $3.96 |
| 55 |
736-0162 |
Fl-Wash. .635" I.D. x 1.04" O.D. Price: $3.86 |
| 56 |
938-0627 |
BLADE SPINDLE Not Available This part replaces 738-0627. Price: |
| 57 |
941-0155 |
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. This part replaces 741-0155. Price: $22.09 |
| 60 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 61 |
727-0290A |
Brake Cable 11.75" Lg. This part replaces 727-0290. Price: $10.96 |
| 62 |
932-0121 |
Extension Spring .73" O.D. x 4.31 0 Lg. This part replaces 732-0121. Price: $13.21 |
| 63 |
932-0395 |
EXTENSION SPRING Not Available This part replaces 7320395. Price: |
| 64 |
736-0105 |
Bell-Wash. .400" I.D. x .88"O.D. Price: $3.96 |
| 65 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 66 |
936-0141 |
Spr. Wash. 7/16" I.D. This part replaces 736-0141. Price: $6.01 |
| 67 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 68 |
736-0174 |
Spring Wash. .625" I.D. x .885" O.D. Price: $5.94 |
| 70 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 71 |
736-0253 |
Bell-Wash. .505" I.D. x 1.00" O.D. Price: $3.58 |
| 72 |
738-0140 |
Shld. Bolt .437" Dia. x .180 Price: $4.93 |
| 73 |
938-0347 |
Shld. Spacer .625" I.D. This part replaces 738-0347. Price: $8.93 |
| 75 |
748-0279 |
SHOULDER SPACER Not Available Price: |
| 76 |
748-0300 |
Blade Adapter Not Available Price: |
| 77 |
954-0229 |
V-BELT 1/2 x 52 Not Available This part replaces 754-0229. Price: |
| 79 |
956-0365 |
Fl-ldler w/Flanges 3.50" O.D. This part replaces 756-0365. Price: $44.73 |
| 80 |
911-0701 |
Clevis Pin 1/4" Dia. x .53" Lg. This part replaces 711-0701. Price: $5.99 |
| 81 |
714-0104 |
Intern. Cotter Pin 5/16" Dia. Price: $3.90 |
| 82 |
734-0974 |
Deck Wheel 6.0" x 1.38 Price: $19.06 |
| 83 |
736-0105 |
Bell-Wash. .400" I.D. x .88" O.D. Price: $3.96 |
| 84 |
938-0455 |
SHOULDER SCREW Not Available This part replaces 738-0455. Price: |
| 86 |
714-0122 |
Sq. Key 3/16" x 3/16" x .75" Price: $3.07 |
