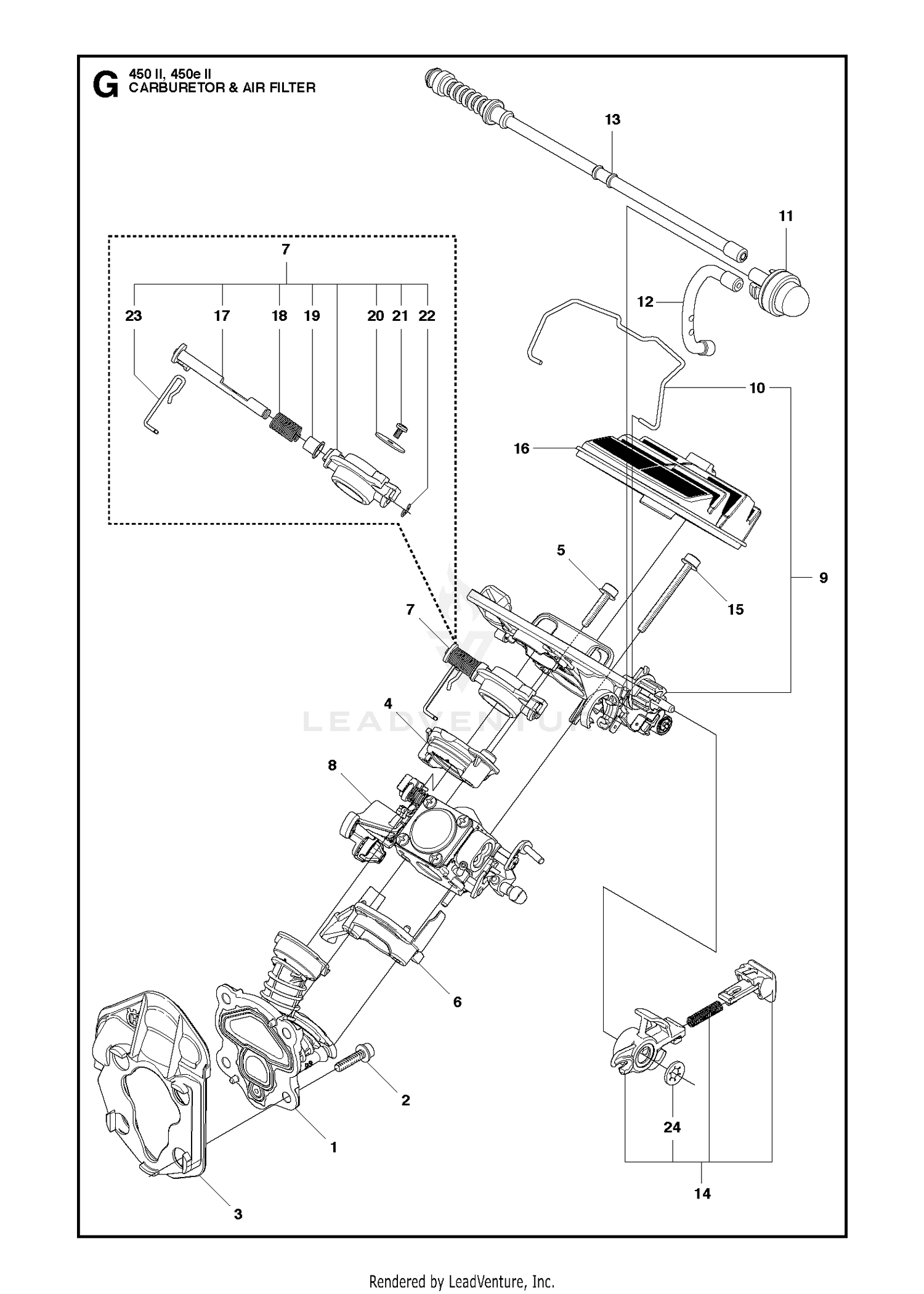

CARBURETOR & AIR FILTER
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544082301 | INLET PIPE ASSY Price: $37.99 |
| 2 | 503200216 | SCREW Price: $3.99 |
| 3 | 544083801 | INTERMEDIATE WALL Price: $5.99 |
| 4 | 544084001 | FLANGE Price: $3.99 |
| 5 | 503210725 | SCREW Price: $3.99 |
| 6 | 544084101 | FLANGE Price: $3.99 |
| 7 | 544148201 | THROTTLE Price: $27.99 |
| 10 | 544231401 | SHACKLE Price: $11.99 |
| 14 | 544359902 | CONTROL Price: $7.99 |
| 15 | 503210750 | SCREW Price: $2.99 |
| 17 | 502081001 | SHAFT ASSY Price: $14.99 |
| 18 | 502081101 | SPRING Price: $3.99 |
| 19 | 502080801 | COLLAR Price: $4.99 |
| 20 | 502081201 | VALVE Price: $6.99 |
| 21 | 503481801 | SCREW Price: $2.99 |
| 22 | 537385201 | CLIP Price: $2.99 |
| 23 | 502080901 | ROD Price: $11.99 |
| 24 | 735583000 | LOCK WASHER Price: $3.99 |
