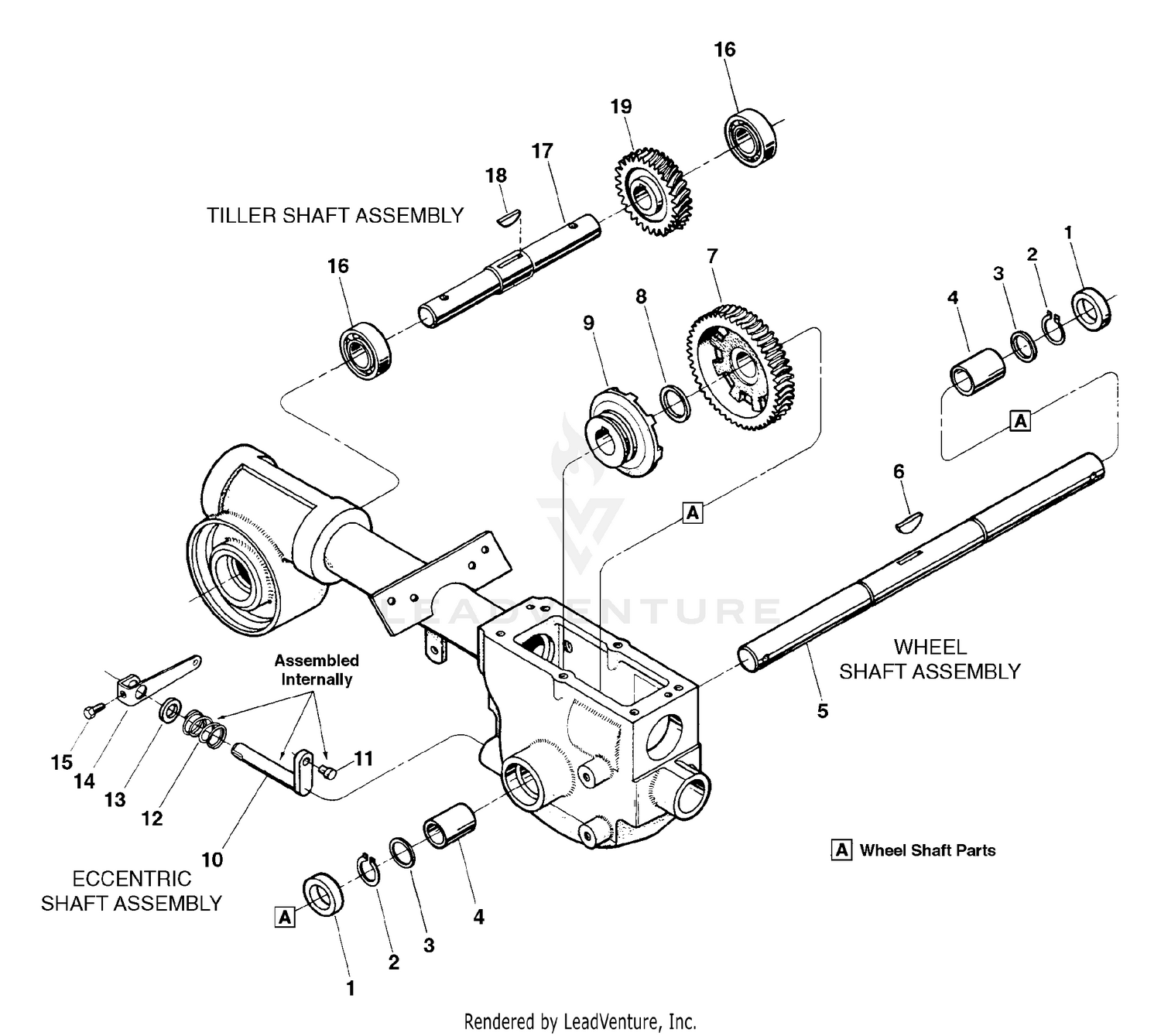

| Ref | Part Number | Description |
|---|
| 1 |
921-04031 |
Oil Seal, 1.0 x 1.499 This part replaces 721-04031. Price: $9.58 |
| 2 |
716-04104 |
Retaining Ring This part replaces 1909950. Price: $3.85 |
| 3 |
736-04309 |
Washer, 1.375 x 1.015 x .062 This part replaces GW-1166-1. Price: $3.85 |
| 4 |
941-04300 |
Bushing, 1.25 x 1 x .005 x 1.5 This part replaces GW-1086. Price: $15.25 |
| 5 |
753-05579 |
KIT-SERVICE WHEEL SHAFT(711-04091) Not Available This part replaces GW-2494. Price: |
| 6 |
GW-9373 |
Hi-Pro Key, 1/4 x 1-5/16 Price: $8.81 |
| 7 |
GW-20914 |
Wheel Drive Worm Gear (cast-iron) Price: $170.71 |
| 8 |
GW-9935 |
Shim, 6 I.D. x 1.468 O.D. x .062 Price: $3.15 |
| 9 |
GW-20712 |
Wheel Drive Clutch (cast-iron) Price: $78.19 |
| 10 |
611-04002 |
Eccentric Shaft Price: $71.52 |
| 11 |
738-04448 |
PIN This part replaces GW-1442. Price: $7.14 |
| 12 |
GW-9055 |
Spring Not Available Price: |
| 13 |
921-04034 |
Oil Seal, .625 x 1.0 This part replaces 721-04034. Price: $9.37 |
| 14 |
786-04001 |
Eccentric Shaft Lever Price: $38.86 |
| 15 |
710-3013 |
Hex Hd. Screw, 1/4-20 x 1/2 Specify GRADE 5 if ordering part locally. Price: $4.02 |
| 16 |
941-3037 |
PTO SHAFT BALL BEARING This part replaces 741-3037. Price: $38.73 |
| 17 |
911-04130 |
TILLER TINE SHAFT Not Available This part replaces 711-04130. Price: |
| 18 |
GW-1104 |
Woodruff Key, 1/4 x 1-1/4 Price: $8.32 |
