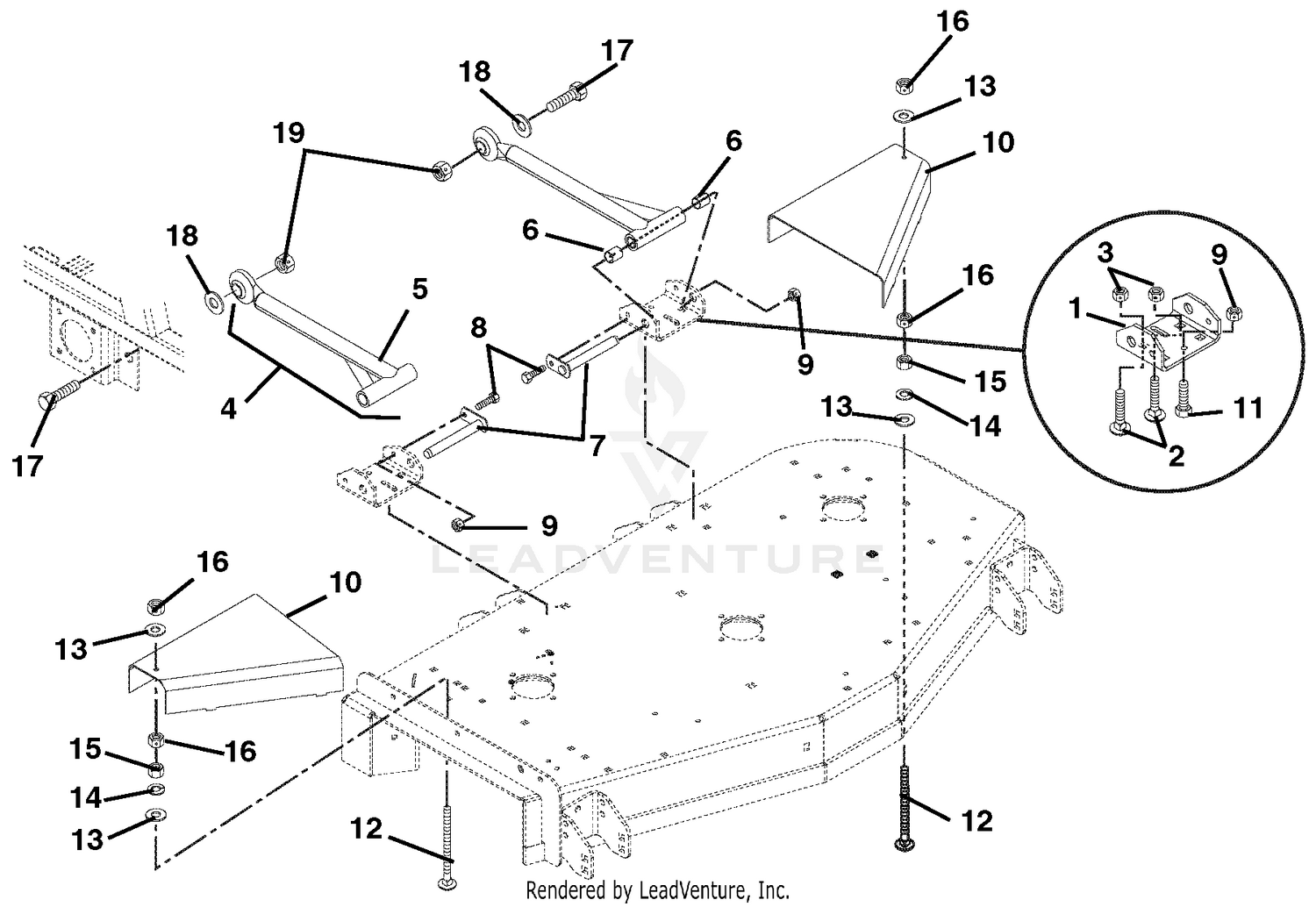

| Ref | Part Number | Description |
|---|
| 3 |
06519700 |
NUT-LK-CTR-JAM .50-13 YWZC(ND) Price: $2.45 |
| 5 |
09247951 |
WMT, MOWER MTG ARM - BLACK Price: $201.95 |
| 6 |
05435900 |
BRG, .750 X .875 X 1.000 Price: $5.95 |
| 7 |
09238900 |
WELDMENT, MOWER MTG. PIN Price: $55.45 |
| 8 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 9 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 10 |
09240851 |
GUARD, PULLEY LH This part replaces 09240853. Price: $56.45 |
| 11 |
06200312 |
BLT, RHSN .38-16X.750 G5 ZCC This part replaces 06223900. Price: $1.45 |
| 12 |
06225300 |
BLT-RDHDSQNKFTH.312-18X3.50YWZ Price: $3.45 |
| 13 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 14 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 15 |
06500938 |
NUT, HEX .312-18 ZCC This part replaces 06529200. Price: $0.95 |
| 16 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45 |
| 17 |
05969500 |
BLT-HEX .875-9X2.75 GR5 YWZC Price: $7.45 |
| 18 |
06401207 |
WSHR- FLT .890X1.500X.119 ZCC This part replaces 06444700. Price: $3.95 |
| 09240751 |
GUARD, |
PULLEY RH This part replaces 09240753. Price: $36.95 09240751 |
