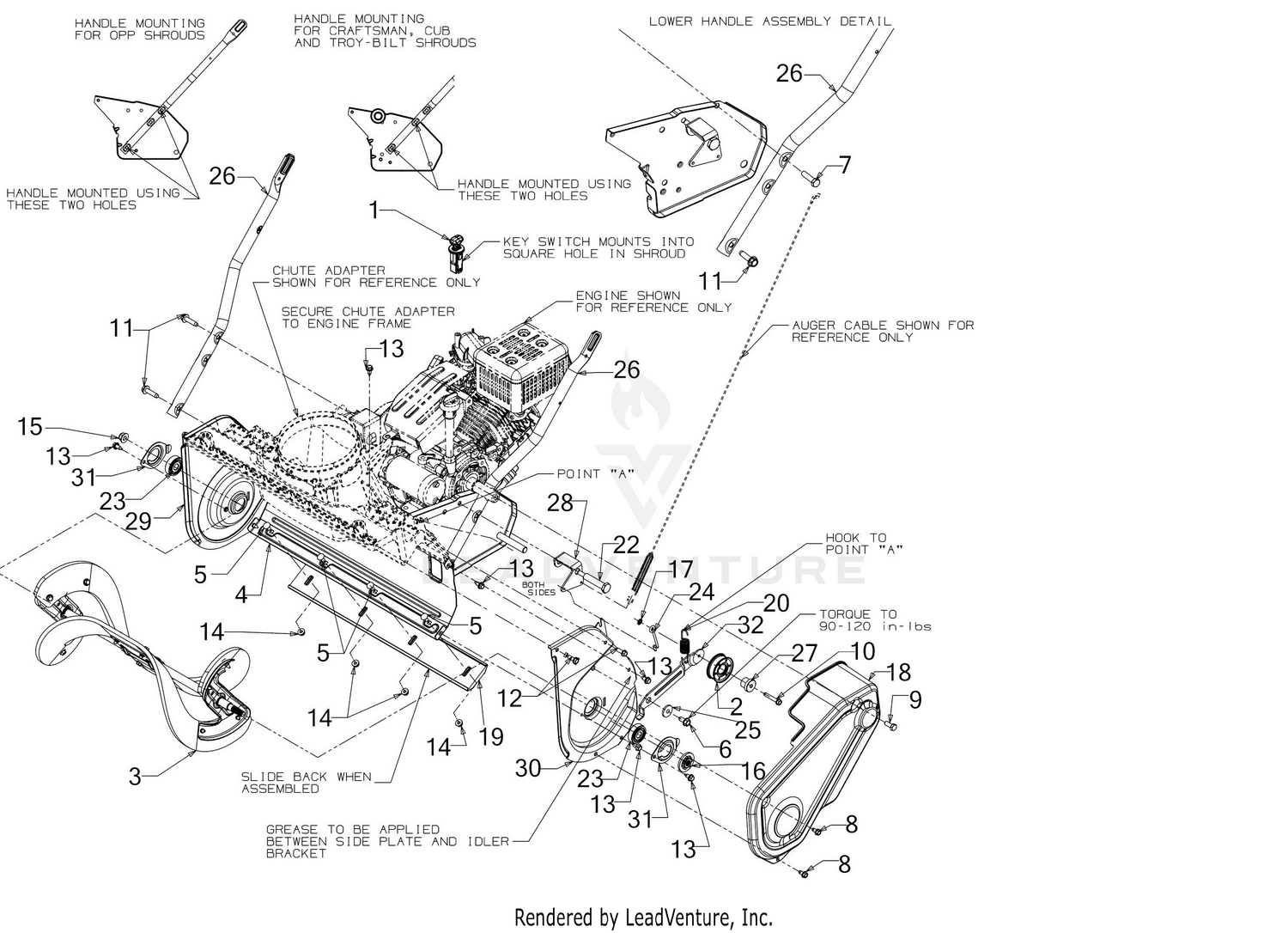

Frame
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 925-04031B | IGNITION SWITCH Price: $36.58 |
| 2 | 684-04168 | IDLER PULLEY ASSEMBLY Price: $34.09 |
| 4 | 753-11131B | SINGLE STAGE SNOW FRAME KIT This part replaces 684-04398-0691. Price: $121.82 |
| 5 | 710-0134 | CARRIAGE BOLT 1/4-20 x .62 Price: $3.71 |
| 6 | 710-04484 | SCREW 5/16-18 x .750 Price: $3.19 |
| 7 | 710-05183 | SCREW 5/16-24 x 1.25 GR5 Price: $3.90 |
| 8 | 710-0599 | SCREW 1/4-20 X.500 Price: $3.86 |
| 9 | 710-0627 | SCREW 5/16-24 x .750 GR5 Price: $3.68 |
| 10 | 710-0778 | SCREW 1/4-20 x 1.50" Price: $3.90 |
| 11 | 710-0817 | SCREW 5/16-18 x 1.25 Price: $5.77 |
| 12 | 710-0895 | SCREW 1/4-15 x .750 Price: $5.82 |
| 13 | 710-1652 | SCREW 1/4-20X.625 Price: $3.86 |
| 14 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 15 | 712-04065 | NUT Price: $3.68 |
| 16 | 718-04836 | PULLEY HUB 1/2" Price: $3.86 |
| 17 | 726-0233 | RETAINER-BOLT .25ID x .50OD Price: $3.93 |
| 18 | 731-07737A | BELT COVER Price: $24.93 |
| 19 | 731-08171 | SHAVE PLATE Price: $16.15 |
| 20 | 732-04748 | EXTENSION SPRING Price: $3.52 |
| 22 | 738-04456 | SHOULDER BOLT Price: $4.83 |
| 23 | 741-04517 | BALL BEARING Price: $7.71 |
| 24 | 747-05360A | WIRE DRIVE CABLE SUPPORT Price: $3.48 |
| 25 | 748-0234 | SHOULDER SPACER Price: $3.86 |
| 26 | 749-04810-0637 | LOWER HANDLE Price: $10.78 |
| 27 | 750-04571 | SHOULDER SPACER Price: $6.01 |
| 28 | 790-00426-0637 | CLUTCH CABLE BRACKET Price: $7.71 |
| 29 | 790-00444-0691 | AUGER HOUSING PLATE (RH) Price: $40.12 |
| 30 | 790-00445-0691 | AUGER HOUSING PLATE (LH) Price: $40.12 |
| 31 | 790-00457-0691 | AUGER HOUSING BEARING CUP Price: $12.29 |
