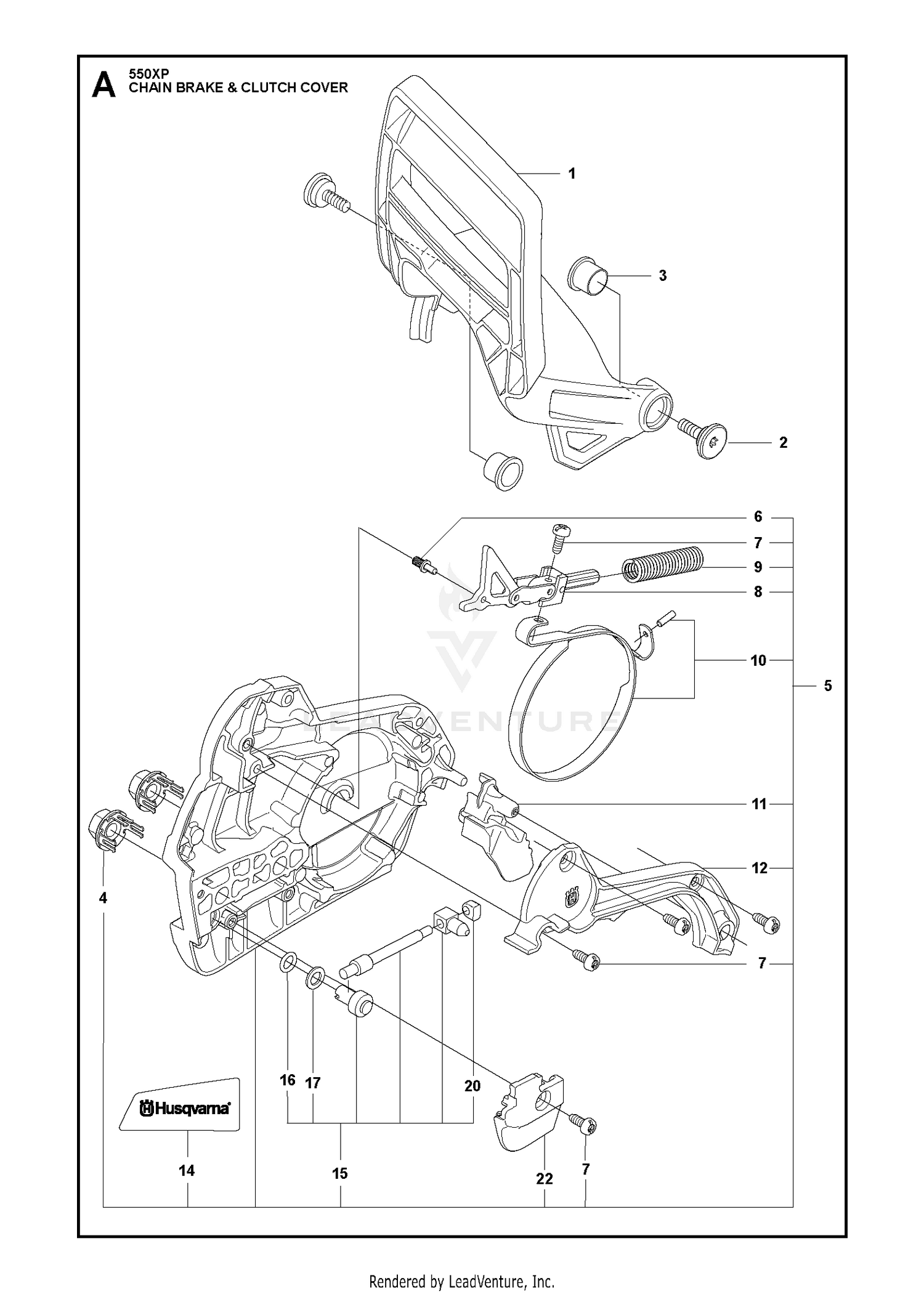

CHAIN BRAKE & CLUTCH COVER
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 522677501 | HAND GUARD Price: $19.99 |
| 2 | 119-8042 | VALVE-SOLENOID Price: $316.00 |
| 2 | 526834501 | SCREW Price: $3.99 |
| 3 | 110-6344 | COIL-12V, DC Price: $141.08 |
| 3 | 577780201 | BUSHING Price: $4.99 |
| 4 | 505197301 | NUT RETAINER ASSY Price: $6.99 |
| 5 | 501846103 | CLUTCH COVER ASSY 560 AND 550 This part replaces 505199005. Price: $109.99 |
| 6 | 503751801 | PIN Price: $3.99 |
| 7 | 526221801 | SCREW Price: $2.99 |
| 8 | 505199301 | KNEE JOINT ASSY Price: $19.99 |
| 9 | 503908301 | SPRING Price: $4.99 |
| 10 | 505199502 | BRAKE BAND Price: $14.99 |
| 12 | 505199703 | COVER This part replaces 505199701. Price: $9.99 |
| 14 | 523058001 | LABEL Price: $3.99 |
| 15 | 575260404 | CHAIN TENSIONER KIT This part replaces 575260403. Price: $9.99 |
| 16 | 740480702 | O-RING Price: $3.99 |
| 17 | 503230063 | WASHER Price: $3.99 |
| 20 | 537017401 | SLEEVE Price: $4.99 |
| 22 | 505199801 | CHAIN GUIDE Price: $4.99 |
