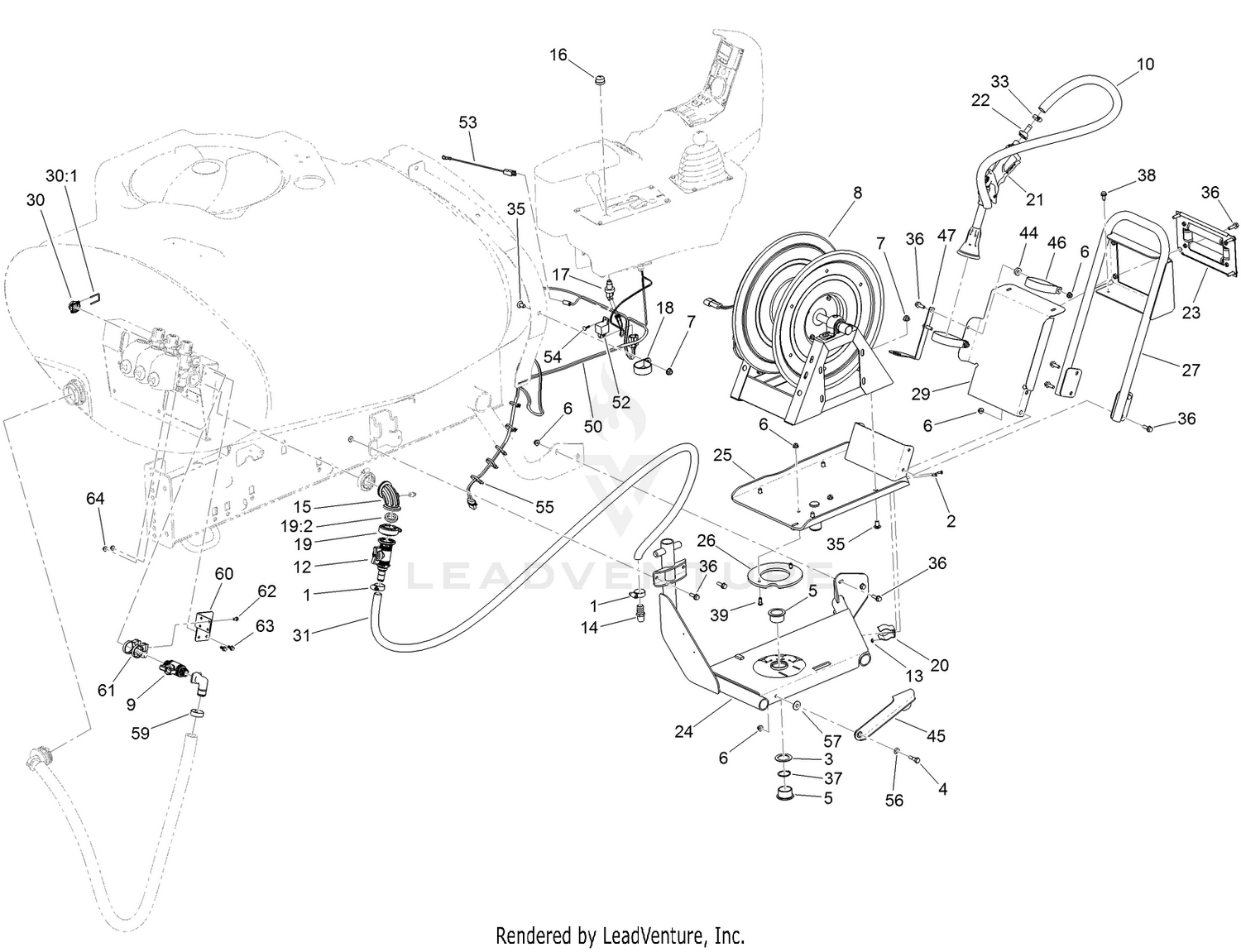

| Ref | Part Number | Description |
|---|
| 1 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 2 |
1-807513 |
BOLT-CARR Price: $1.14 |
| 3 |
62-2170 |
WASHER-THRUST Price: $4.48 |
| 4 |
121-6991 |
BOLT-SHOULDER Price: $31.12 |
| 5 |
93-4510 |
BUSHING-CASTER Price: $6.97 |
| 6 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
127-3910 |
HOSE REEL ASM Price: $4,356.54 |
| 9 |
131-5838 |
SHUTOFF BYPASS VALVE ASM Price: $224.71 |
| 10 |
107-8756 |
HOSE-HOSE REEL Price: $619.03 |
| 12 |
130-7321 |
HOSE REEL VALVE ASM Price: $306.97 |
| 13 |
110-3145 |
NUT-LOCK Price: $0.69 |
| 14 |
110-5065 |
HOSEBARB Price: $18.05 |
| 15 |
131-3726 |
FITTING-ELBOW, 90 DEG Price: $38.12 |
| 16 |
112-3313 |
NUT-WEATHERPROOF Price: $5.23 |
| 17 |
112-3324 |
SWITCH-HORN Price: $39.90 |
| 18 |
114-9566 |
CLAMP-R Price: $2.78 |
| 19 |
127-9829 |
CLAMP/GASKET KIT Price: $40.32 |
| 20 |
119-4937 |
CLIP-SPRING Price: $21.31 |
| 21 |
120-8610 |
SPRAY GUN ASM Price: $323.80 |
| 22 |
121-4982 |
HOSEBARB-SPRAY GUN Price: $13.59 |
| 23 |
121-4983 |
BRACKET-ROLLER Price: $595.61 |
| 24 |
125-4172-03 |
FRAME-HOSE REEL Price: $867.26 |
| 25 |
125-4177-03 |
PIVOT-BASE Price: $336.58 |
| 26 |
125-7990 |
SLIDE-DETENT Price: $118.51 |
| 27 |
125-8014-03 |
HANDLE ASM Price: $262.23 |
| 29 |
125-8044-03 |
SHIELD-MUD Price: $56.06 |
| 30 |
127-9811 |
FITTING-CAP, FEMALE Price: $22.03 |
| 31 |
125-8046 |
HOSE-SUPPLY, HOSE REEL Price: $66.12 |
| 33 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 35 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 36 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 37 |
32120-84 |
RING-SNAP, EXTERNAL Price: $0.61 |
| 38 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 39 |
121-9671 |
SCREW-HSBH Price: $0.59 |
| 44 |
5-0652 |
SPACER This part replaces 26-4840. Price: $5.35 |
| 45 |
127-3957 |
LATCH Price: $76.03 |
| 46 |
120-8592 |
CLAMP-R Price: $7.33 |
| 47 |
161-4160-03 |
BRACKET-SPRAY GUN This part replaces 120-8593-03. Price: $9.02 |
| 50 |
122-0159 |
HARNESS-WIRE, HOSE REEL Price: $176.07 |
| 52 |
99-7435 |
RELAY Price: $32.43 |
| 53 |
108-9455 |
HARNESS-WIRE, FUSIBLE LINK Price: $13.09 |
| 54 |
125-8067 |
PLUG-PLASTIC Price: $0.51 |
| 55 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 56 |
121-4605 |
WASHER-SPRING Price: $3.63 |
| 57 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 59 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 60 |
139-3096-03 |
BRACKET-MOUNT, VALVE Price: $11.47 |
| 61 |
132-4302 |
MOUNT-VALVE Price: $38.41 |
| 62 |
33113-012 |
SCREW-HH Price: $0.71 |
| 63 |
99-6810 |
SCREW-HHF Price: $3.09 |
