| Ref | Part Number | Description |
|---|
| 1 |
86-9370-03 |
PANEL-INSTUMENT This part replaces 86-9370. Price: $80.85 |
| 2 |
85-7470 |
DECAL Price: $25.56 |
| 3 |
233-35 |
KNOB Price: $8.06 |
| 4 |
218-516 |
LENS Price: $11.36 |
| 5 |
3219-14 |
NUT-HEX Price: $0.25 |
| 6 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 7 |
38-1670 |
MTNG BRKT W/38-1660 Price: $16.06 |
| 8 |
38-1650 |
FUEL GAUGE Price: $185.83 |
| 9 |
218-539 |
DISCONTINUED Price: Call Us |
| 10 |
83-0820 |
GAUGE - AMMETER This part replaces 38-1660. Price: $76.09 |
| 11 |
67-8550 |
DISCONTINUED Price: Call Us |
| 12 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 13 |
26-6740 |
TEMP RESET RELAY Price: $165.84 |
| 15 |
27-2360 |
SWITCH Price: $46.56 |
| 16 |
120-2244 |
HOURMETER This part replaces 12-9990. Price: $48.06 |
| 17 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 18 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 19 |
3217-6 |
NUT-HEX Price: $1.19 |
| 20 |
3255-5 |
WASHER-LOCK, EXT Price: $0.25 |
| 21 |
3217-26 |
NUT-HEX Price: $0.25 |
| 22 |
218-515 |
BRACKET Price: $12.11 |
| 23 |
63-7590 |
RELAY Price: $78.15 |
| 24 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 25 |
3290-134 |
SCREW Price: $0.27 |
| 26 |
3290-360 |
SCREW-HH Price: $4.34 |
| 27 |
22-7810 |
SPACER Price: $16.90 |
| 28 |
119-2865 |
KIT-GM300 BUZZER, LOW OIL PRESSURE This part replaces 22-7820. Price: $135.43 |
| 29 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 30 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 31 |
67-8560 |
CABLE-CONTROL, THROTTLE Price: $72.13 |
| 32 |
3255-24 |
WASHER-LOCK / EXT Price: $0.25 |
| 33 |
3217-29 |
NUT-HEX Price: $0.25 |

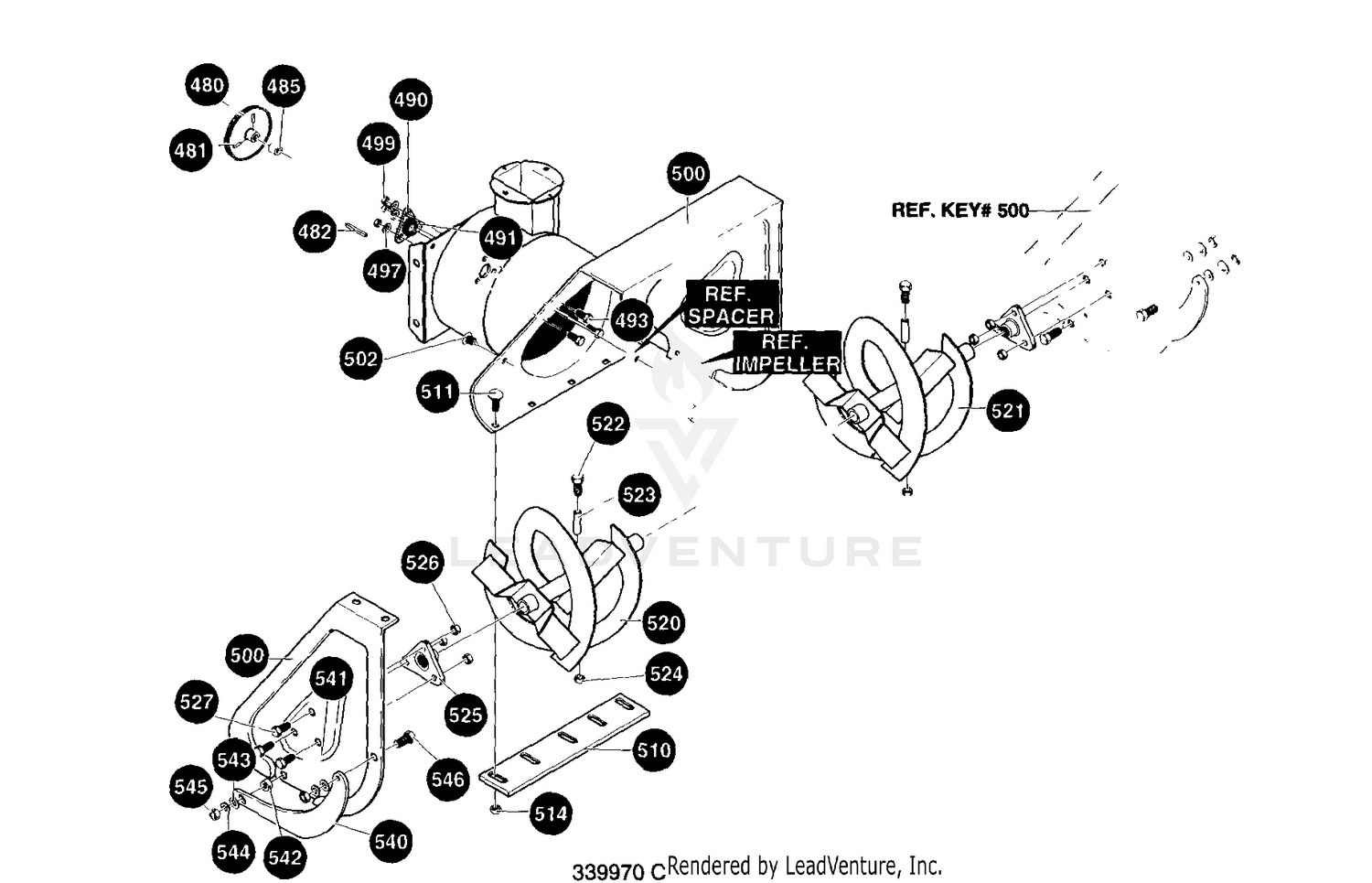

| 480 |
601002114 |
Pulley, V4L Price: $27.37 |
| 481 |
601002116 |
Screw, 5/16-18 x .50 Price: $4.23 |
| 482 |
601001507 |
SQUARE KEY Price: $2.85 |
| 485 |
601001610 |
SPACER, SLEV .676X1.00X.53 Price: $3.99 |
| 490 |
601001509 |
RETAINER Price: $2.03 |
| 491 |
601000565 |
BEARING, BALL This part replaces 601000539. Price: $16.99 |
| 493 |
601000073 |
SCREW, 5/16-18X .75 HHC Price: $2.99 |
| 497 |
601000023 |
WASHER, HVSPTLK .328X.60X Price: $2.99 |
| 499 |
601000012 |
NUT, 5/16-18 REGHEX Price: $5.99 |
| 500 |
601002117 |
HOUSING, ASSY Price: $92.99 |
| 502 |
601000406 |
FASTENER, RATCHET GRE Price: $5.99 |
| 510 |
601002118 |
BLADE, SCRAPER 22" Price: $8.99 |
| 511 |
601002119 |
Carr. Bolt, 1/4-20 x .75 Price: $0.38 |
| 514 |
601000575 |
NUT, 1/4-20 WDFLLK Price: $0.99 |
| 520 |
601002120 |
Auger, Assy RH Price: $40.88 |
| 521 |
601002121 |
Auger, Assy LH Price: $40.88 |
| 522 |
601001456 |
BOLT, SHEAR 703057 Price: $8.99 |
| 523 |
601001517 |
SPACER Price: $4.99 |
| 524 |
601002318 |
RP NUT This part replaces 601000062. Price: $9.99 |
| 525 |
601002122 |
Bearing, Flange Price: $1.96 |
| 526 |
601002123 |
Nut, 5/16-18 Price: $3.23 |
| 527 |
601002124 |
SCREW, 5/16-18X.75 Price: $3.99 |
| 540 |
601002125 |
Skid, Edge Cover Price: $12.43 |
| 541 |
601000899 |
BOLT 5/16-18 X 1.00 Price: $1.58 |
| 542 |
601000669 |
WASHER, FLAT .391X1.00X. Price: $3.99 |
| 543 |
601000019 |
WASHER, FLAT .344X .69X. Price: $2.99 |
| 544 |
601000023 |
WASHER, HVSPTLK .328X.60X Price: $2.99 |
| 545 |
601000012 |
NUT, 5/16-18 REGHEX Price: $5.99 |
