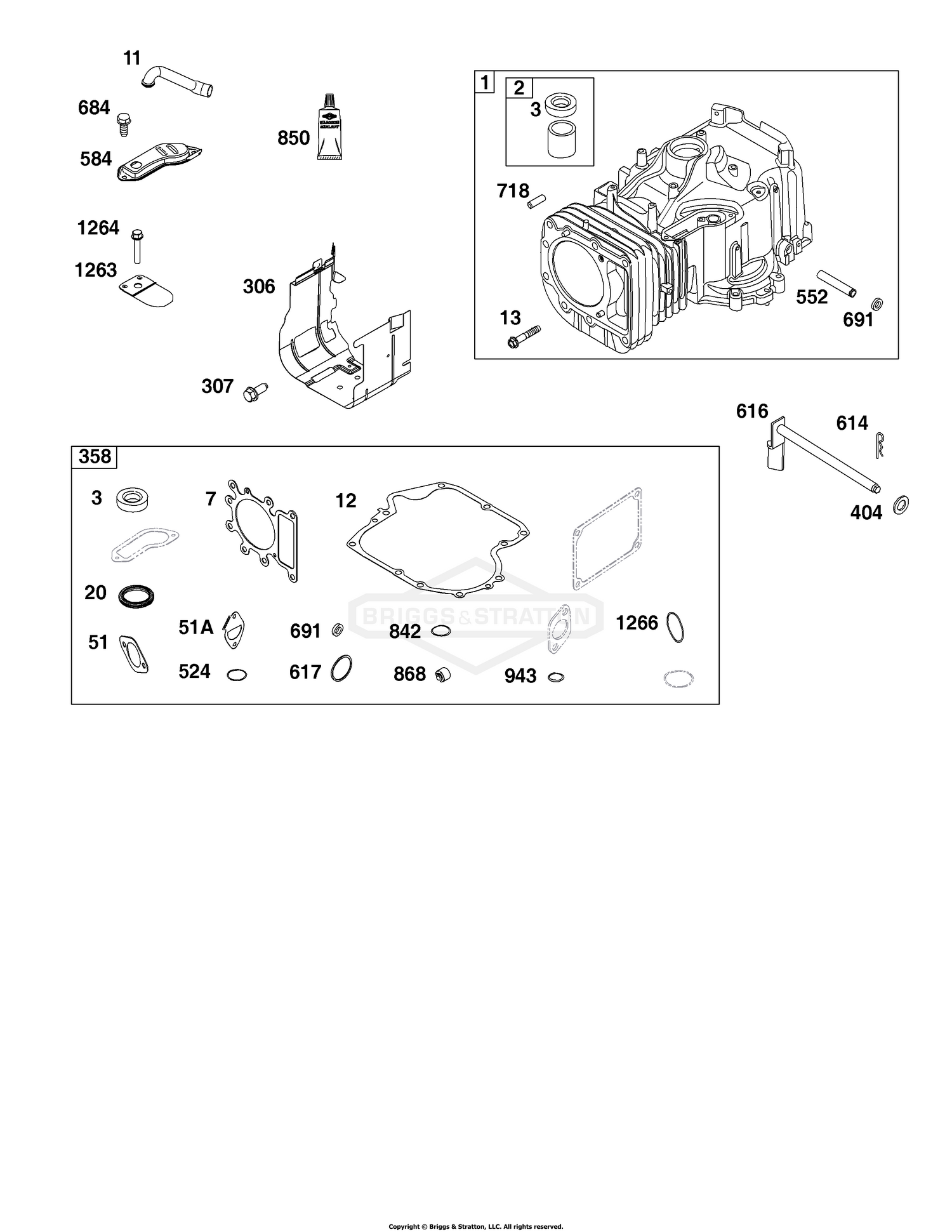

Cylinder Group
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 796010 | CYLINDER ASSEMBLY Price: $464.90 |
| 11 | 794683 | TUBE, Breather Price: $7.07 |
| 13 | 596718 | SCREW Price: $3.36 |
| 306 | 592777 | SHIELD, Cylinder Price: $46.19 |
| 552 | 697144 | BUSHING, Governor Crank Price: $7.85 |
| 584 | 794682 | COVER, Breather Passage Price: $8.23 |
| 614 | 691620 | PIN, Cotter Price: $3.70 |
| 616 | 692012 | CRANK, Governor Price: $12.23 |
| 691 | 692407 | SEAL, Governor Shaft Price: $6.62 |
| 718 | 690959 | PIN, Locating Price: $5.75 |
| 1263 | 697124 | REED, Breather Price: $6.46 |
