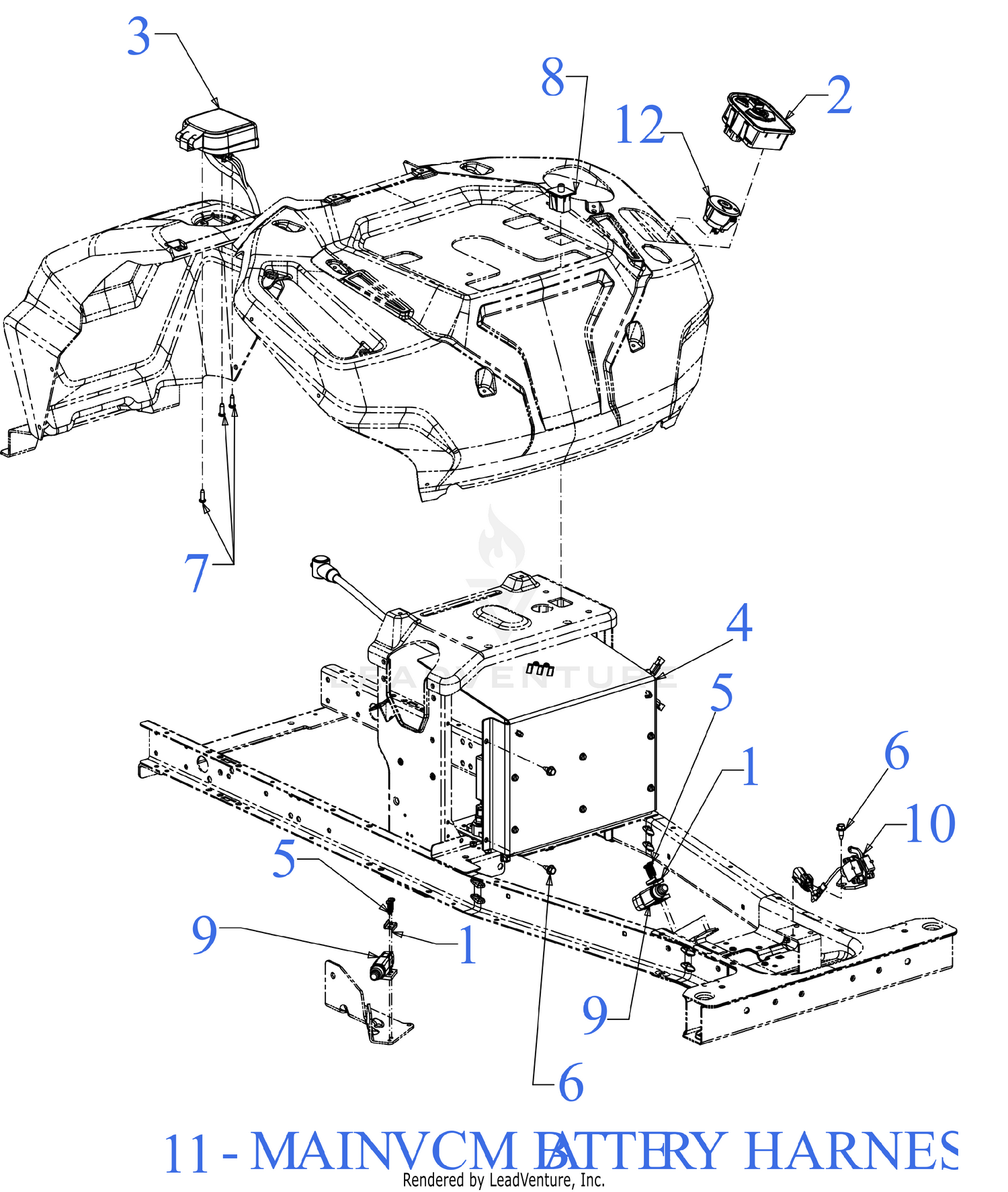

| Ref | Part Number | Description |
|---|
| 1 |
17962 |
PLATE-SWITCH Price: $4.36 |
| 2 |
753-11121B |
VCM SERVICE KIT (CR12/ECR12) This part replaces 925-05174A. Price: $396.83 |
| 3 |
625-05181 |
CHARGE PORT PLUG ASSEMBLY Price: $351.44 |
| 4 |
625P06230A |
MOTOR CONTROL PANEL This part replaces 625P06230. Price: $1,254.83 |
| 5 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 6 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 7 |
710-1823 |
SCREW #12-16 x .625 Price: $3.14 |
| 8 |
725-05472 |
SEAT SWITCH Price: $16.76 |
| 9 |
725-07432 |
PLUNGER SWITCH (NO/NO) Price: $42.18 |
| 10 |
725-07539B |
THROTTLE SENSOR (DUEL CLIP) This part replaces 725-07539A. Price: $150.56 |
| 10 |
924-04153 |
ROTARY SENSOR MAGNET Price: $9.29 |
| 11 |
725P09445 |
MAIN HARNESS (VCM HPD BATTERY) Price: $501.92 |
| 12 |
725P10266 |
KEY SWITCH (2 POSITION) Price: $36.06 |
