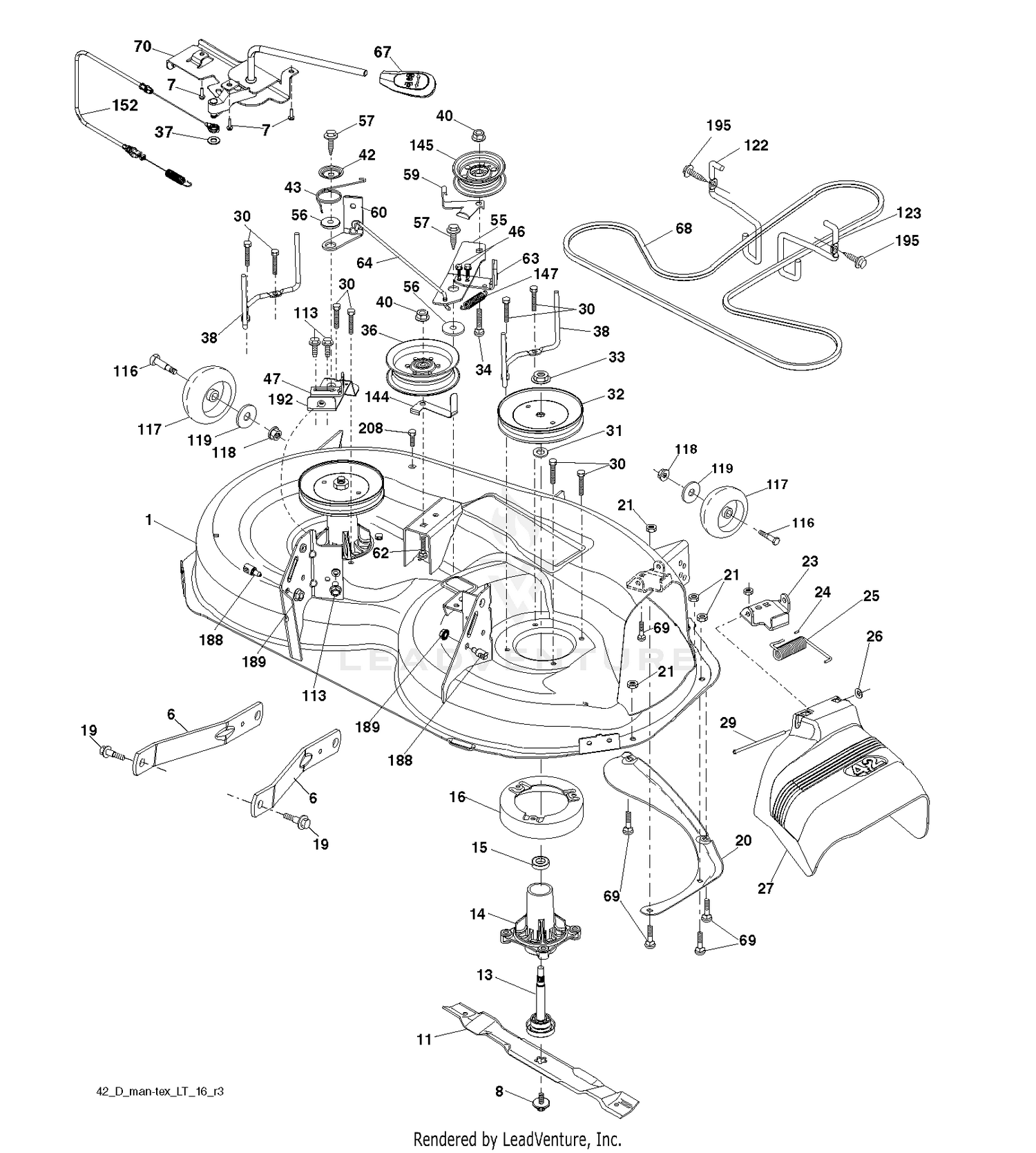

| Ref | Part Number | Description |
|---|
| 1 |
120-8589-03 |
BRACKET-TUBE Price: $60.38 |
| 1 |
532199606 |
DECK.WELDMENT.42".2GWB.BLACK This part replaces 532196495. Price: $229.99 |
| 2 |
120-0608-03 |
HINGE Price: $130.93 |
| 3 |
120-0611-03 |
STRAP Price: $70.31 |
| 4 |
120-0613-03 |
STRAP Price: $81.86 |
| 5 |
120-0757-03 |
BRACKET-TUBE Price: $29.00 |
| 6 |
120-0799-03 |
STRAP Price: $92.15 |
| 6 |
532195186 |
ARM.SUSPENSION.MOWER.R Price: $8.99 |
| 7 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 7 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 9 |
117-8114 |
SENSOR-SONIC Price: $850.04 |
| 10 |
120-0647 |
NUT Price: $21.97 |
| 11 |
120-0648 |
PLUG-PROGRAMMING Price: $62.08 |
| 12 |
120-0646 |
HOUSING-LOWER, ULTRASONIC SENSOR Price: $89.58 |
| 13 |
120-0645 |
COVER-SENSOR, ULTRASONIC Price: $80.27 |
| 13 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192872. Price: $32.99 |
| 14 |
120-0772 |
CAP-TUBE Price: $5.21 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 15 |
92-0010 |
U-BOLT Price: $10.65 |
| 16 |
104-7201 |
NUT-HF Price: $0.69 |
| 16 |
532174493 |
STRIPPER.MANDREL.ROUND.BLACK Price: $3.99 |
| 17 |
110-5331 |
SPRING-COMPRESSION Price: $22.18 |
| 18 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
532159770 |
BAFFLE.VORTEX Price: $12.99 |
| 21 |
322-20 |
SCREW-HH Price: $1.79 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
3234-36 |
SCREW-HHF Price: $0.75 |
| 23 |
120-0761 |
BUSHING Price: $3.39 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $27.99 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $14.99 |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
532432520 |
KEEPER.BELT.MANDREL.PULLEY This part replaces 532199189. Price: $5.99 |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 42 |
532197256 |
SRPING.TORSION.RETAINE Price: $2.99 |
| 43 |
532198410 |
SPRING.TORSION.BRAKE Price: $2.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
532197260 |
BRKT.BRAKE.STAND.LH. Price: $8.99 |
| 55 |
532197249 |
IDLER.ARM Price: $3.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 59 |
532141043 |
GUARD, BELT Price: $3.99 |
| 60 |
532197402 |
ARM BRAKE MOWER This part replaces 532197261. Price: $11.99 |
| 62 |
872110616 |
BOLT Price: $3.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $12.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC This part replaces 532199790. Price: $12.99 |
| 67 |
532409792 |
Price: Call Us |
| 68 |
532197253 |
BELT.DRIVE.MOWER.TEX.42" Price: $27.99 |
| 69 |
872140505 |
BOLT Price: $2.99 |
| 70 |
532198332 |
CLUTCH.ASM.MANUAL.LT.TEX Price: $54.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 116 |
532004898 |
BOLT This part replaces 532124842. Price: $1.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $2.99 |
| 118 |
873680600 |
LOCKNUT This part replaces 873930600. Price: $1.99 |
| 119 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 122 |
532197258 |
KEEPER BELT ENGINE LH Price: $9.99 |
| 123 |
532197259 |
KEEPER BELT RH Price: $9.99 |
| 144 |
532199204 |
KEEPER.BELT.MOWER Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 147 |
532401971 |
RETURN SPRING Price: $3.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. This part replaces 532408714. Price: $19.99 |
| 188 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 189 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 192 |
532197250 |
BRKT.CLUTCH.CABLE Price: $2.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
