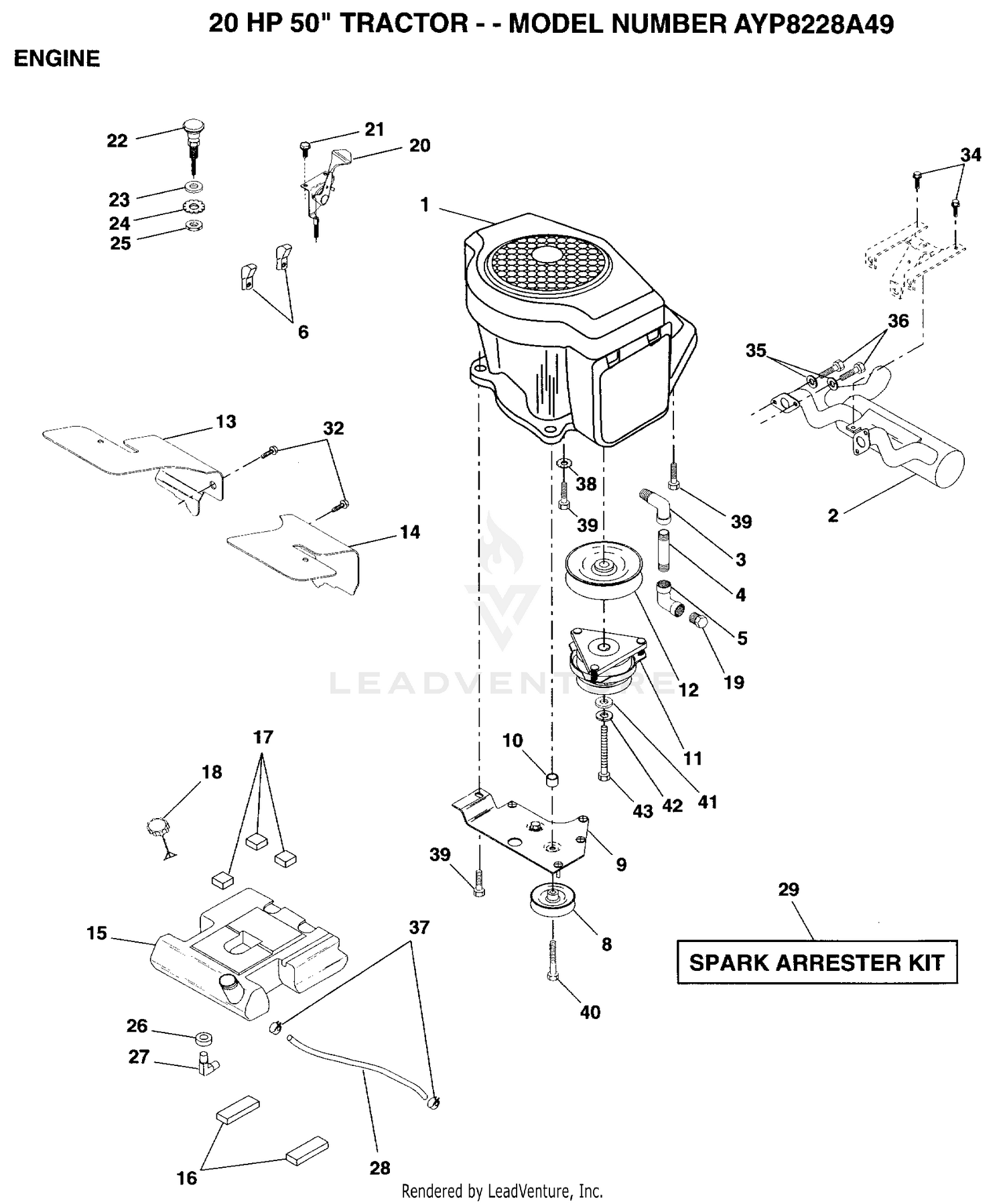

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 2 |
144110 |
MUFFLER.KOH.VCT. Price: Call Us |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
13240300 |
STREET ELBOW LT Price: Call Us |
| 3 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 4 |
13280328 |
PIPE NIPPLE Price: Call Us |
| 4 |
321-3 |
SCREW-HH Price: $0.28 |
| 5 |
13200300 |
ELBOW Price: Call Us |
| 5 |
256-273 |
BUSHING-FLANGE Price: $4.55 |
| 6 |
138129 |
CLAMP.TUBE.DBL.EN Price: Call Us |
| 6 |
43-6320 |
COLLAR Price: $24.71 |
| 7 |
71-0440 |
ABRASIVE-PEDAL Price: $15.80 |
| 8 |
121361X |
SUB= 139123 Price: Call Us |
| 8 |
69-9390 |
SHAFT-PEDAL Price: $71.62 |
| 9 |
138559 |
SUB= 150828 Price: Call Us |
| 9 |
71-0450 |
ABRASIVE-PEDAL, REAR Price: $10.39 |
| 10 |
105432X |
BUSHING. Price: Call Us |
| 10 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 11 |
137140 |
SUB= 142600 Price: Call Us |
| 11 |
32128-20 |
NUT-HF Price: $0.99 |
| 12 |
136907 |
PULLEY.ENGINE.VGT Price: Call Us |
| 12 |
3217-7 |
NUT-HEX Price: $0.28 |
| 13 |
138486 |
BAFFLE.AIR.LH.K Price: Call Us |
| 13 |
69-9030 |
POST-DEVICE, NEUTRAL Price: $39.15 |
| 14 |
138487 |
SUB= 154574 Price: Call Us |
| 14 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 15 |
141069 |
SUB= 151346 Price: Call Us |
| 15 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 16 |
109227X |
PAD IDLER TI Price: Call Us |
| 16 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 17 |
106082X |
PAD-SPACER LT Price: Call Us |
| 17 |
107-1179-03 |
CONTROL-ROD Price: $189.90 |
| 18 |
140527 |
CAP ASM FUEL Price: Call Us |
| 18 |
3220-5 |
NUT-JAM Price: $0.65 |
| 19 |
13290300 |
PLUG T Price: Call Us |
| 19 |
61-3530 |
BEARING-ROD END, RH Price: $52.61 |
| 20 |
142168 |
CONTROL THTL 37 Price: Call Us |
| 20 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 21 |
17720410 |
SCREW LT Price: Call Us |
| 21 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 22 |
99-5347-03 |
TRACTION PEDAL ASM Price: $219.38 |
| 23 |
19131316 |
WASHER Price: Call Us |
| 23 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 24 |
11050600 |
LOCKWASHER Price: Call Us |
| 24 |
99-5348 |
PLATE-CLUTCH Price: $61.10 |
| 25 |
43-6200 |
SPRING-COMPRESSION Price: $20.42 |
| 25 |
73610600 |
SUB= 7810H Price: Call Us |
| 26 |
100-8016 |
FIELD CORE COIL ASM Price: $165.29 |
| 26 |
3645J |
BUSHING OUTLET T Price: Call Us |
| 27 |
139277 |
STEM.TANK.FUEL Price: Call Us |
| 27 |
92-9701 |
SHAFT-CRUISE Price: $101.17 |
| 28 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 28 |
7834R |
SUB= 8542R Price: Call Us |
| 29 |
132920 |
SPARK ARREST KIT Price: Call Us |
| 29 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 30 |
323-10 |
SCREW-HH Price: $0.89 |
| 31 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 32 |
17490508 |
SCREW LT Price: Call Us |
| 34 |
17720408 |
SCREW Price: Call Us |
| 35 |
10040500 |
LOCKWASHER Price: Call Us |
| 36 |
74570512 |
SCREW Price: Call Us |
| 37 |
123487X |
HOSE CLAMP Price: Call Us |
| 38 |
11050600 |
LOCKWASHER Price: Call Us |
| 39 |
17490624 |
SCREW LT Price: Call Us |
| 40 |
17490652 |
SCREW.3/8-16X3.25 Price: Call Us |
| 41 |
126197X |
WASHER Price: Call Us |
| 42 |
10040700 |
LOCKWASHER Price: Call Us |
