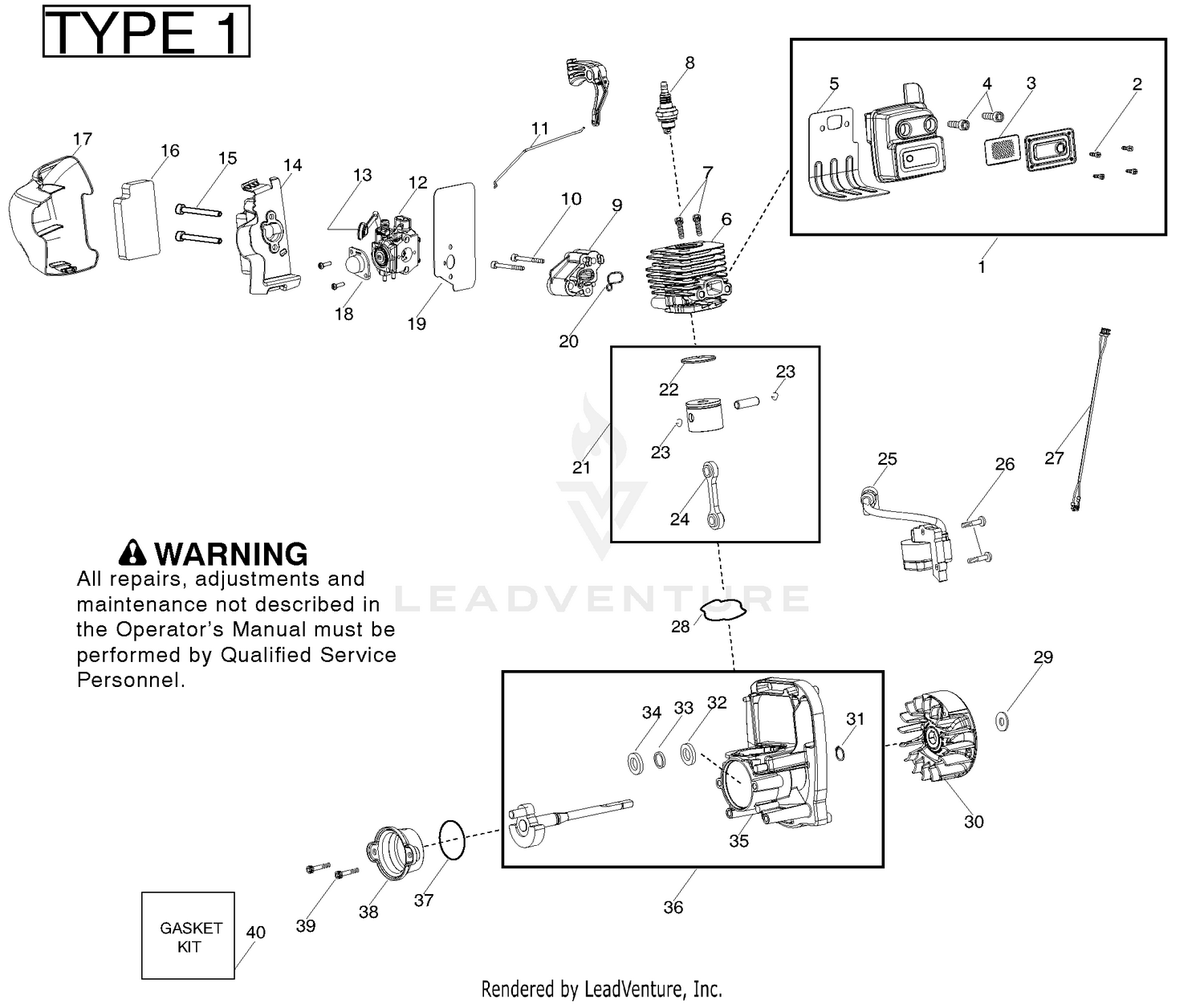

| Ref | Part Number | Description |
|---|
| 1 |
38-6730 |
DISCONTINUED This part replaces 10-7650. Price: Call Us |
| 2 |
10-7660 |
DISCONTINUED Price: Call Us |
| 2 |
530015241 |
Screw Price: $1.99 |
| 3 |
10-7620 |
DISCONTINUED Price: Call Us |
| 3 |
525592801 |
Assy - Muffler This part replaces 545081845. Price: $22.99 |
| 4 |
10-7640 |
REAR UNIT RETURN HOSE Price: $66.43 |
| 4 |
530058982 |
Bolt Price: $1.99 |
| 5 |
10-7490 |
DISCONTINUED Price: Call Us |
| 5 |
545081832 |
Gasket-Muffler (gasket kit) Price: $11.99 |
| 6 |
10-7560 |
DISCONTINUED Price: Call Us |
| 6 |
545115301 |
Cylinder Price: $27.99 |
| 7 |
10-7600 |
DISCONTINUED Price: Call Us |
| 7 |
530015953 |
Bolt Price: $1.99 |
| 8 |
11-6450 |
DISCONTINUED Price: Call Us |
| 8 |
952030249 |
Spark Plug (RCJ-6Y) Price: $3.99 |
| 9 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 9 |
545084901 |
Adapter - Carb. Price: $9.99 |
| 10 |
10-7740 |
DISCONTINUE Price: Call Us |
| 10 |
530016441 |
Screw Price: $1.99 |
| 11 |
10-7710 |
DISCONTINUED Price: Call Us |
| 11 |
545115501 |
Linkage - Throttle Price: $2.99 |
| 12 |
10-7680 |
DISCONTINUED Price: Call Us |
| 13 |
10-7510 |
DISCONTINUED Price: Call Us |
| 13 |
545157101 |
Lever- Choke (Yellow) Price: $7.99 |
| 14 |
545112601 |
Base - Airbox Price: $7.99 |
| 14 |
7-3123 |
DISCONTINUED Price: Call Us |
| 15 |
10-7500 |
DISCONTINUED Price: Call Us |
| 15 |
530016429 |
Screw Price: $1.99 |
| 16 |
47-4830 |
DISCONTINUED This part replaces 10-7700. Price: Call Us |
| 16 |
545116801 |
Filter Price: $2.99 |
| 17 |
10-7710 |
DISCONTINUED This part replaces 10-7690. Price: Call Us |
| 17 |
545112702 |
Cover - Air Box Filter Price: $5.99 |
| 18 |
10-7520 |
DISCONTINUED Price: Call Us |
| 18 |
530035497 |
Bulb - Purge (walbro 188-16) Price: $4.99 |
| 19 |
10-7610 |
DISCONTINUED Price: Call Us |
| 19 |
545081832 |
Gasket (Carb / Adapter) (gasket kit) Price: $11.99 |
| 20 |
10-7540 |
DISCONTINUED Price: Call Us |
| 20 |
545081832 |
O-Ring (Adapter / Cylinder) (gasket kit) Price: $11.99 |
| 21 |
10-7530 |
DISCONTINUED Price: Call Us |
| 22 |
353-382 |
DISCONTINUED Price: Call Us |
| 22 |
545154009 |
PISTON RING This part replaces 530012472. Price: $1.99 |
| 23 |
10-7630 |
DISCONTINUED Price: Call Us |
| 23 |
530015162 |
Retainer - Wrist Pin Price: $1.99 |
| 24 |
10-7670 |
LH FRT RETURN HOSE Price: $49.52 |
| 24 |
545156002 |
KIT PISTON CONN ROD FORGED This part replaces 545081865. Price: $14.99 |
| 25 |
545081826 |
Kit - Ignition Module This part replaces 545158001. Price: $32.99 |
| 26 |
530016357 |
Screw Price: $1.99 |
| 27 |
545127601 |
Assy - Wire Harness Price: $5.99 |
| 28 |
545081832 |
O-Ring (Cyl/Crankcase) (gasket kit) Price: $11.99 |
| 29 |
530015828 |
Washer Price: $1.99 |
| 30 |
545221701 |
FLYWHEEL ASSY This part replaces 530054115. Price: $8.99 |
| 31 |
530015941 |
Retainer - Crankshaft Price: $1.99 |
| 32 |
530055728 |
Bearing - Outer Price: $6.99 |
| 33 |
530019264 |
Seal Price: $2.99 |
| 34 |
530032125 |
Bearing - Inner Price: $11.99 |
| 37 |
545081832 |
O-Ring (Rear Plug) (gasket kit) Price: $11.99 |
| 39 |
530016386 |
Screw Price: $5.99 |
