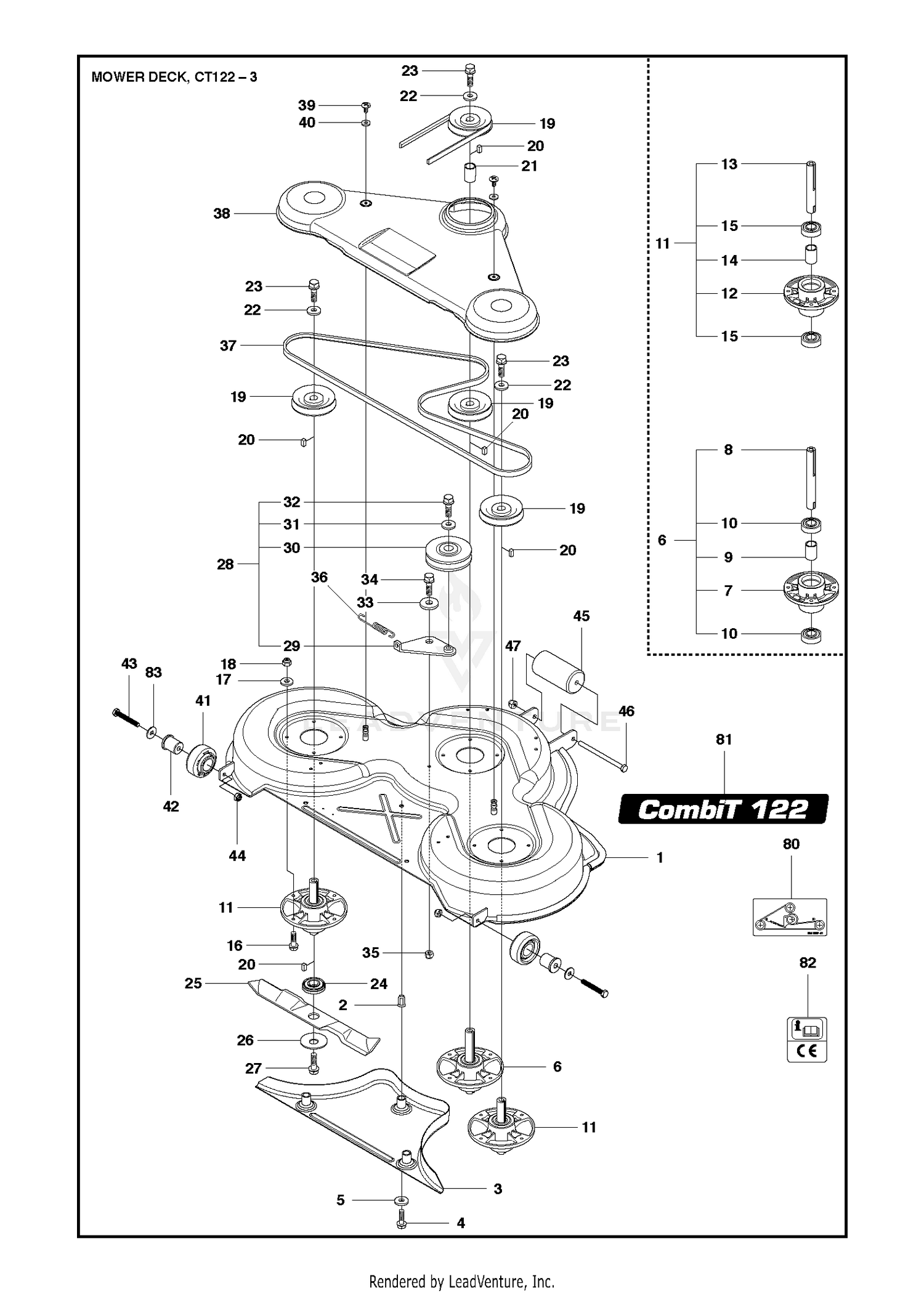

48"/122CM CUTTING DECK
Parts (77)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-5522 | FITTING-ELBOW, 90 Price: $85.70 |
| 1 | 522505601 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 353-987 | FITTING-ELBOW, 90 Price: $74.72 |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 3 | 535428302 | NEEDS DESCRIPTION Price: Call Us |
| 4 | 110-5524 | HOSE-RETURN Price: $20.57 |
| 4 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 5 | 3290-379 | TIE-CABLE Price: $0.31 |
| 5 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 6 | 535428601 | NEEDS DESCRIPTION Price: Call Us |
| 6 | 68-6150 | BREATHER Price: $27.22 |
| 7 | 354-95 | FITTING-STRAIGHT Price: $6.75 |
| 7 | 535428901 | BEARING HOUSING Price: $119.99 |
| 8 | 535428701 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 9 | 110-9662 | HOSE-FUEL Price: $31.52 |
| 9 | 535428801 | SPACER Price: $7.99 |
| 10 | 32180-030 | CLIP-TIE Price: $4.19 |
| 10 | 738220519 | BALL BEARING Price: $6.99 |
| 11 | 110-8237 | HYD RESERVOIR ASM Price: $1,078.14 |
| 12 | 2412-98 | CLAMP-HOSE Price: $1.39 |
| 12 | 535428901 | BEARING HOUSING Price: $119.99 |
| 13 | 120-0017 | STRIP-FOAM Price: $4.07 |
| 13 | 535428702 | AXLE Price: $49.99 |
| 14 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 14 | 535428801 | SPACER Price: $7.99 |
| 15 | 110-5526 | HOSE-SUCTION Price: $69.79 |
| 15 | 738220519 | BALL BEARING Price: $6.99 |
| 16 | 32144-14 | SCREW-HWHTF Price: $4.29 |
| 16 | 535423801 | BOLT Price: $4.99 |
| 17 | 110-5529-03 | SUPPORT-RESERVOIR Price: $22.51 |
| 17 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 18 | 109-0299 | HOSE-FUEL Price: $12.99 |
| 18 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 112-6365 | DIPSTICK Price: $73.81 |
| 19 | 535429001 | NEEDS DESCRIPTION Price: Call Us |
| 20 | 506533501 | KEY Price: $3.99 |
| 20 | 94-8166 | O-RING Price: $3.76 |
| 21 | 535428801 | SPACER Price: $7.99 |
| 21 | 93-7498 | PLUG-PLASTIC Price: $25.26 |
| 22 | 535429201 | Price: Call Us |
| 22 | 94-5625 | HOSE Price: $13.26 |
| 23 | 353-979 | FITTING-STR Price: $12.62 |
| 23 | 725254251 | Screw Price: $4.99 |
| 24 | 2412-108 | CLAMP-WORM Price: $1.29 |
| 24 | 535504201 | Price: Call Us |
| 25 | 340-4 | FITTING-STRAIGHT Price: $11.58 |
| 25 | 535429410 | BLADE Price: $24.99 |
| 26 | 110-5532 | TUBE Price: $206.66 |
| 26 | 506792302 | WASHER Price: $12.99 |
| 27 | 340-7 | FITTING-STRAIGHT Price: $14.00 |
| 27 | 725254251 | Screw Price: $4.99 |
| 28 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 29 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 30 | 506532701 | PULLEY Price: $39.99 |
| 31 | 734116441 | SPACER Price: $3.99 |
| 32 | 506558302 | BOLT Price: $3.99 |
| 33 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 34 | 725245171 | SCREW Price: $2.08 |
| 35 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 36 | 506533101 | SPRING Price: $9.99 |
| 37 | 589533001 | NEEDS DESCRIPTION Price: Call Us |
| 38 | 535429601 | NEEDS DESCRIPTION Price: Call Us |
| 39 | 506982601 | SCREW Price: $5.99 |
| 40 | 506559701 | WASHER Price: $4.99 |
| 41 | 589245601 | NEEDS DESCRIPTION Price: Call Us |
| 42 | 582554601 | NEEDS DESCRIPTION Price: Call Us |
| 43 | 577376701 | NEEDS DESCRIPTION Price: Call Us |
| 44 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 45 | 539002472 | ROLLER This part replaces 544185401. Price: $77.99 |
| 46 | 544221001 | Price: Call Us |
| 47 | 732212201 | Price: $2.67 |
| 80 | 506789701 | Decal Price: $21.55 |
| 81 | 544238113 | NEEDS DESCRIPTION Price: Call Us |
| 82 | 506929001 | DECAL Price: $3.99 |
| 83 | 734117441 | WASHER Price: $3.99 |
