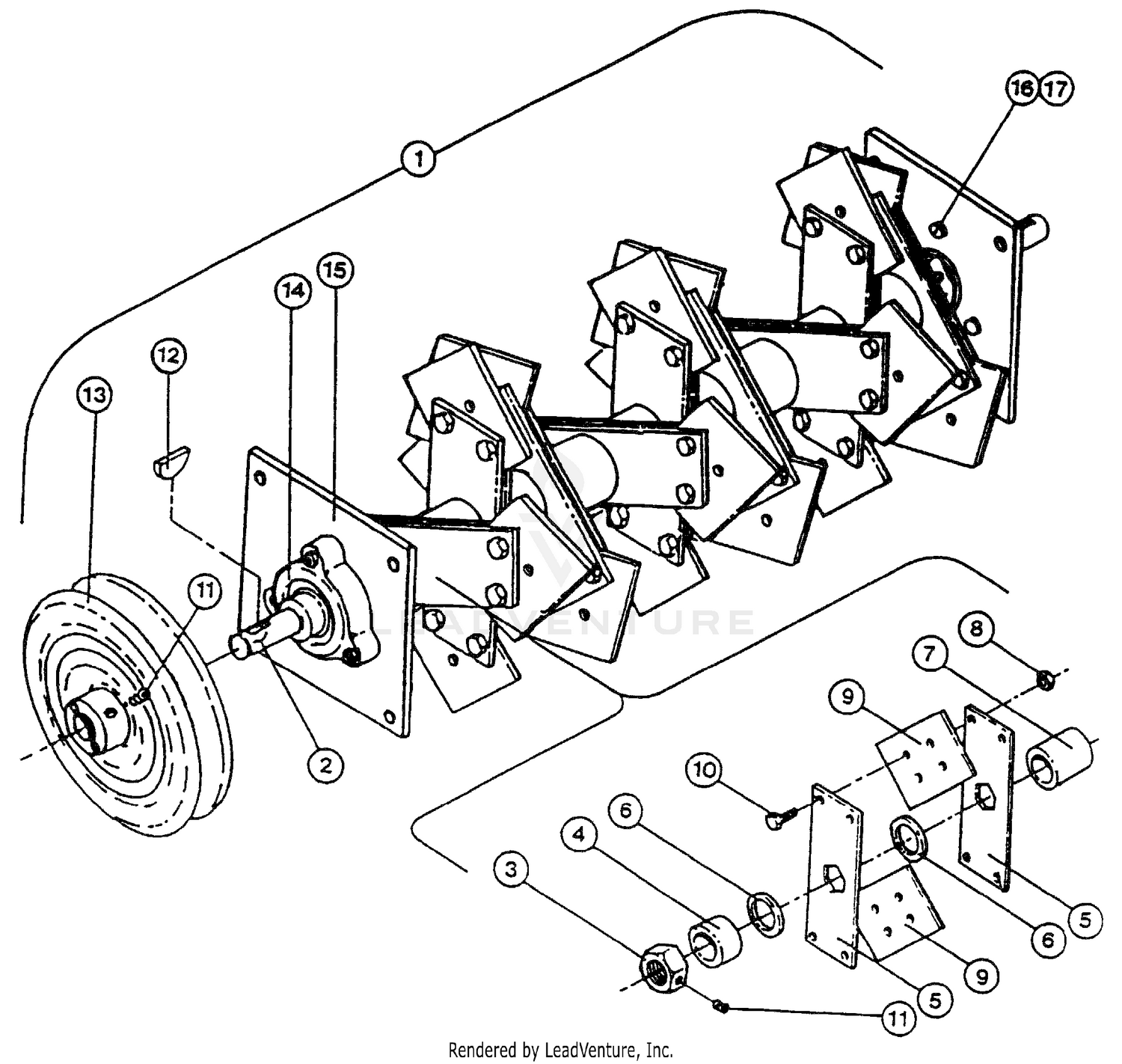

| Ref | Part Number | Description |
|---|
| 1 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
539100529 |
SLICER SHAFT, BARE Price: $71.69 |
| 3 |
322-10 |
SCREW-HH Price: $0.70 |
| 3 |
539100530 |
JAM NUT W/SET SCREW Price: $17.99 |
| 4 |
32105-21 |
SCREW-HH Price: $1.09 |
| 4 |
539100531 |
SPACER, SLEEVE SHORT Price: $8.28 |
| 5 |
29-6162 |
SWITCH-MICRO Price: $107.13 |
| 5 |
539100532 |
BLADE HOLDER PLATE Price: $2.99 |
| 6 |
539100533 |
WASHER, BLADE Price: $3.43 |
| 6 |
75-4130 |
PLATE-SWITCH Price: $13.26 |
| 7 |
539100534 |
SPACER, SLEEVE (LONG) Price: $9.87 |
| 7 |
76-9430-03 |
SPRING-EXTENTION Price: $28.14 |
| 8 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 8 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 9 |
322-7 |
SCREW-HH Price: $0.89 |
| 9 |
539100536 |
SLICER BLADE Price: $17.99 |
| 10 |
251-259 |
BEARING-BALL This part replaces 251-307. Price: $13.67 |
| 10 |
596582501 |
Bolts This part replaces 539990072. Price: $2.99 |
| 11 |
539976956 |
SET SCREW 5/16 NYLOC Price: $2.99 |
| 11 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 12 |
32144-22 |
SCREW Price: $0.75 |
| 12 |
539910211 |
KEY, #9 WOODRUFF Price: $2.99 |
| 13 |
104-1480-03 |
TRACTION PLATE ASM Price: $60.36 |
| 13 |
539100511 |
PULLEY, MAIN SHAFT Price: $76.99 |
| 14 |
539100488 |
BEARING, FLANGED Price: $39.99 |
| 14 |
85-9900-03 |
PLATE-ANCHOR, SPRING Price: $21.09 |
| 15 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 15 |
539100487 |
END PLATE Price: $24.99 |
| 16 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
539990627 |
HCS 5/16C X 1 1/4 This part replaces 539100469. Price: $3.99 |
| 17 |
92-2581 |
DISCONTINUED Price: Call Us |
| 18 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 19 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 20 |
3296-9 |
NUT-HEX Price: $0.25 |
| 21 |
75-4100-03 |
CONTROL-PUMP Price: $198.81 |
| 22 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 23 |
85-9910 |
EYEBOLT Price: $28.77 |
