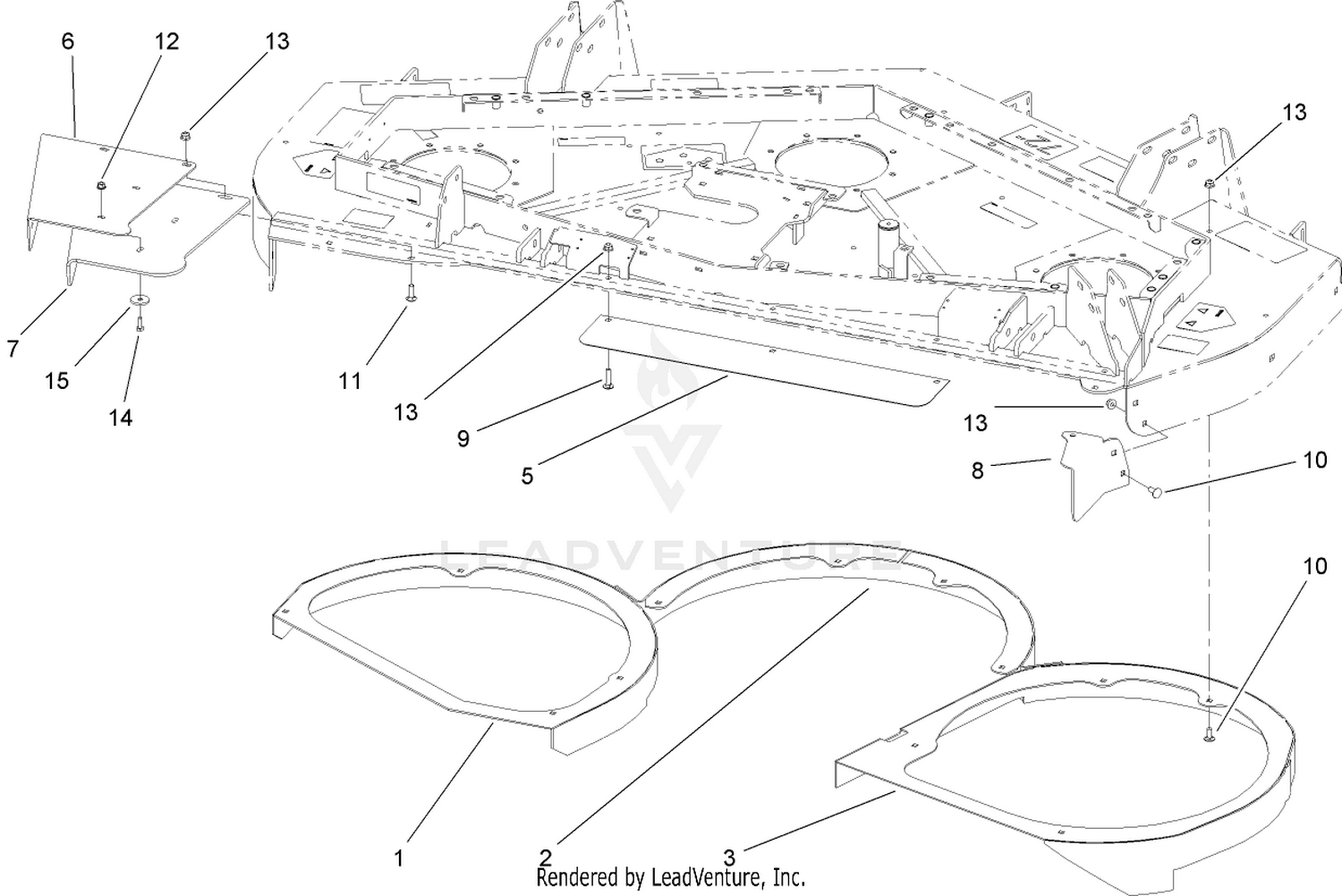

Rear Discharge Chamber Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-0609-01 | LH CHAMBER ASM Price: $266.61 |
| 2 | 110-0612-0P | CHAMBER ASM-CENTER This part replaces 110-0612-01. Price: $266.69 |
| 3 | 110-0615-01 | RH CHAMBER ASM Price: $450.61 |
| 5 | 107-4742-01 | DEFLECTOR-REAR Price: $33.35 |
| 6 | 108-1992-01 | BRACKET-SUPPORT Price: $78.92 |
| 7 | 108-1979 | DEFLECTOR-RUBBER Price: $65.36 |
| 8 | 108-1346-01 | SHIELD-FOOT, RIGHT Price: $50.40 |
| 9 | 3230-3 | SCREW-CARR Price: $0.53 |
| 10 | 3230-23 | SCREW-CARR Price: $0.89 |
| 11 | 3230-22 | SCREW-CARR Price: $1.99 |
| 12 | 32128-32 | NUT-HHF Price: $2.69 |
| 13 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 14 | 321-4 | SCREW-HH Price: $0.99 |
