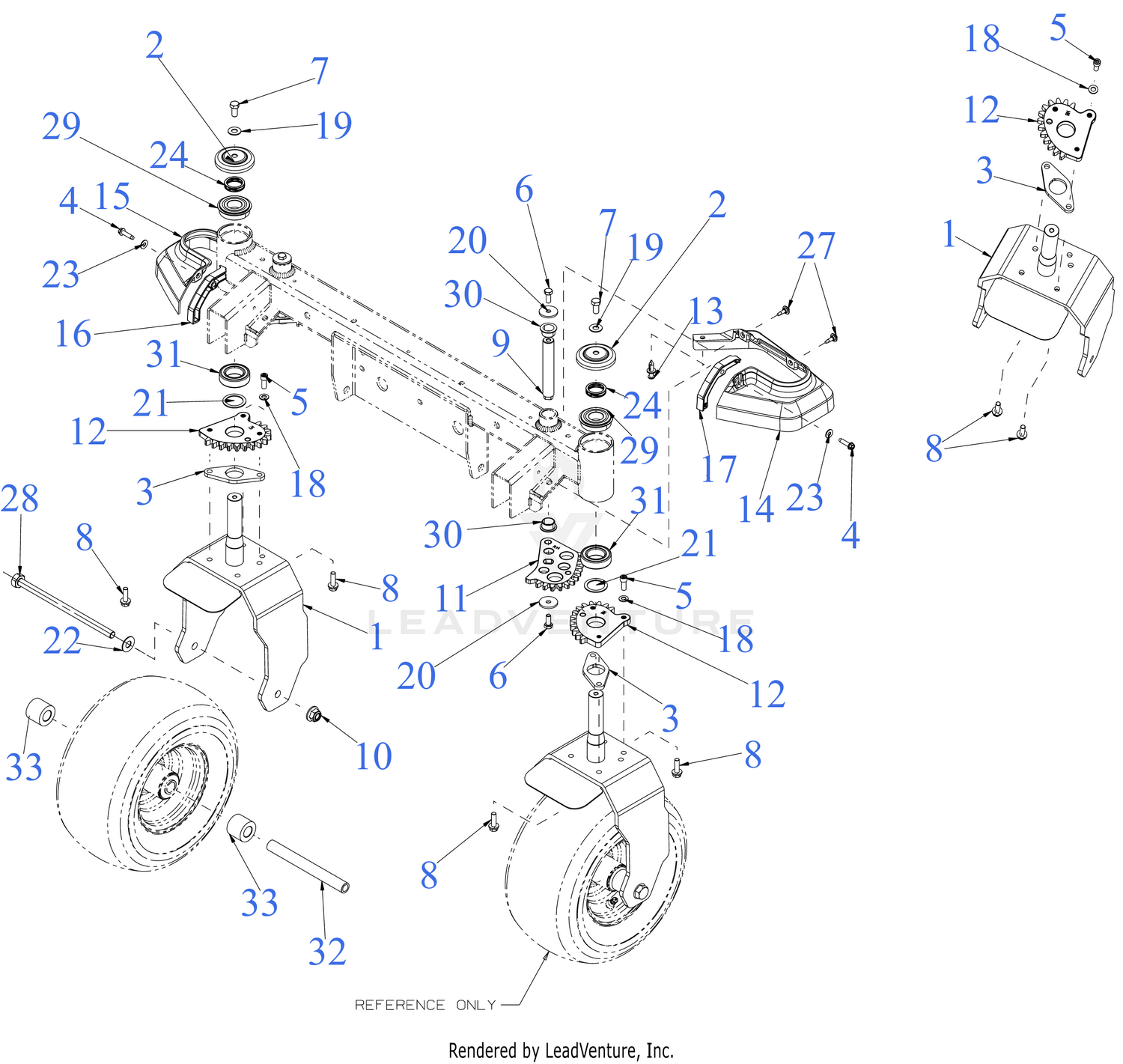

| Ref | Part Number | Description |
|---|
| 2 |
703-11503B |
AXLE CAP Price: $7.02 |
| 3 |
703E27830A |
CASTER GEAR PLATE Price: $11.38 |
| 4 |
710-0788 |
SCREW 1/4-20 x 1.00 Price: $6.20 |
| 5 |
710-1314A |
SCREW 5/16-18 x .625 Price: $4.05 |
| 6 |
710-1880 |
SCREW 5/16-18 x .750 Price: $4.02 |
| 7 |
710-3119 |
SCREW 3/8-16 x .75 GR 5 Price: $5.91 |
| 8 |
710-04048 |
SCREW 5/16-18 x 1 GR5 Price: $4.19 |
| 9 |
711-11386 |
STEERING GEAR PIVOT SHAFT Price: $17.14 |
| 10 |
712-04150 |
NUT Price: $3.74 |
| 11 |
717-06820 |
STEERING GEAR 12T Price: $34.29 |
| 12 |
717-06856 |
SPUR GEAR 13T Price: $51.26 |
| 13 |
728-0199 |
PLASTIC RIVET Price: $4.08 |
| 14 |
731-26616 |
STEERING GEAR COVER (RH) Price: $18.36 |
| 15 |
731-26617 |
STEERING GEAR COVER (LH) Price: $18.36 |
| 16 |
731-27425 |
GEAR COVER EXTENSION (LH) Price: $4.55 |
| 17 |
731-27426 |
GEAR COVER EXTENSION (RH) Price: $4.55 |
| 18 |
736-0264 |
FLAT WASHER Price: $5.99 |
| 19 |
736-0300 |
FLAT WASHER Price: $3.93 |
| 20 |
736-0343 |
WASHER-5/16 x 1.25X 1.27 Price: $3.90 |
| 21 |
736-0558 |
FLAT WASHER 1.187X1.56X.062 Price: $4.51 |
| 22 |
736-3084 |
FLAT WASHER Price: $4.39 |
| 23 |
736-04446 |
FLAT WASHER Price: $3.75 |
| 24 |
736-05033A |
WAVE WASHER Price: $4.19 |
| 27 |
738-05090 |
SHOULDER SCREW M6-1 .368 X.115 Price: $2.77 |
| 28 |
738-05192B |
SCREW-1/2-13X8.5 GR5 FLG RZF-SX Price: $27.37 |
| 29 |
941-05022A |
BALL BEARING 25X52X15 Price: $17.83 |
| 30 |
741-07137 |
FLANGE BEARING .75x.875x.50 Price: $4.89 |
| 31 |
741P07178 |
BALL BEARING (LOWER FRONT AXLE) Price: $22.78 |
| 32 |
750-05351A |
CASTER AXLE SPACER Price: $18.26 |
