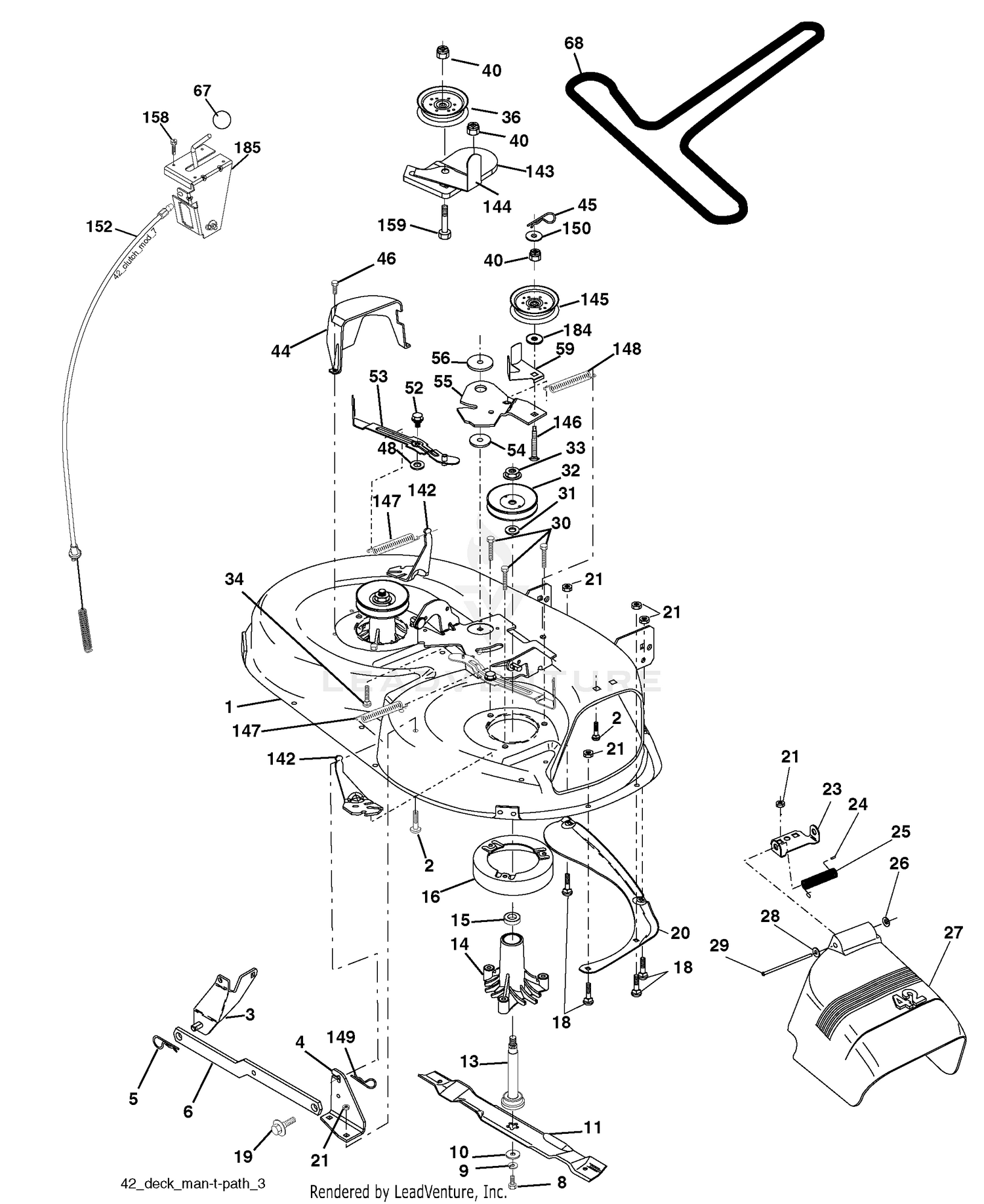

| Ref | Part Number | Description |
|---|
| 1 |
165892 |
Mower Deck Assembly, 42" Price: Call Us |
| 2 |
104-4297 |
CARTRIDGE-SPOOL LOGIC Price: $398.30 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
104-4298 |
CARTRIDGE-SPOOL LOGIC Price: $398.30 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 4 |
105-4564 |
VALVE-RELIEF Price: $240.77 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
104-4273 |
CARTRIDGE-RELIEF, PILOT Price: $229.96 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
95-5638 |
VALVE-SOLENOID Price: $353.93 |
| 7 |
105-7340 |
COIL ASM Price: $267.51 |
| 8 |
353-991 |
PLUG-HEX, HOLLOW Price: $10.21 |
| 8 |
850857 |
Bolt 3/8-24 x 25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
353-990 |
PLUG ASM Price: $10.01 |
| 10 |
140296 |
Washer, Hardened (The following blades are available) Price: Call Us |
| 10 |
353-988 |
PLUG-HEX Price: $10.61 |
| 11 |
104-4276 |
PLUG-ORIFICE Price: $20.15 |
| 11 |
134149 |
Blade, 42" Mulching Std (For mulching mowers only) Price: Call Us |
| 11 |
138971 |
Blade, 42" Hi-Lift (For bagging or discharging) Price: Call Us |
| 11 |
139775 |
Blade, 42" Mulching Premium (For better wear when mulching) Price: Call Us |
| 12 |
95-5644 |
SEAL KIT Price: $19.88 |
| 13 |
137645 |
Shaft As sem bly, Mandrel, Vented Price: Call Us |
| 13 |
95-5645 |
SEAL KIT Price: $12.48 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Washer Head Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Toplock Flange Price: Call Us |
