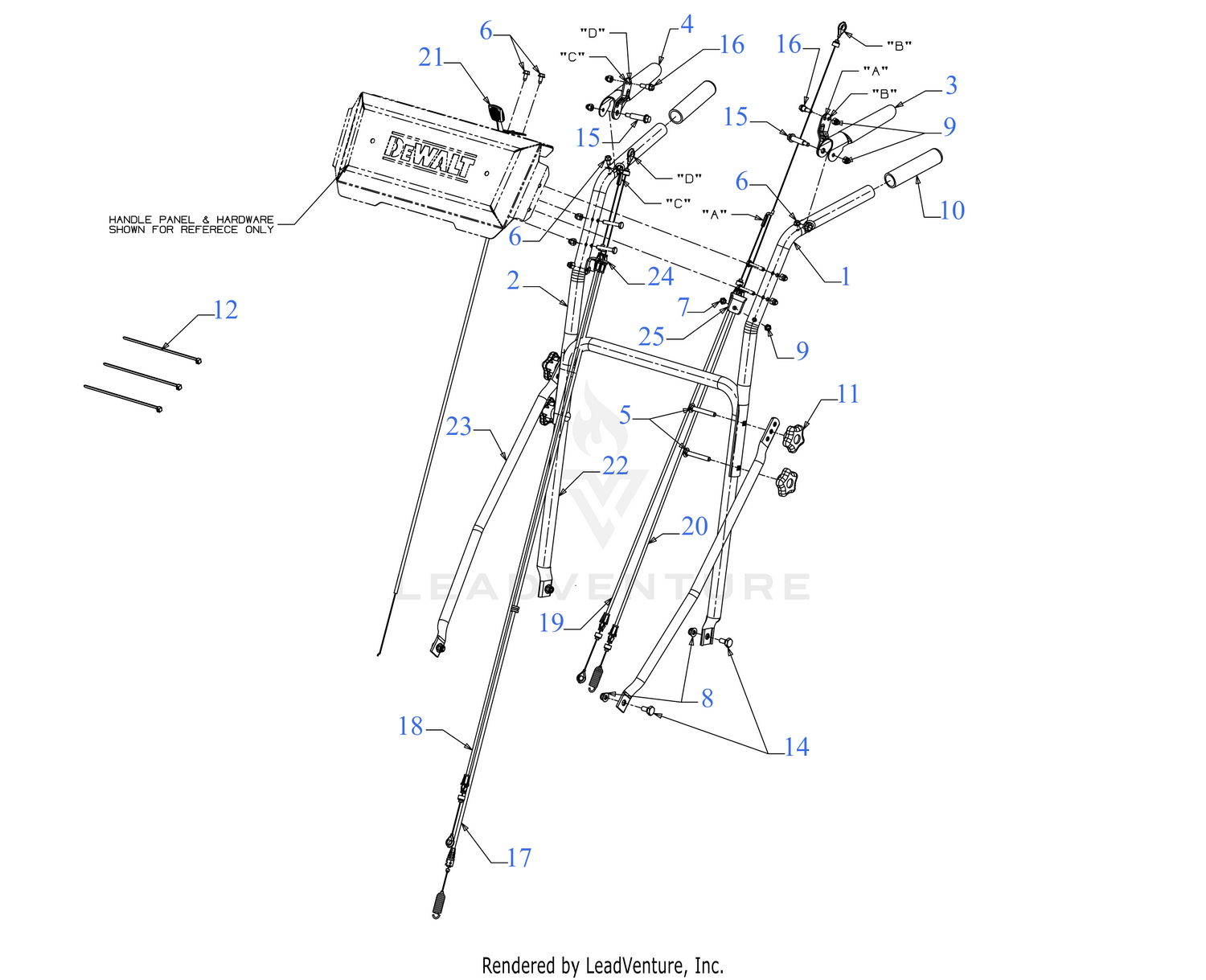

| Ref | Part Number | Description |
|---|
| 5 |
710-0572 |
BOLT 5/16-18 x 2.50 GR1 Price: $3.75 |
| 6 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 7 |
710-0606 |
SCREW 1/4-20 x 1.50 GR.5 Price: $4.67 |
| 8 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 9 |
712-0442 |
HEX ACORN NUT Price: $6.01 |
| 10 |
720-0274 |
GRIP Price: $9.99 |
| 11 |
720-04072A |
STAR KNOB 5/16-18 Price: $6.07 |
| 14 |
738-0140 |
Shoulder Bolt 7/16" Dia. x 1.75" This part replaces 938-0140. Price: $4.93 |
| 15 |
738-05041A |
SHOULDER BOLT .375X1.285:1/4-20 Price: $5.48 |
| 16 |
738-05149A |
SHOULDER SCREW .342X.335X1/4-20 Price: $5.48 |
| 17 |
946-05073 |
BLADE CONTROL CABLE Price: $34.74 |
| 18 |
946-05076A |
TRANSMISSION BRAKE CABLE (RH) Price: $31.66 |
| 19 |
946-05077A |
TRANSMISSION BRAKE CABLE (LH) Price: $31.66 |
| 20 |
946-05149 |
WHEEL CLUTCH CABLE Price: $48.46 |
| 21 |
946-05354 |
THROTTLE CABLE Price: $35.80 |
| 24 |
787-01490A-0637 |
CABLE BRACKET MOUNTING (RH) Price: $8.85 |
