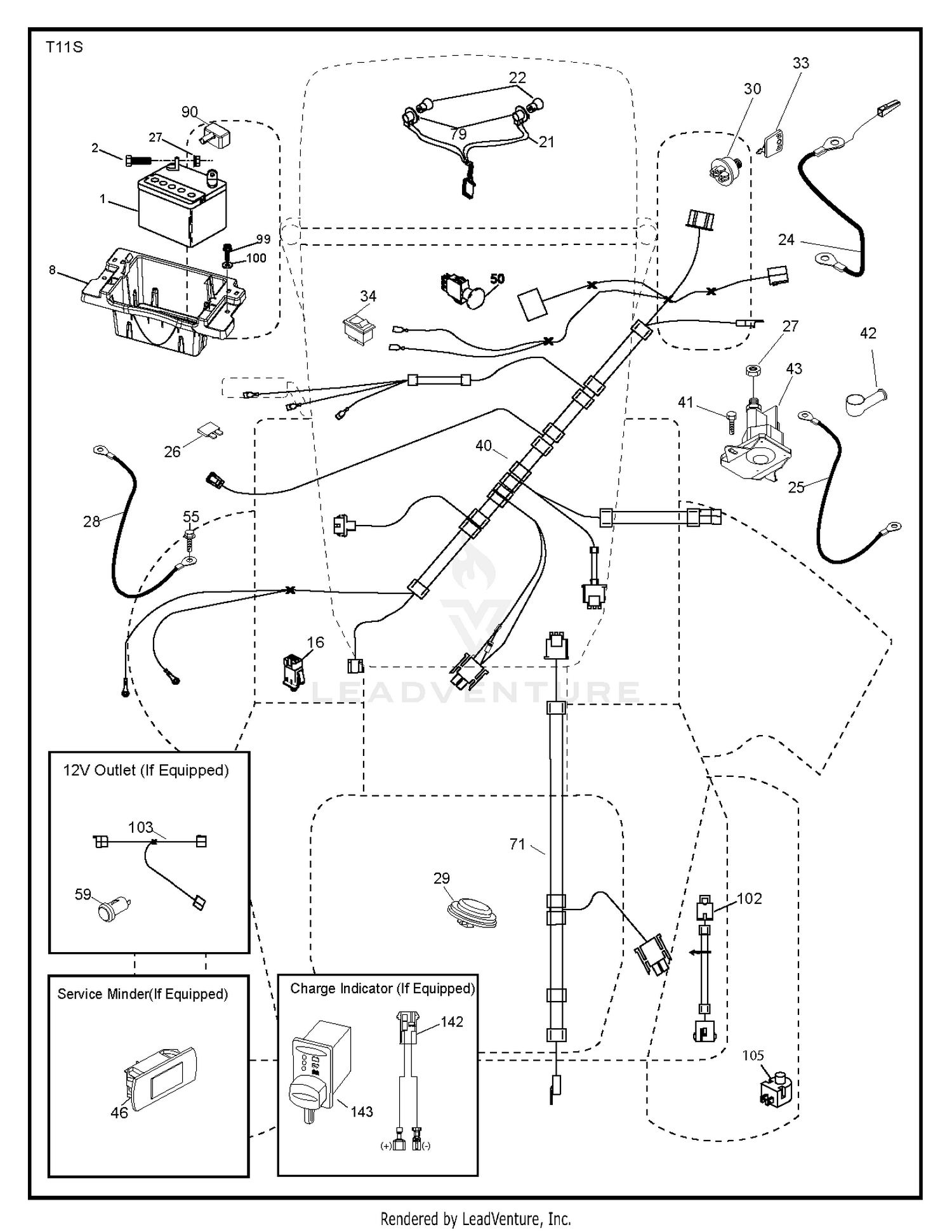

| Ref | Part Number | Description |
|---|
| 1 |
104-8601 |
DISCONTINUED Price: Call Us |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
104-8600 |
DISCONTINUED Price: Call Us |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 5 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 6 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 8 |
323-11 |
SCREW-HH Price: $1.08 |
| 8 |
587205101 |
TRAY.BATTERY BOX.FRONT Price: $14.99 |
| 9 |
84-8320 |
INSERT-HINGE Price: $29.68 |
| 10 |
104-8602 |
CENTER LIFT ARM ASM Price: $649.23 |
| 11 |
328-12 |
SCREW-HH Price: $9.77 |
| 12 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 13 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 14 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 15 |
325-4 |
SCREW-HH Price: $0.95 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
92-8754 |
DISCONTINUED Price: Call Us |
| 17 |
32121-27 |
PIN-ROLL Price: $1.56 |
| 18 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 19 |
110-0009 |
JOINT ARM ASM This part replaces 75-3010-03. Price: $199.32 |
| 20 |
32121-122 |
PIN-ROLL Price: $2.93 |
| 21 |
323-12 |
SCREW-HH Price: $1.14 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
75-5410 |
BRACKET-ARM Price: $12.57 |
| 23 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 24 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 Price: $7.99 |
| 25 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
92-9097 |
SCREW-HS Price: $1.56 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532416588 |
CABLE.GROUND.21"BLK.8GA.90T Price: $11.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
501132901 |
HARNESS HARNESS..DASH.ING.ELEC Price: $59.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 582042801. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 103 |
532407962 |
HARNESS PIGTAIL 12V OUTLET Price: $8.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
