| Ref | Part Number | Description |
|---|

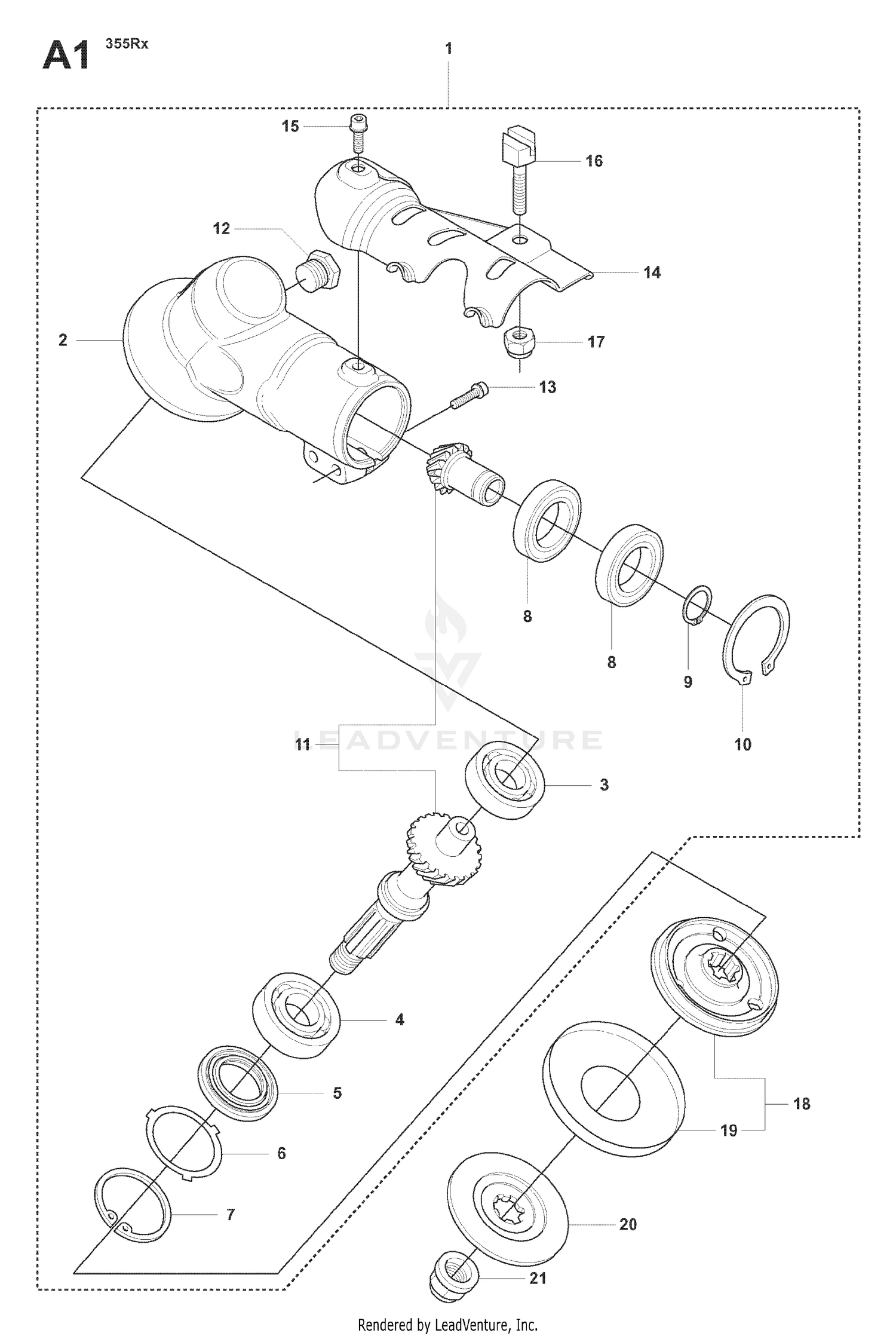

| 1 |
537428403 |
BEVEL GEAR Price: $799.99 |
| 1 |
56-9080 |
NOZZLE Price: $76.83 |
| 2 |
537428403 |
BEVEL GEAR This part replaces 537428501. Price: $799.99 |
| 2 |
56-9330 |
PAD Price: Call Us |
| 3 |
56-9120 |
NUT Price: Call Us |
| 3 |
738210110 |
BALL BEARING Price: $9.99 |
| 4 |
503250801 |
BALL BEARING Price: $9.99 |
| 4 |
56-9130 |
WASHER SPRING Price: Call Us |
| 5 |
544809201 |
SEALING Price: $9.99 |
| 5 |
56-9360 |
CUSHION RUBBER Price: Call Us |
| 6 |
503758901 |
WASHER Price: $2.99 |
| 6 |
56-9340 |
PLATE Price: Call Us |
| 7 |
56-9420 |
FRAME Price: Call Us |
| 7 |
735313310 |
RETAINING RING SGH 35 Price: $2.99 |
| 8 |
56-9160 |
FAN COVER Price: $26.00 |
| 8 |
738218712 |
BALL BEARING Price: $27.99 |
| 9 |
56-9090 |
NUT Price: Call Us |
| 9 |
735311700 |
RETAINING RING SGA 15 Price: $2.99 |
| 10 |
56-9050 |
HOSE Price: Call Us |
| 10 |
735313110 |
RETAINING RING Price: $2.99 |
| 11 |
537428403 |
BEVEL GEAR This part replaces 502434601. Price: $799.99 |
| 11 |
56-9430 |
WASHER Price: $0.61 |
| 12 |
503201501 |
PLUG Price: $4.99 |
| 12 |
82-5670 |
DECAL - WARNING Price: $3.02 |
| 13 |
56-9040 |
WIRE BAND Price: Call Us |
| 14 |
544895701 |
ATTACHMENT PLATE This part replaces 544107801. Price: $17.99 |
| 14 |
56-9070 |
HOSE Price: $64.28 |
| 15 |
503200776 |
SCREW Price: $3.99 |
| 15 |
56-9140 |
WASHER Price: Call Us |
| 16 |
537189501 |
SCREW Price: $3.99 |
| 16 |
57-5640 |
DISCONTINUED Price: Call Us |
| 17 |
56-9210 |
BOLT WASHER Price: $2.09 |
| 17 |
732211601 |
LOCKNUT M6 Price: $4.99 |
| 18 |
537351402 |
CARRIER This part replaces 537351401. Price: $32.99 |
| 18 |
56-9150 |
SCREW WASHER Price: Call Us |
| 19 |
537240301 |
GRASS SEALING Price: $11.99 |
| 19 |
56-9060 |
HOSE Price: $78.85 |
| 20 |
537343502 |
FLANGE This part replaces 544217801. Price: $17.99 |
| 20 |
56-9020 |
WIRE BAND Price: Call Us |
| 21 |
502291101 |
NUT BLADE This part replaces 503227301. Price: $6.99 |
| 21 |
98-3206 |
DECAL This part replaces 46-8290. Price: $1.99 |
| 22 |
56-9180 |
DUST SEAL RING Price: $11.92 |
| 23 |
56-9470 |
SCREW Price: Call Us |
| 24 |
56-9190 |
ELBOW Price: $59.32 |
| 25 |
56-9220 |
Clamp Price: Call Us |
| 26 |
56-9100 |
FAN CASE Price: Call Us |
| 27 |
56-9200 |
FAN Price: $169.15 |
| 28 |
56-9170 |
FAN CASE Price: $315.06 |
| 29 |
56-9110 |
BOLT ? WASHER Price: Call Us |
| 30 |
56-9310 |
SWITCH BRACKET Price: Call Us |
| 31 |
56-9400 |
STOPPER Price: Call Us |
| 32 |
56-9390 |
CUSHION RUBBER Price: Call Us |
| 33 |
56-9380 |
CUSHION RUBBER Price: Call Us |
| 34 |
56-9370 |
CUSHION HOLDER Price: Call Us |
| 35 |
56-9360 |
CUSHION RUBBER Price: Call Us |
| 36 |
57-5690 |
STOPPER Price: Call Us |
| 37 |
57-5520 |
FUEL FILTER Price: $20.00 |
| 38 |
54-5600 |
TANK CAP Price: $27.99 |
| 39 |
54-5610 |
BREATHER VALVE Price: $12.34 |
| 40 |
54-5620 |
HOLDER Price: $9.41 |
| 41 |
54-5630 |
GASKET - PACKING Price: $7.88 |
| 42 |
56-9010 |
Fuel Tank Assembly (Incl. Ref. #37-41, 43, 44, 46-50, 52-54) Price: $255.71 |
| 43 |
54-7050 |
HOSE, SUCTION Price: $31.38 |
| 44 |
54-5570 |
Primer-Pump (Incl. Ref. #47-54) Price: $72.21 |
| 45 |
54-5550 |
CLIP Price: $1.63 |
| 46 |
54-5500 |
GASKET Price: $3.72 |
| 47 |
54-5490 |
SEAT VALVE Price: Call Us |
| 48 |
54-5470 |
SPONGE Price: Call Us |
| 49 |
54-5480 |
BALL Price: $3.77 |
| 50 |
54-5460 |
GASKET Price: Call Us |
| 51 |
56-9000 |
FUEL TUBE Price: Call Us |
| 52 |
54-5530 |
SEAT VALVE Price: Call Us |
| 53 |
54-5520 |
CAP Price: $9.21 |
| 54 |
54-5510 |
PUMP CAP Price: Call Us |
| 55 |
56-9230 |
BOLT Price: Call Us |
| 56 |
56-9310 |
SWITCH BRACKET Price: Call Us |
| 57 |
56-9240 |
STOP SWITCH Price: $66.01 |
| 58 |
56-9290 |
WIRE LEAD Price: $10.92 |
| 59 |
57-5700 |
BRACKET Price: Call Us |
| 60 |
57-5650 |
BUSHING Price: Call Us |
| 61 |
56-9350 |
PLATE Price: Call Us |
| 62 |
56-9450 |
SCREW WASHWER Price: Call Us |
| 63 |
56-9440 |
SCREW WASHER Price: $0.61 |
| 64 |
57-5530 |
BOLT Price: Call Us |
| 65 |
56-9250 |
THROTTLE LEVER Price: $86.20 |
| 66 |
56-9460 |
SHOULDER HARNESS Price: Call Us |
