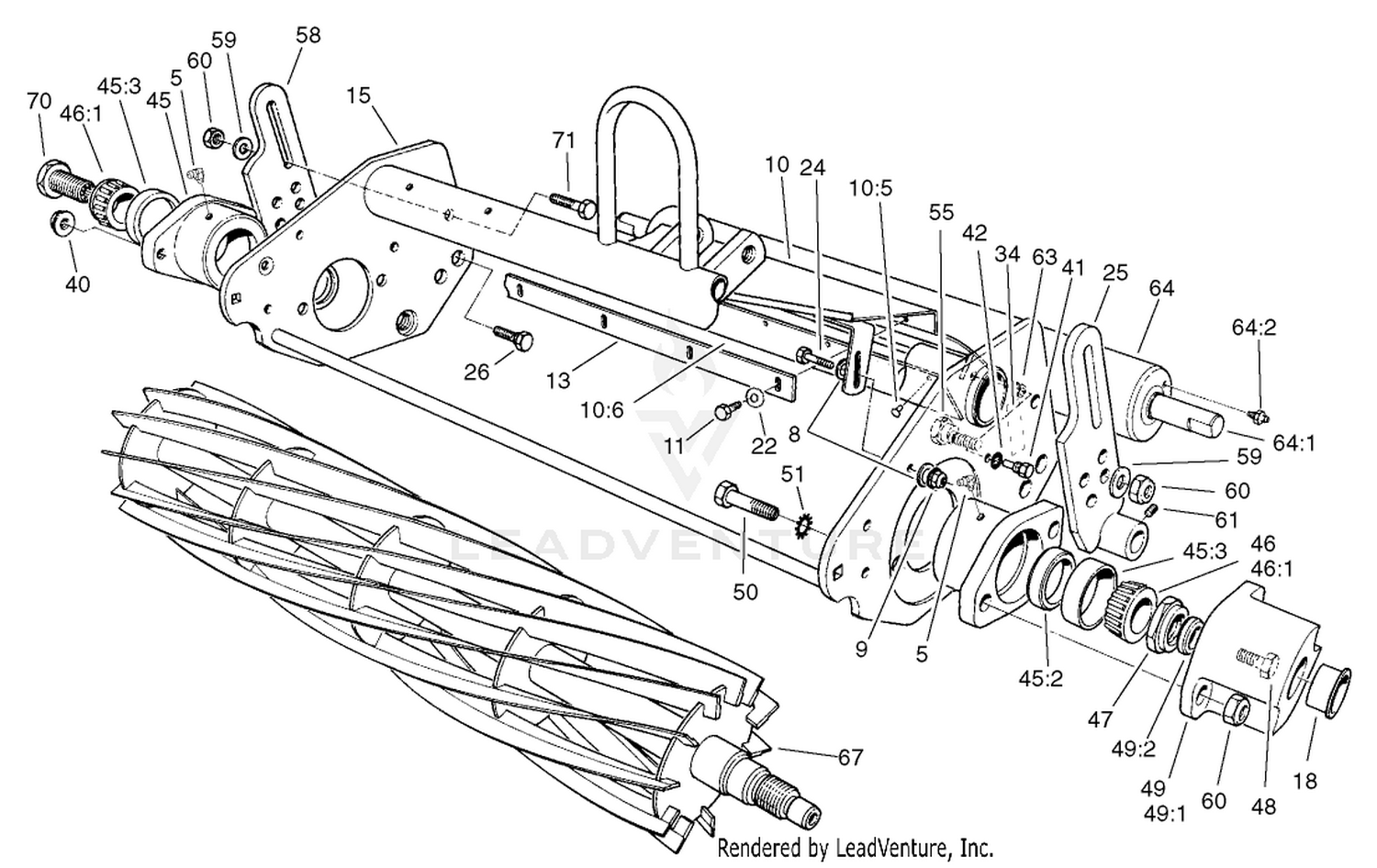

| Ref | Part Number | Description |
|---|
| 5 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 9 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 10 |
57-5200 |
GRASS SHIELD ASM Price: $136.52 |
| 11 |
104-2065 |
SCREW-HWH Price: $0.28 |
| 13 |
36-7260 |
BAR-OFF, CUT Price: $24.10 |
| 15 |
70-1200-01 |
FRAME-REEL ASM Price: $396.13 |
| 18 |
12-0460 |
CAPLUG Price: $2.84 |
| 22 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 24 |
321-5 |
SCREW-HH Price: $0.22 |
| 25 |
77-1080 |
ADJUST-HOC, LH Price: $88.45 |
| 26 |
52-3110 |
BOLT-HOC SHOULDER, RH Price: $31.65 |
| 34 |
77-0490 |
DECAL-BOLT, ECCENTRIC Price: $2.31 |
| 40 |
32128-36 |
NUT-HF Price: $1.56 |
| 41 |
57-9910 |
PIVOT SCREW Price: $6.45 |
| 42 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 45 |
104-3399 |
BEARING HOUSING ASM Price: $68.84 |
| 47 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 48 |
323-2 |
SCREW-HH Price: $0.68 |
| 50 |
57-3210 |
SCREW Price: $2.28 |
| 51 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 55 |
52-3100 |
BOLT-HOC ECCENTRIC, LH Price: $47.11 |
| 58 |
77-1060 |
ADJUST-HOC, RH Price: $88.45 |
| 59 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 60 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 61 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 63 |
237-84 |
GROMMET Price: $1.12 |
| 64 |
52-3120 |
ROLLER ASM Price: $180.27 |
| 67 |
137-8577 |
ES REEL-SPA 4 BOLT, 8 BLD This part replaces 12-3599. Price: $506.13 |
| 67 |
137-8580 |
ES REEL-SPA 4 BOLT, 11 BLD This part replaces 12-2789. Price: $507.81 |
| 70 |
93-1394 |
NUT-SPLINE Price: $27.80 |
