| Ref | Part Number | Description |
|---|
| 1 |
104-4620 |
SEAT This part replaces 66-5400. Price: $273.15 |
| 2 |
92-6534 |
ORDER COMPLETE SEAT This part replaces 67-9560. Price: Call Us |
| 3 |
283-72 |
PIN-LYNCH Price: $9.12 |
| 4 |
3296-54 |
NUT-LOCK Price: $3.59 |
| 5 |
83-6630 |
SHIM - SWITCH Price: $5.56 |
| 6 |
75-6330 |
DISCONTINUED Price: Call Us |
| 8 |
83-6640 |
SENSOR - REED SWITCH Price: $223.35 |
| 9 |
83-6700 |
SUSPENSION PLATE WA *B Price: $178.89 |
| 10 |
85-6160 |
PIN SPRING Price: $34.80 |
| 11 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 14 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 15 |
83-6690 |
SEAT PLATE WA *B Price: $237.12 |
| 16 |
85-6140 |
SPRING Price: $38.33 |
| 17 |
92-6533 |
SEAT CUSHION KIT This part replaces 67-9550. Price: $290.43 |
| 18 |
69-0770 |
BRACKET-ARM, RH Price: $117.82 |
| 19 |
69-1260 |
SPACER Price: $11.05 |
| 20 |
69-1180 |
ARMREST Price: $166.08 |
| 21 |
32128-19 |
NUT-HF Price: $0.99 |
| 22 |
323-9 |
SCREW-HH Price: $1.29 |
| 23 |
3234-14 |
SCREW-HHF This part replaces 3234-23. Price: $0.61 |
| 24 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 25 |
32120-64 |
RING-SNAP, EXTERNAL Price: $0.25 |

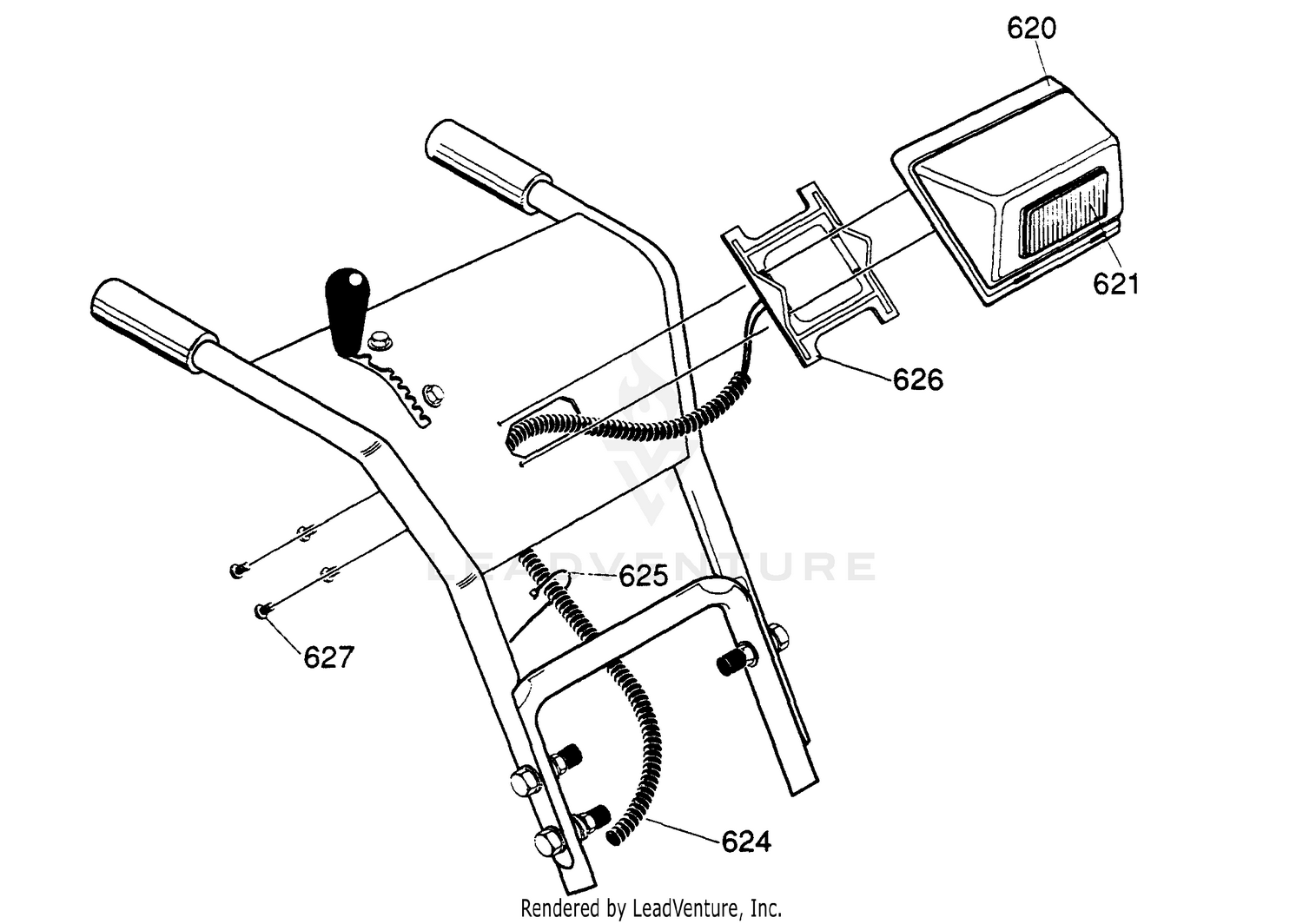

| 620 |
601001648 |
HOUSING, LIGHT B/S Price: $12.99 |
| 621 |
601001649 |
HEADLIGHT ASSY Price: $34.99 |
| 624 |
601001650 |
ASSY, HEADLIGHT WIRE HARNESS Price: $9.39 |
| 625 |
601000628 |
TIE,CABLE BLACK NYLON Price: $3.43 |
| 626 |
601001651 |
BRACKET, LIGHT PANEL Price: $4.80 |
