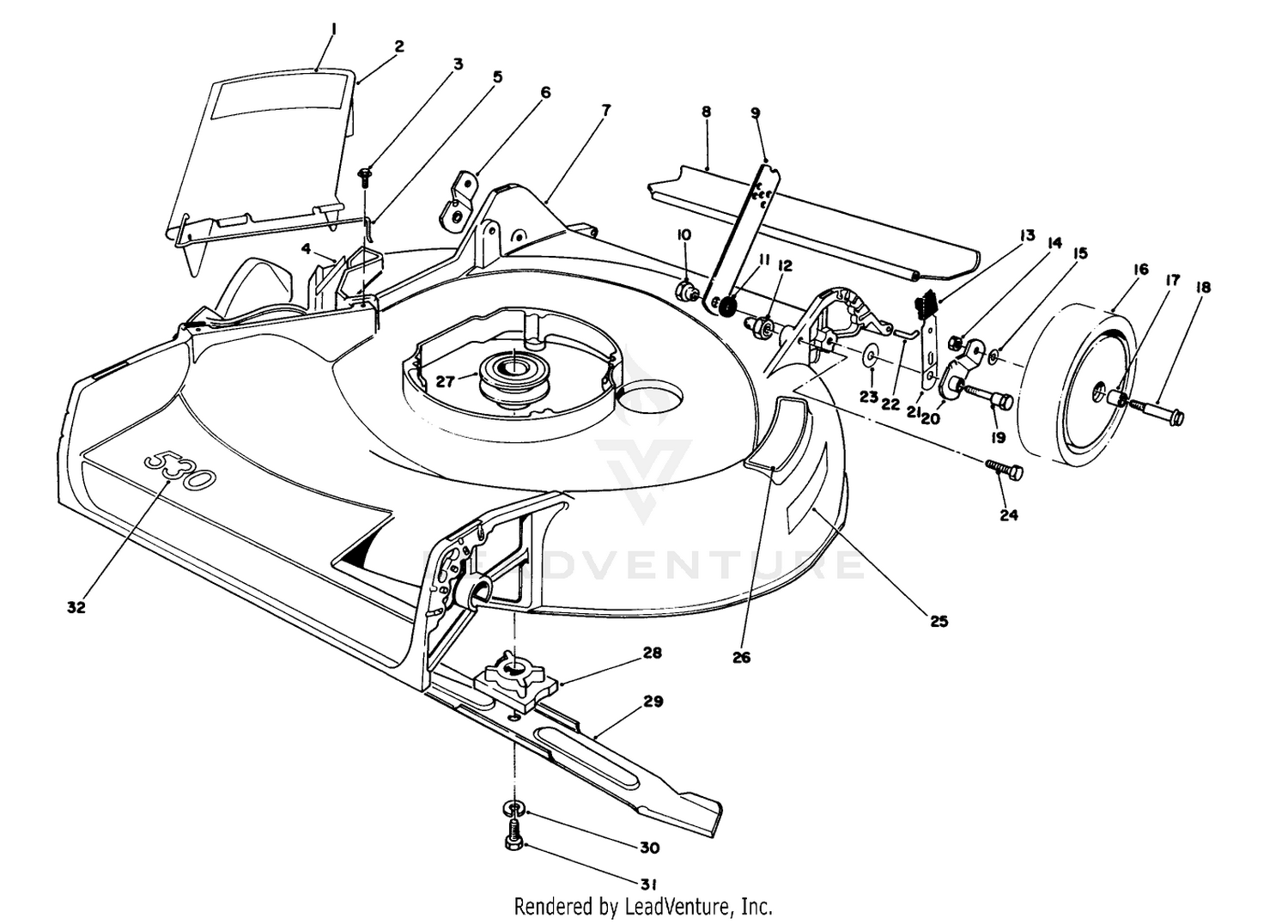

| Ref | Part Number | Description |
|---|
| 1 |
46-9280 |
DISCONTINUED Price: Call Us |
| 2 |
13-5909 |
Deflector Assembly (Incl. Ref. #6 8)(Model No. 22041 Only) This part replaces 27-7815. Price: $72.79 |
| 3 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 4 |
40-2760 |
DISCONTINUED Price: Call Us |
| 5 |
20-2640 |
SPRING HINGE Price: Call Us |
| 6 |
20-2130 |
Pivot Arm Price: Call Us |
| 7 |
11-4639 |
DISCONTINUED Price: Call Us |
| 8 |
22-4950 |
REAR SAFETY SHIELD 21 Price: Call Us |
| 9 |
27-7080 |
HANDLE LATCH Price: $14.79 |
| 10 |
27-6520 |
HANDLE PIVOT NUT Price: $5.81 |
| 11 |
3-3287 |
SPACER Price: $3.69 |
| 12 |
12-2080 |
HANDLE PIVOT NUT Price: $14.79 |
| 13 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 14 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 15 |
40-1940 |
WASHER Price: $1.59 |
| 16 |
51-2751 |
WHEEL AND TIRE ASM This part replaces 11-9509. Price: $21.88 |
| 17 |
27-6250 |
BUSHING Price: $2.17 |
| 18 |
27-6231 |
WHEEL BOLT Price: $3.28 |
| 19 |
28-8880 |
PIVOT SCREW Price: $6.05 |
| 20 |
98-1511 |
PIVOT ARM ASM A PLTD This part replaces 20-2140. Price: $21.58 |
| 21 |
25-8000 |
SPRING ARM ASM Price: $40.81 |
| 22 |
33-3201 |
SHIELD ROD Price: $7.35 |
| 23 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 24 |
322-6 |
SCREW-HH Price: $0.45 |
| 25 |
40-2730 |
DISCONTINUED Price: Call Us |
| 26 |
46-7370 |
STEP PAD DECAL Price: $14.39 |
| 27 |
93-0278 |
PULLEY - DRIVER This part replaces 23-0130. Price: $28.97 |
| 28 |
49-7890 |
BLADE RETAINER Price: $40.51 |
| 29 |
20-2720-03 |
BLADE-21" This part replaces 20-2720. Price: $24.05 |
| 30 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 31 |
26-0671 |
SCREW-HH Price: $7.99 |
| 32 |
46-8310 |
DISCONTINUED Price: Call Us |
