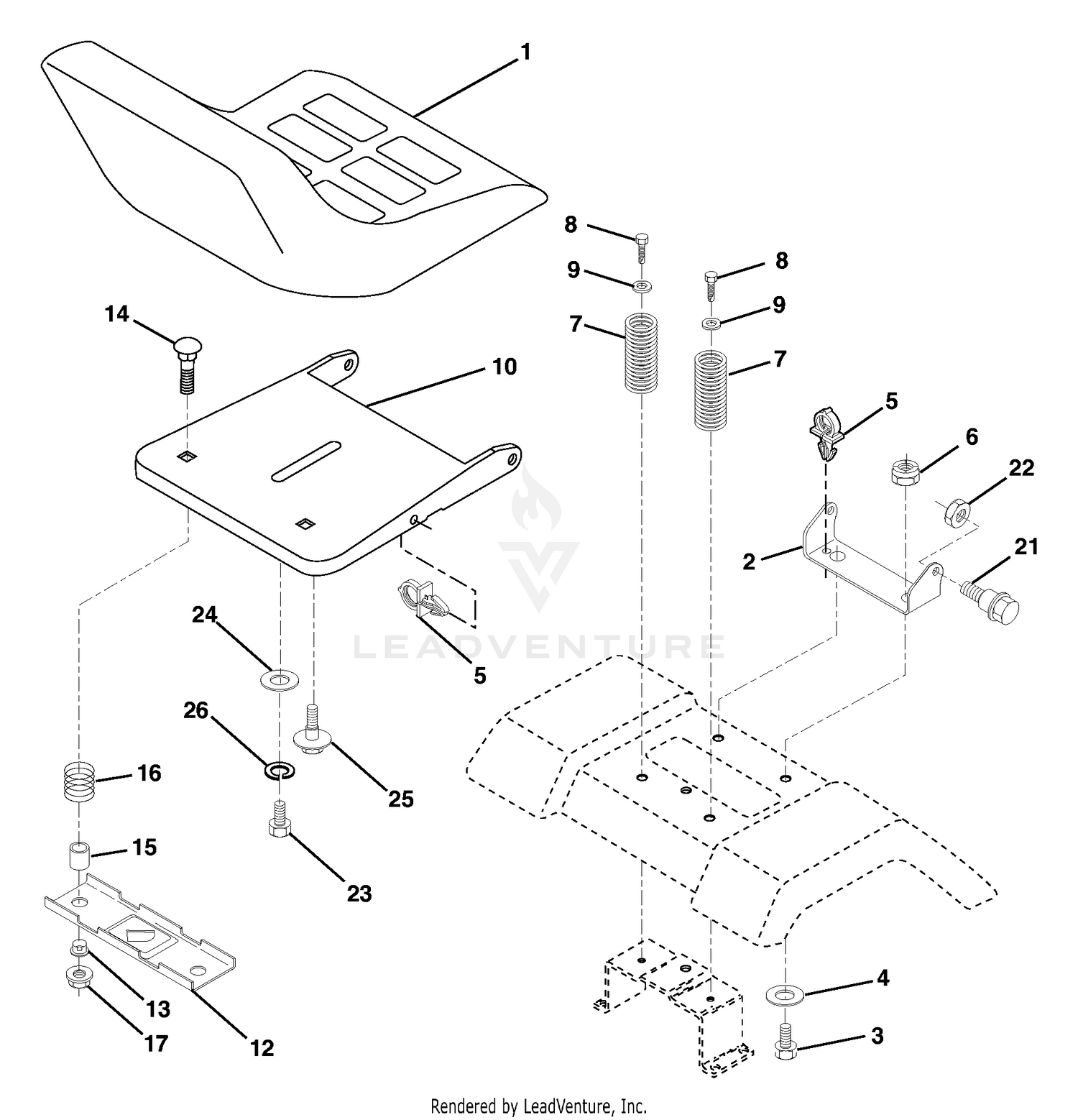

| Ref | Part Number | Description |
|---|
| 1 |
175389 |
Seat Price: Call Us |
| 1 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 2 |
140551 |
Bracket Seat Pivot Price: Call Us |
| 2 |
58-5460 |
VALVE-SELECTOR Price: $479.05 |
| 3 |
340-22 |
FITTING-TEE Price: $90.38 |
| 3 |
71110616 |
Bolt Hex 3/8 - 16 x 1 Price: Call Us |
| 4 |
115-8017 |
REEL MOTOR KIT This part replaces 93-1412. Price: $1,999.51 |
| 4 |
19131610 |
Washer 13/32 x 1 x 10 Ga. Price: Call Us |
| 5 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 5 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 6 |
73800600 |
Nut Lock Hex w/Ins 3/8 - 16 Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Price: Call Us |
| 8 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga. Price: Call Us |
| 9 |
33014-00 |
NUT-HEX Price: $0.25 |
| 10 |
182493 |
Pan Pnt Seat (Blk) Price: Call Us |
| 10 |
48-9530 |
NUT Price: $1.78 |
| 11 |
323-6 |
SCREW-HH Price: $0.66 |
| 12 |
121246X |
Bracket Pnt Mounting Switch Price: Call Us |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 13 |
121248X |
Bushing Snap Blk Nyl Price: Call Us |
| 13 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
340-93 |
TEE-ADAPTER Price: $57.05 |
| 14 |
72050412 |
Bolt Rdhd Sht Nk 1/4 - 20 x 1-1/2 Price: Call Us |
| 15 |
105-9271-01 |
BRACKET-BUMPER Price: $84.53 |
| 15 |
134300 |
Spacer Split .28 x .96 Price: Call Us |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 16 |
48-3280 |
STOP-BUMP Price: $35.14 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Price: Call Us |
| 17 |
60-0090 |
PIN-PIVOT Price: $93.25 |
| 18 |
60-0190 |
STRIP Price: $36.98 |
| 19 |
33114-016 |
SCREW-HH Price: $0.27 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 unc-2A Price: Call Us |
| 21 |
60-0100 |
PIN-PIVOT Price: $94.46 |
| 22 |
73800500 |
Nut Lock Hex w/Ins 5/16 - 18 Price: Call Us |
| 23 |
68-6480 |
BUSHING-FLANGE Price: $3.19 |
| 23 |
71110814 |
Bolt Hex Price: Call Us |
| 24 |
115-8048-01 |
NO. 4 LIFT ARM ASM This part replaces 92-9296-01. Price: $986.93 |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Ga. Price: Call Us |
| 25 |
127018X |
Bolt Shoulder 5/16-18 x .62 Price: Call Us |
| 25 |
325-34 |
SCREW-HH Price: $2.37 |
| 26 |
58-4380 |
PIN Price: $25.11 |
| 27 |
60-1280 |
PIN Price: $3.53 |
| 28 |
60-1350 |
ROD-PUSH Price: $87.82 |
| 29 |
60-1640 |
STRIP Price: $26.76 |
| 30 |
324-6 |
SCREW-HH Price: $0.81 |
| 31 |
115-8049-01 |
NO. 5 LIFT ARM ASM This part replaces 92-9297-01. Price: $924.15 |
| 33 |
323-14 |
SCREW-HH Price: $1.34 |
| 34 |
115-8011 |
CYLINDER-HYD This part replaces 104-5225. Price: $784.12 |
| 35 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 37 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 39 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 40 |
58-2720 |
PIN Price: $49.81 |
| 41 |
115-8045-01 |
NO. 1 LIFT ARM ASM This part replaces 92-9289-01. Price: $977.54 |
| 42 |
58-9210 |
CAM Price: $92.20 |
| 43 |
60-0080 |
BUSHING Price: $14.79 |
| 44 |
53-5940 |
SCREW Price: $2.90 |
| 45 |
60-1340 |
ROD-PUSH Price: $85.25 |
| 46 |
58-3570 |
SPRING Price: $16.80 |
| 47 |
117-8981 |
BUSHING-RUBBER This part replaces 59-7140. Price: $13.27 |
| 48 |
58-9630 |
SLEEVE Price: $123.35 |
| 49 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 50 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 51 |
3256-56 |
WASHER-FLAT Price: $1.15 |
| 52 |
93-7331 |
DECAL-WARNING Price: $10.35 |
| 53 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 54 |
3217-6 |
NUT-HEX Price: $1.19 |
| 56 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 57 |
3256-26 |
WASHER-FLAT Price: $0.39 |
