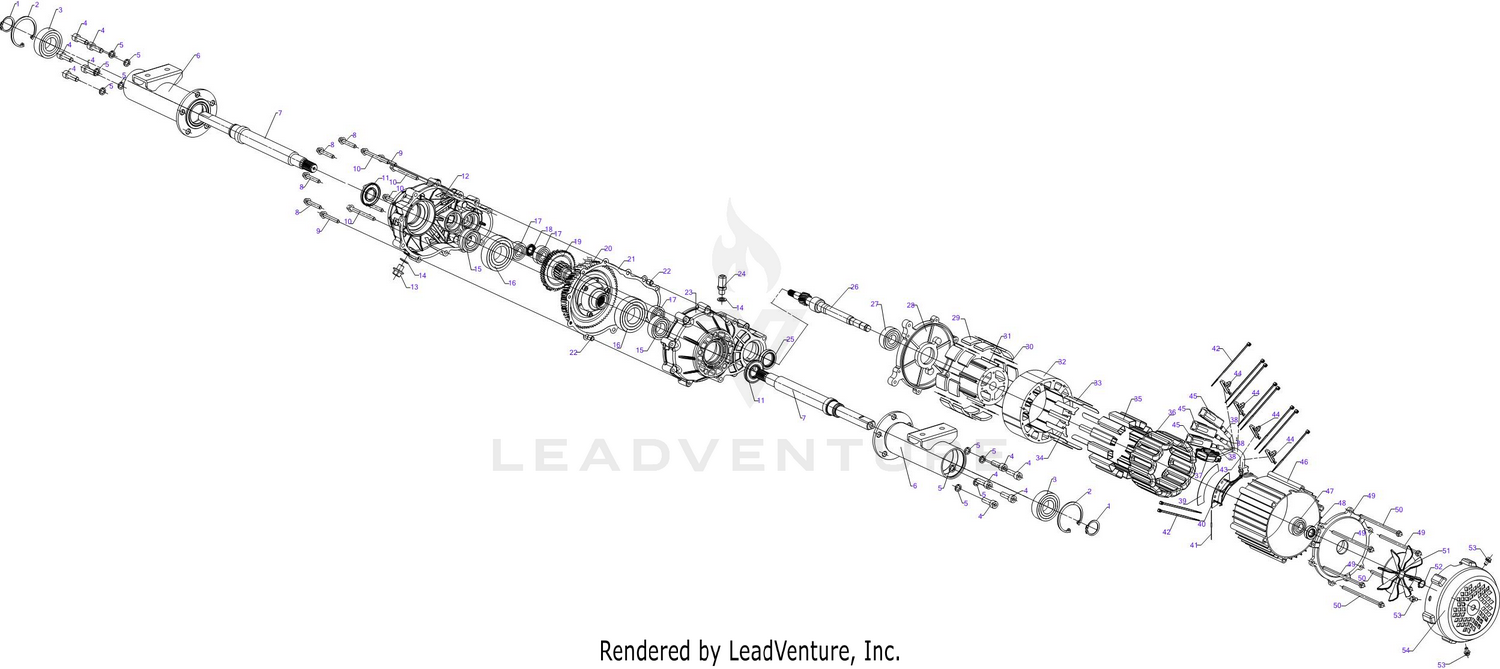

| Ref | Part Number | Description |
|---|
| 1 |
716-05068 |
EXTERNAL RETAINING RING Not Available Price: |
| 2 |
716-05069 |
INNER RETAINING RING Not Available Price: |
| 3 |
941-05410 |
SEALED BALL BEARING (25 x 25 x 15) Price: $15.34 |
| 4 |
710-06934 |
SCREW (M8-1.25 x 25 GRX STD) Not Available Price: |
| 5 |
736-05322 |
SPLIT LOCK WASHER M8 Price: $2.44 |
| 6 |
918-07734 |
AXLE SUPPORT ASSEMBLY Price: $75.36 |
| 7 |
911-07162 |
AXLE (12.4 x .75) Price: $83.89 |
| 8 |
710-06935 |
SCREW (M6-1x35 GRX SPEC) Not Available Price: |
| 9 |
710-06936 |
SCREW (M6-1x40 GRX SPEC) Not Available Price: |
| 10 |
710-06937 |
SCREW (M6-1x65 GRX SPEC) Not Available Price: |
| 11 |
921-05061 |
OIL SEAL (20 x 42 x 5) Price: $5.95 |
| 12 |
N/A |
CRANKCASE COVER |
| 13 |
710-06938 |
SCREW (M10-1.25x10 GRX SPEC) Price: $2.12 |
| 14 |
736-05323 |
FLAT WASHER (M10 x 16 x 1.5) Price: $2.44 |
| 15 |
941-05411 |
SEALED BALL BEARING (20 x 42 x 12) Price: $10.65 |
| 16 |
941-05412 |
SEALED BALL BEARING (30 x 62 x 16) Price: $11.38 |
| 17 |
941-05413 |
SEALED BALL BEARING (12 x 32 x 10) Price: $6.11 |
| 18 |
921-05062 |
OIL SEAL (12 x 24 x 4) Price: $6.11 |
| 19 |
917-05063 |
SPUR GEAR (72-20) Price: $85.33 |
| 20 |
917-05064 |
DIFFERENTIAL SPUR ASSEMBLY (77T) Price: $93.16 |
| 21 |
921-05063 |
TRANSMISSION HOUSING GASKET Price: $10.61 |
| 22 |
750-06970 |
SLEEVE (8 x 10 x 6.3) Not Available Price: |
| 23 |
N/A |
CRANKCASE |
| 24 |
918-05563 |
TRANSMISSION HOUSING BREATHER Price: $3.54 |
| 25 |
921-05064 |
OIL SEAL (17 x 35 x 7) Price: $6.84 |
| 26 |
N/A |
MOTOR SHAFT |
| 27 |
N/A |
BEARING |
| 28 |
N/A |
CONNECTING COVER |
| 29 |
N/A |
SHOE |
| 30 |
N/A |
PIN |
| 31 |
N/A |
ROTOR CORE |
| 32 |
N/A |
STATOR CORE |
| 33 |
N/A |
LAMINATION |
| 34 |
N/A |
LAMINATION |
| 35 |
N/A |
PAPER |
| 36 |
N/A |
WIRE |
| 37 |
N/A |
CONNECTOR |
| 38 |
N/A |
PHASE WIRE TERMINAL |
| 39 |
N/A |
INSULATION BOARD |
| 40 |
N/A |
ASSEMBLY |
| 41 |
N/A |
THERMISTOR |
| 42 |
N/A |
RIBBON |
| 43 |
N/A |
LEADING WIRE |
| 44 |
N/A |
ARROW CLIP |
| 45 |
N/A |
PHASE WIRE CONNECTOR |
| 46 |
N/A |
STATOR COVER |
| 47 |
N/A |
BEARING |
| 48 |
N/A |
REAR COVER OIL SEAL |
| 49 |
N/A |
REAR COVER |
| 50 |
N/A |
BOLT |
| 51 |
N/A |
FAN |
| 52 |
N/A |
RETAINER |
| 53 |
N/A |
SCREW |
