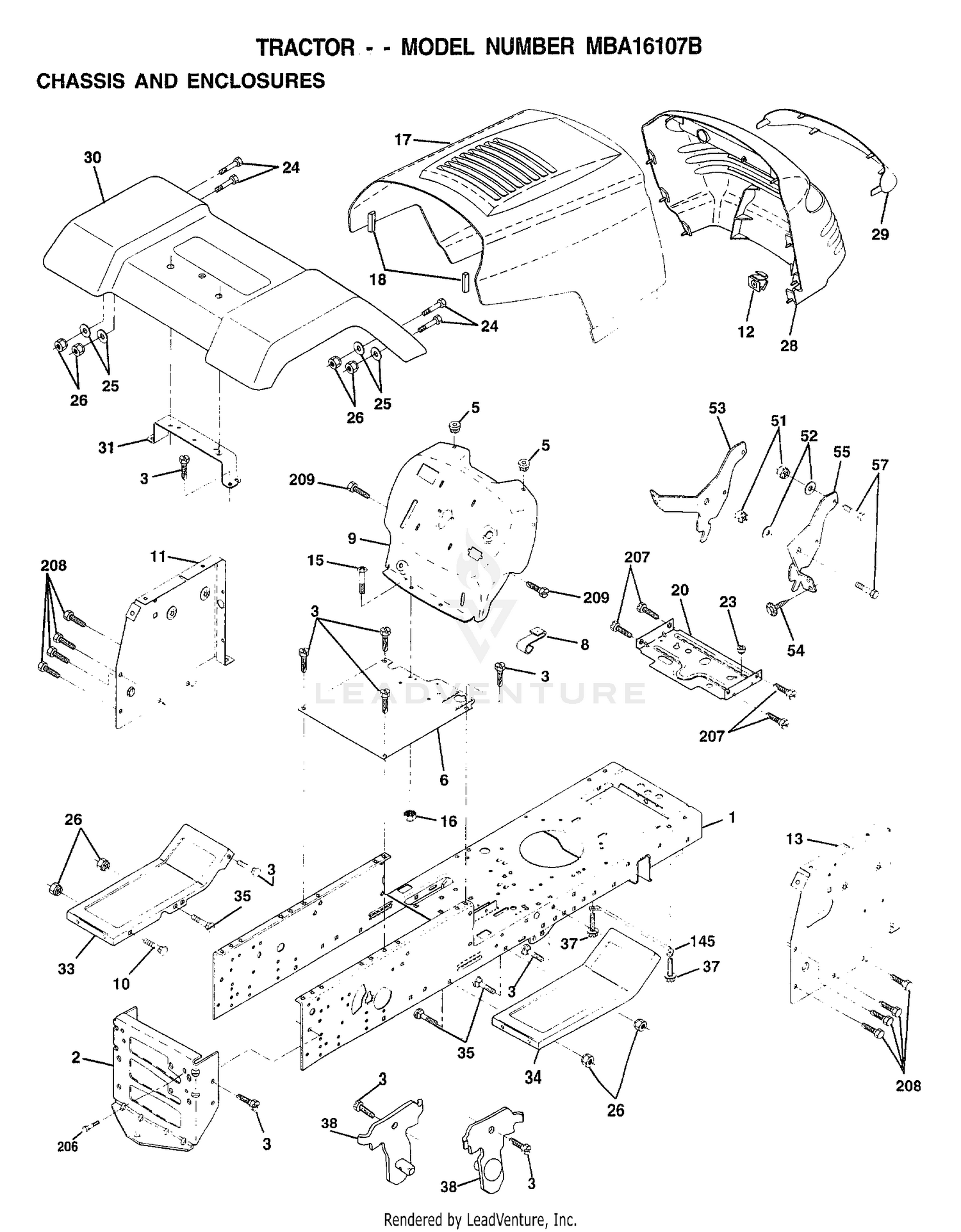

CHASSIS AND ENCLOSURES
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 169831 | CHASSIS Price: Call Us |
| 1 | 93-6028 | PLATE-LOGO Price: $13.70 |
| 2 | 169061 | DRAWBAR Price: Call Us |
| 2 | 94-2638 | NUT-FLAT Price: $0.54 |
| 3 | 17060612 | SCREW Price: Call Us |
| 3 | 321-4 | SCREW-HH Price: $0.99 |
| 4 | 100-5506-03 | SCREEN ASM Price: $1,590.41 |
| 5 | 104-2225 | SEAL-BULB Price: $60.59 |
| 5 | 155272 | BUMPER-HOOD/DASH Price: Call Us |
| 6 | 155923 | SADDLE Price: Call Us |
| 6 | 32128-33 | NUT-HF Price: $0.25 |
| 7 | 104-3590 | SEAL-BULB Price: $37.82 |
| 8 | 104-3580 | SEAL-CORNER, SCREEN Price: $32.63 |
| 8 | 155138 | CLIP.RETAINER Price: Call Us |
| 9 | 168347X011 | DASH Price: Call Us |
| 9 | 3290-467 | PIN-HAIR Price: $0.27 |
| 10 | 32144-109 | SCREW-THD Price: $1.29 |
| 10 | 72140608 | SUB= 72110608 Price: Call Us |
| 11 | 104-3589 | PIVOT-SCREEN Price: $79.95 |
| 12 | 104-3588-03 | PIVOT-SCREEN Price: $32.46 |
| 12 | 145660 | CLIP.TINNERMAN Price: Call Us |
| 13 | 105-7359 | HOOD ASM Price: $1,680.24 |
| 13 | 172107X010 | DASHBOARD Price: Call Us |
| 14 | 65-5100 | HANDLE-DOOR Price: $9.05 |
| 15 | 3234-5 | SCREW-HHF Price: $0.42 |
| 15 | 74180512 | SCREW Price: Call Us |
| 16 | 104-3560-03 | DEFLECTOR-FILTER, OIL Price: $45.90 |
| 16 | 73510500 | NUT Price: Call Us |
| 17 | 159639X558 | HOOD.PNT.W/TRIM Price: Call Us |
| 17 | 32128-20 | NUT-HF Price: $0.99 |
| 18 | 105-4531 | COVER-LATCH Price: $32.23 |
| 18 | 126938X | SUB= 532126938 Price: Call Us |
| 19 | 98-5398 | LATCH Price: $32.53 |
| 20 | 104-3591-03 | BRACKET-LATCH, HOOD Price: $50.28 |
| 21 | 32104-95 | SCREW-HWH Price: $0.41 |
| 22 | 105-7466-03 | BRACKET-LATCH, RH Price: $53.01 |
| 22 | 105-7467-03 | BRACKET-LATCH, LH Price: $53.01 |
| 23 | 124028X | SUB= 532124028 Price: Call Us |
| 23 | 94-5626 | FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 24 | 32144-1 | SCREW-TAPTITE Price: $3.19 |
| 24 | 74780616 | BOLT Price: Call Us |
| 25 | 19131312 | WASHER Price: Call Us |
| 25 | 3290-378 | TIE-CABLE Price: $0.79 |
| 26 | 137-3101 | SCREW-PLASTIC, HWH This part replaces 46-8092. Price: $0.59 |
| 26 | 73800600 | NUT Price: Call Us |
| 27 | 32104-4 | SCREW Price: $0.47 |
| 28 | 104-3505-03 | SUPPORT-HOOD Price: $120.77 |
| 28 | 157539 | GRILLE Price: Call Us |
| 29 | 150209X599 | LENS.GRILLE Price: Call Us |
| 29 | 2412-134 | CLAMP-R Price: $5.79 |
| 30 | 1-806003 | PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 30 | 169467X558 | FENDER PNT Price: Call Us |
| 31 | 136619 | BRKT FENDER Price: Call Us |
| 31 | 283-67 | PIN-CLEVIS Price: $2.04 |
| 33 | 145244X558 | FOOTREST.LH.YT/GT Price: Call Us |
| 34 | 145243X558 | FOOTREST.RH.LT/YT Price: Call Us |
| 35 | 72110606 | BOLT Price: Call Us |
| 37 | 17490508 | SCREW LT Price: Call Us |
| 38 | 169834 | BRKT ASM PIVOT MOWER REAR Price: Call Us |
| 51 | 73800400 | NUT Price: Call Us |
| 52 | 19091416 | WASHER Price: Call Us |
| 53 | 144697 | BRACKET.GRILLE.LH Price: Call Us |
| 54 | 161464 | SCREW.HEX.WS.HD Price: Call Us |
| 55 | 144696 | BRACKET.GRILLE.RH Price: Call Us |
| 57 | 74780412 | SUB= 74780414 Price: Call Us |
| 206 | 170165 | BOLT SHOULDER Price: Call Us |
| 207 | 17670508 | SCREW Price: Call Us |
| 208 | 17670608 | SCREW Price: Call Us |
| 209 | 17000612 | SCREW Price: Call Us |
