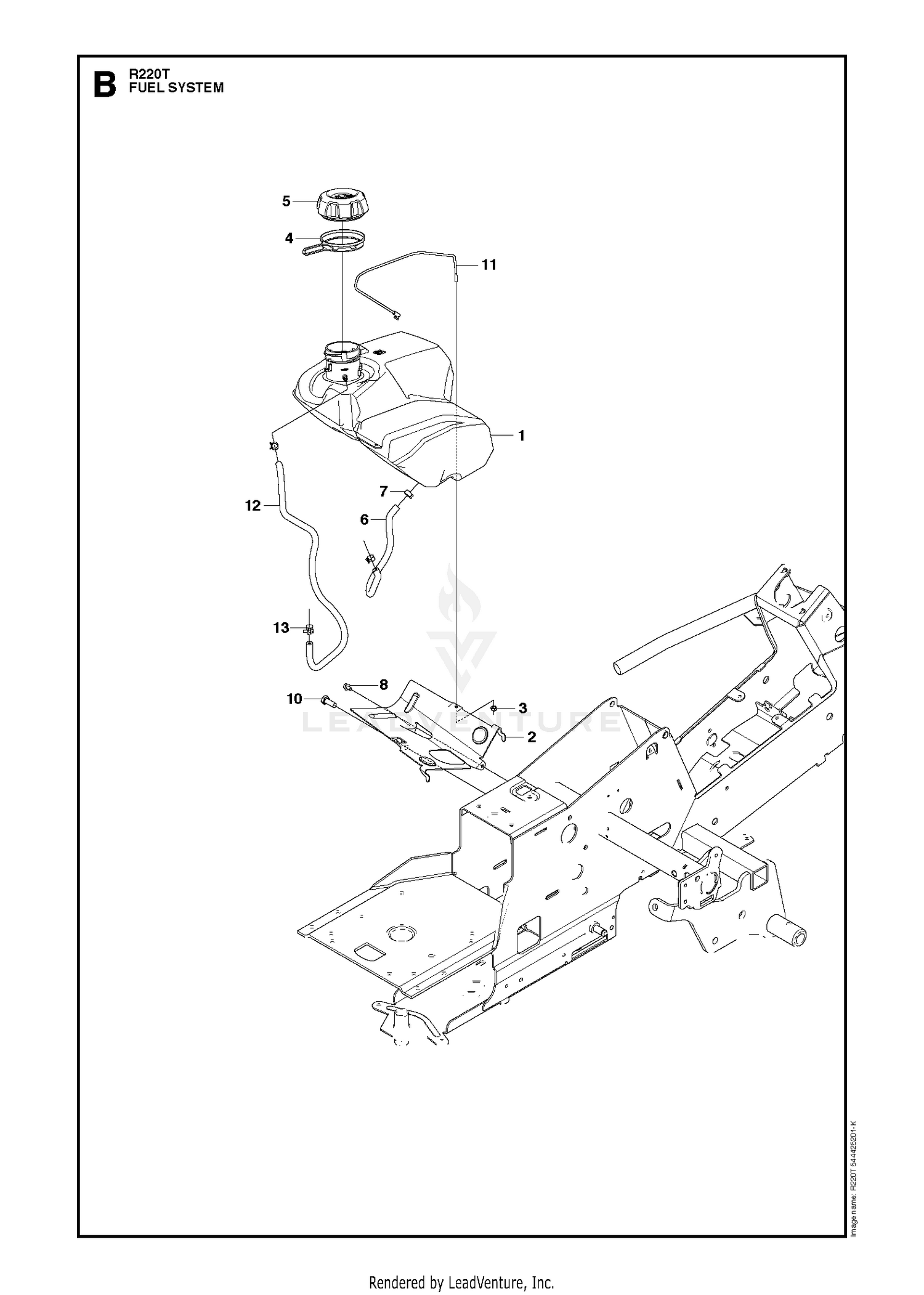

| Ref | Part Number | Description |
|---|
| 1 |
577915002 |
FUEL TANK Price: $119.99 |
| 1 |
95-0647 |
DECAL-CONTROL Price: $16.28 |
| 2 |
578053801 |
BRACKET Price: $32.99 |
| 2 |
95-0601-01 |
VALVE SHROUD ASM This part replaces 95-0601. Price: $85.17 |
| 3 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 3 |
732211601 |
LOCKNUT M6 Price: $4.99 |
| 4 |
353-511 |
FITTING-HYD, 90 DEG Price: $31.93 |
| 4 |
544282604 |
HOSE CLAMP Price: $3.99 |
| 5 |
233-21 |
KNOB Price: $12.99 |
| 5 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 6 |
504800010 |
FUEL HOSE Price: $3.87 |
| 6 |
92-8981 |
LIFT LEVER ASM Price: $72.49 |
| 7 |
3290-360 |
SCREW-HH Price: $4.34 |
| 7 |
535469701 |
CLAMP Price: $2.99 |
| 8 |
2710-20 |
LINK-OFFSET Price: $10.06 |
| 8 |
725236461 |
SCREW Price: $2.99 |
| 9 |
88-8480 |
BRACKET-PIVOT Price: $17.24 |
| 10 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 10 |
725249371 |
Screw M10x25 Price: $1.82 |
| 11 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
578261501 |
WIRE Price: $7.99 |
| 12 |
353-877 |
FITTING-HYD, TEE Price: $20.72 |
| 12 |
504800011 |
FUEL HOSE Price: $11.26 |
| 13 |
353-212 |
FITTING-ELBOW, 45 DEG Price: $22.12 |
| 14 |
121-9070 |
VALVE ASM This part replaces 43-1710. Price: $458.43 |
| 15 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 16 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 17 |
85-0290 |
SPACER-PIVOT, SEAT Price: $7.26 |
| 18 |
92-8983 |
PIVOT Price: $38.15 |
| 19 |
32121-73 |
PIN-ROLL Price: $0.22 |
| 20 |
21-8640 |
LATCH-LEVER, VALVE Price: $33.47 |
| 21 |
95-0636 |
LEVER-BRAKE Price: $146.89 |
| 22 |
282-2 |
YOKE Price: $30.04 |
| 23 |
3220-2 |
NUT-JAM Price: $0.50 |
| 24 |
283-14 |
PIN-CLEVIS Price: $2.92 |
| 25 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 26 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 27 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 28 |
322-8 |
SCREW-HH Price: $1.26 |
| 29 |
237-78 |
O-RING Price: $3.85 |
| 30 |
22-4670 |
HOSE-VALVE/CYLINDER Price: $128.58 |
| 31 |
237-42 |
O-RING Price: $2.78 |
| 32 |
95-0592 |
HOSE ASM Price: $88.92 |
| 33 |
95-0575 |
TUBE-VALVE, SHUTTLE Price: $45.57 |
| 34 |
95-0643 |
TUBE-VALVE TO COOLER Price: $45.04 |
| 35 |
115-6699 |
BRAKE ROD ASM This part replaces 95-0628. Price: $93.68 |
| 36 |
95-5833 |
GUIDE-LEVER Price: $4.23 |
