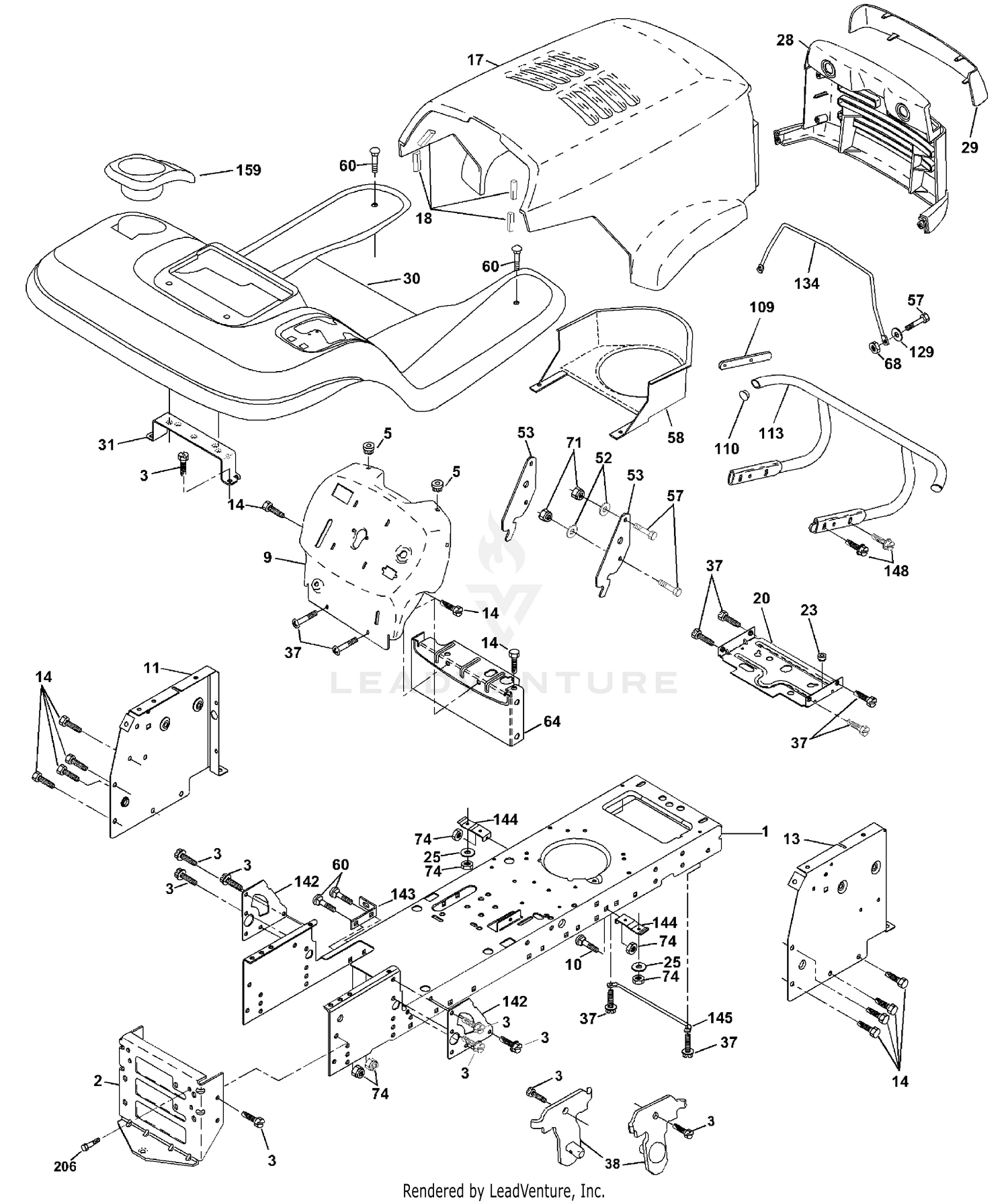

Chassis And Enclosures

Chassis And Enclosures

Parts (71)

RefPart NumberDescription
1 532169830 CHASSIS Price: $99.99
1 67-3770 DISCONTINUED Price: Call Us
2 532176554 DRAWBAR, 12GA This part replaces 532169061. Price: $37.99
2 67-3760 LOCK PLATE Price: $21.29
3 67-3740 NIPPLE Price: $62.56
3 817000612 SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99
4 67-3480 O-RING Price: $2.47
5 532155272 BUMPER.RUBBER.HOOD Price: $3.99
5 67-3490 SPRING Price: $5.86
6 93-3465 GASKET-DELIVERY V. This part replaces 42-8240. Price: $8.09
7 67-3500 SUB-ASSEMBLY VALVE Price: $99.95
8 75-4970 ELEMENT - SUB-ASSY Price: $224.06
9 532168346 DASH SLKSCRN. This part replaces 532171682. Price: $29.54
9 67-3460 SUB-ASM PUMP HOUSING Price: $618.09
10 596728201 Bolts This part replaces 872140608. Price: $3.99
10 67-3520 SUB-ASSEMBLY SLEEVE Price: $47.39
11 532174996 PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99
11 67-3530 SEAT Price: $4.36
12 67-3540 SPRING Price: $12.47
13 532172106 PANEL ASM, DASH RH This part replaces 532169115. Price: $14.99
13 67-3550 DISCONTINUED Price: Call Us
14 596564001 Bolts This part replaces 817490608. Price: $2.99
15 67-3700 DISCONTINUED Price: Call Us
16 67-3810 PIN Price: $4.69
17 532156051 HOOD - LT/YT This part replaces 532165378. Price: $549.99
17 67-3790 DISCONTINUED Price: Call Us
18 532126938 BUMPER HOOD T Price: $3.99
18 67-3800 BRACKET Price: $27.34
19 67-3780 RACK ASSEMBLY Price: $154.27
20 532180679 PLATE MTG.BATTERY/FUEL TANK This part replaces 532156437. Price: $9.99
20 70-3910 WASHER This part replaces 67-3750. Price: $3.15
21 67-3740 NIPPLE Price: $62.56
22 67-3730 DISCONTINUED Price: Call Us
23 532124028 BUSHING.SNAP.NYL.BLK. Price: $4.99
23 67-3720 DISCONTINUED Price: Call Us
24 67-3710 AIR BLEED SCREW Price: $6.38
25 596134901 GSPH This part replaces 819131312. Price: $2.99
25 67-3970 NUT Price: $28.82
26 67-3980 GASKET Price: $3.19
27 67-3960 NOZZLE ASSEMBLY Price: $167.76
28 532156880 GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532165379. Price: $256.99
28 67-3950 PIECE Price: $19.92
29 532149777 LENS LT/PL HUSQVARNA This part replaces 532165380. Price: $24.99
29 93-3502 PIN-PRESSURE This part replaces 67-3940. Price: $3.22
30 583713401 KIT.FENDER.PNT.STL.W/CPH. This part replaces 532171625. Price: $249.99
30 67-3930 SPRING Price: $12.66
31 532139976 BRACKET.SUPPORT.FENDER Price: $14.99
31 93-3491 WASHER-T=1.25 This part replaces 67-3830. Price: $8.80
32 75-5000 BODY SUB-ASSY Price: $147.67
37 596030701 Screws This part replaces 817490508. Price: $2.99
38 532175710 BRACKET.ASM.PIVOT.MOWER.REAR This part replaces 532169834. Price: $9.99
52 596135301 Washers This part replaces 819091416. Price: $2.99
53 532150067 BRACKET PNT PICK OFF LT/PL Price: $1.64
57 596230901 Screws This part replaces 874780412. Price: $2.99
58 532150127 AIR DUCT P/L/LT Price: $13.99
60 872140606 Bolt Rdhd Sqnk 3/8-16unc x 3/4 Price: $4.99
64 532154798 DASH LOWER Price: $17.99
68 586668901 NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99
71 586668901 NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99
74 596322601 Nuts This part replaces 873680600. Price: $2.99
109 532170310 BUMPER BRACKET Price: $4.99
110 532143679 PLUG PLASTIC Price: $2.99
113 532170311 BUMPER ASM. Price: $127.99
129 596582301 Washers This part replaces 819091016. Price: $2.99
134 532160219 ROD SUPPORT HOOD LT/PL HUS. Price: $7.99
142 532175702 PLATE REINFORCEMENT This part replaces 532165867. Price: $7.99
143 532186689 BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99
144 532175582 BRKT, FOOT REST This part replaces 532154207. Price: $4.99
145 532409167 ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99
148 817060620 SCREW.3/8-16 Price: $5.99
159 532155123 CUPHOLDER, BLK This part replaces 532166508. Price: $24.99
