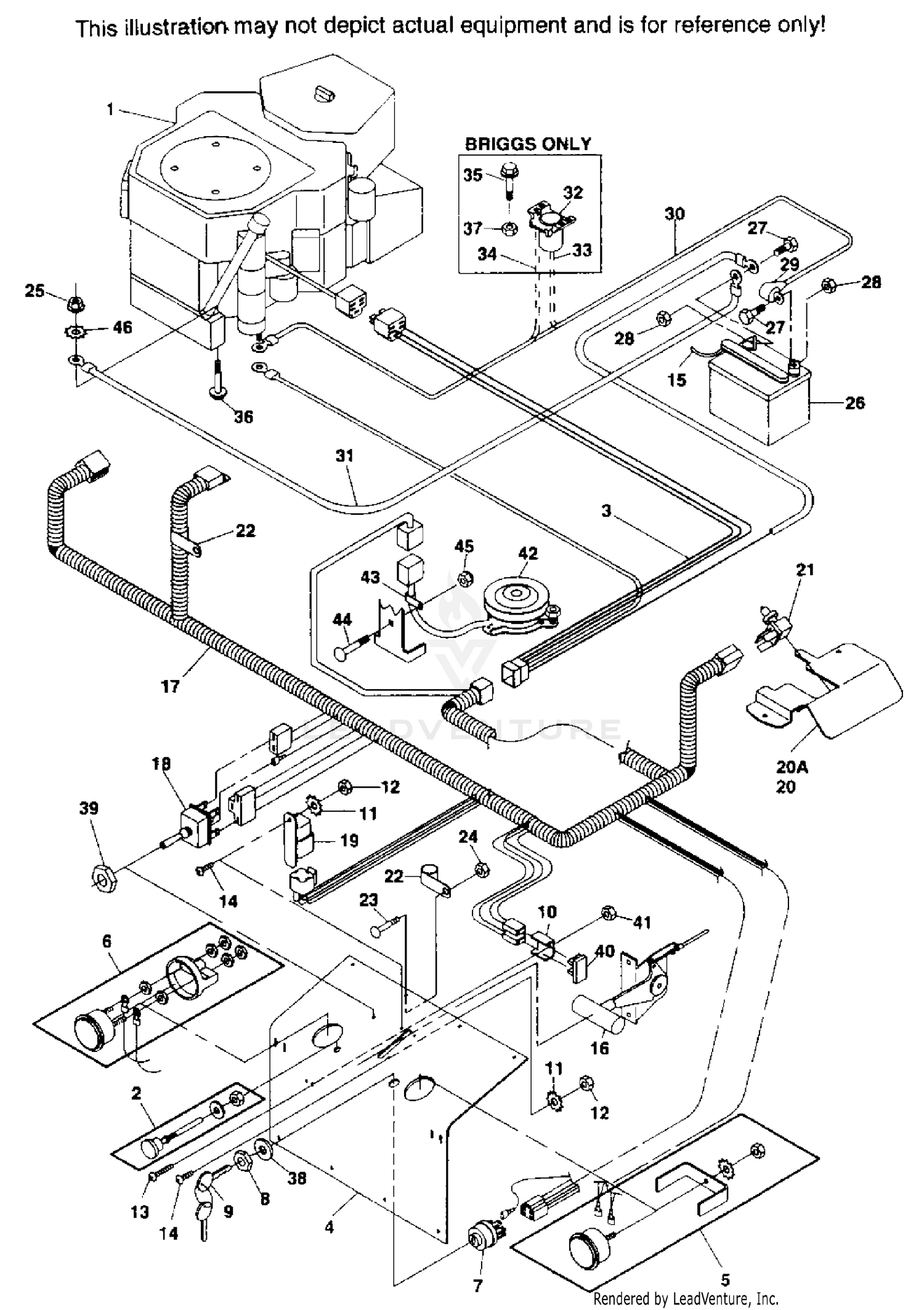

| Ref | Part Number | Description |
|---|
| 4 |
421164 |
KICK PLATE Price: Call Us |
| 5 |
48023 |
HOUR METER(INCLUDE HARDWARE) Price: Call Us |
| 6 |
481755 |
Ammeter This part replaces 48022. Price: Call Us |
| 7 |
48798 |
KEY SWITCH(INCLUDES MOUNTING HARDWARE) Price: Call Us |
| 8 |
48017-04 |
HEX NUT, 5/8-32" Price: Call Us |
| 9 |
48017-02 |
KEY & RING ASSEMBLY Price: Call Us |
| 10 |
42413 |
BRACKET, FUSE HOLDER Price: Call Us |
| 15 |
48015-01 |
OVERFLOW TUBE Price: Call Us |
| 16 |
48879 |
THROTTLE CONTROL Price: Call Us |
| 17 |
481269 |
Wire Harness This part replaces 48781. Price: Call Us |
| 18 |
48787 |
SWITCH, MOWER ENGAGEMENT ELECTRIC CLUTCH Price: Call Us |
| 19 |
48788 |
RELAY Price: Call Us |
| 20 |
421253 |
NEUTRAL LOCK BRACKET, RH Price: Call Us |
| 20A |
421252 |
NEUTRAL LOCK BRACKET, LH Price: Call Us |
| 21 |
481474 |
Switch, Parking Brake This part replaces 48522. Price: Call Us |
| 22 |
48030-06 |
CLAMP Price: Call Us |
| 25 |
04019-03 |
NUT, 5/16-18 SERRATED FLANGE HEX HEAD Price: Call Us |
| 26 |
48015 |
BATTERY Price: Call Us |
| 29 |
48126 |
RUBBER BOOT Price: Call Us |
| 31 |
48029-11 |
BATTERY CABLE, 27" BLACK Price: Call Us |
| 35 |
04017-05 |
BOLT, 1/4-20 X 3/4" SERRATED FLANGE HEX HEAD Price: Call Us |
| 36 |
04017-19 |
CAP SCREW, 5/16-18 X 1 1/2" Price: Call Us |
| 37 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 38 |
48017-03 |
LOCKWASHER, 5/8" INTERNAL Price: Call Us |
| 39 |
48787-01 |
HEX NUT, 1/2-27 Price: Call Us |
| 40 |
48298 |
BLADE TYPE FUSE, 20 AMP Price: Call Us |
| 41 |
04021-01 |
ELASTIC STOP NUT #10-32 Price: Call Us |
| 42 |
461074 |
CLUTCH ASSEMBLY This part replaces 48786. Price: Call Us |
| 43 |
48030-09 |
CLAMP Price: Call Us |
| 45 |
04021-10 |
ELASTIC STOP NUT, 5/16-18 Price: Call Us |
| 46 |
04031-09 |
LOCKWASHER, 5/16" INTERNAL TOOTH Price: Call Us |
