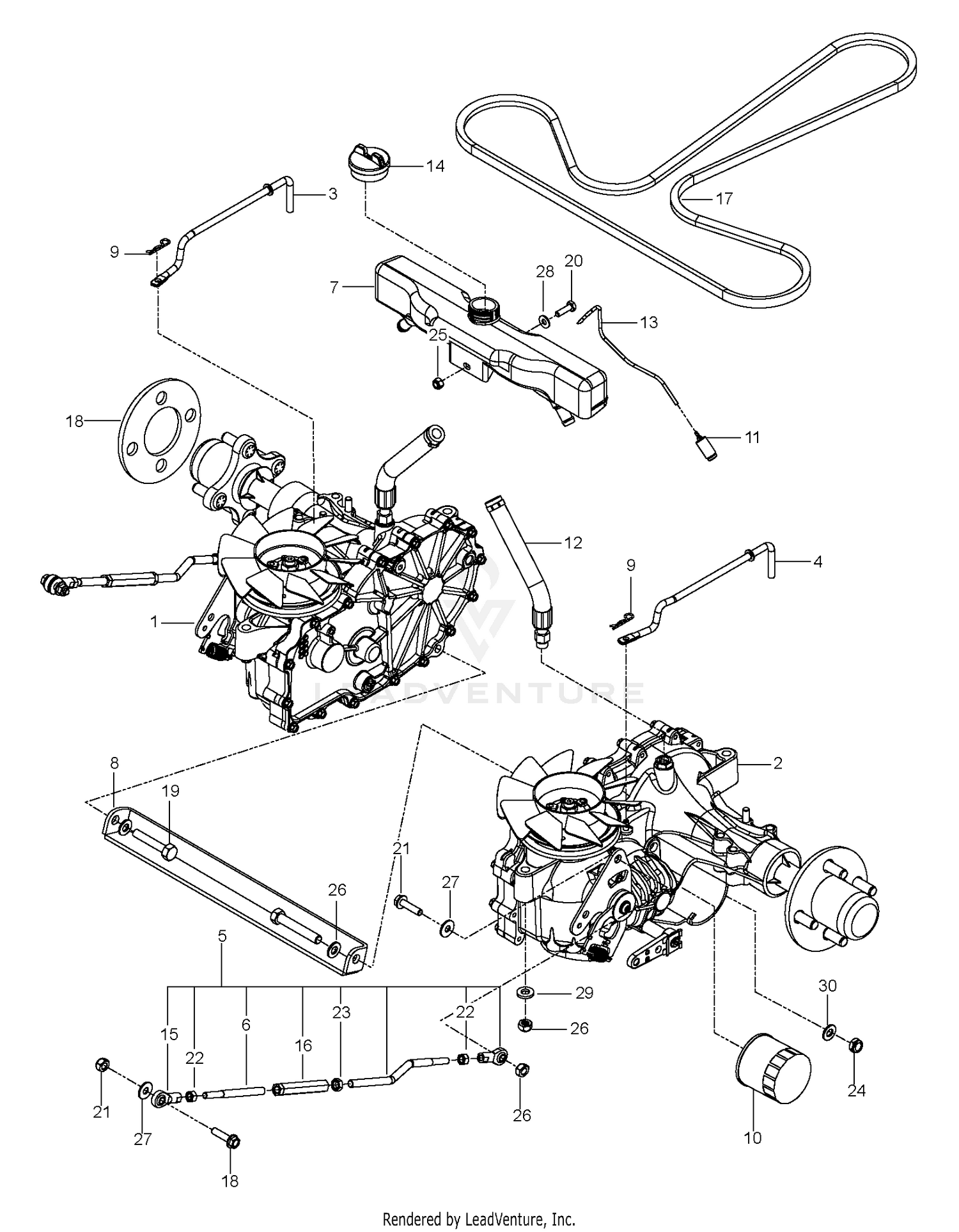

| Ref | Part Number | Description |
|---|
| 1 |
574569102 |
HG_TRANS, ZT-3400, RT Price: $999.99 |
| 2 |
574569101 |
HG_TRANS, ZT-3400, LT Price: $999.99 |
| 3 |
596501901 |
Links This part replaces 539131618. Price: $3.99 |
| 4 |
596500701 |
Links This part replaces 539131616. Price: $6.99 |
| 5 |
576415701 |
ASSEMBLY, CONTROL LINKAGE Price: $84.99 |
| 7 |
585318201 |
TANK EXPANSION W/CAP Price: $22.99 |
| 8 |
581820802 |
BRACKET CMBR XMSM BLK Price: $37.99 |
| 9 |
596580601 |
Pins This part replaces 539976988. Price: $3.99 |
| 10 |
539113466 |
HG_FILTER, ZT4800 52114 Price: $32.99 |
| 11 |
530095646 |
FUEL PICK-UP ASSY Price: $5.99 |
| 12 |
574892101 |
HOSE ASSY, EXPANSION Price: $54.99 |
| 13 |
586067501 |
TANK HOSE Price: $32.99 |
| 14 |
586072701 |
CAP EXPANSION W/SEAL Price: $3.99 |
| 15 |
539102590 |
BALL JOINT, RIGHT HANDED Price: $19.99 |
| 16 |
539109149 |
TURNBUCKLE, 3/8 Price: $39.99 |
| 17 |
576667201 |
BELT, "AX", 86.7" Price: $39.99 |
| 18 |
580906202 |
WHEEL SPACER ZT-3400 CARLISLE Price: $11.99 |
| 19 |
596436501 |
Screws This part replaces 539108551. Price: $2.99 |
| 20 |
596565401 |
Screws This part replaces 539990643. Price: $1.99 |
| 21 |
525544002 |
Bolts This part replaces 525544001. Price: $3.99 |
| 22 |
596040901 |
Hardware This part replaces 539990223. Price: $2.99 |
| 23 |
596029901 |
Hardware This part replaces 539108732. Price: $2.99 |
| 24 |
581848101 |
LOCK NUT 3/8-15 GR C Z/Y Price: $2.99 |
| 25 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 26 |
585476801 |
LOCK.NIUT,5/16-18.GRC.ZY Price: $3.99 |
| 27 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 28 |
596582301 |
Washers This part replaces 539990055. Price: $2.99 |
| 29 |
585477001 |
WASHER.34X69X.10.GR8. ZY Price: $2.99 |
| 30 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
