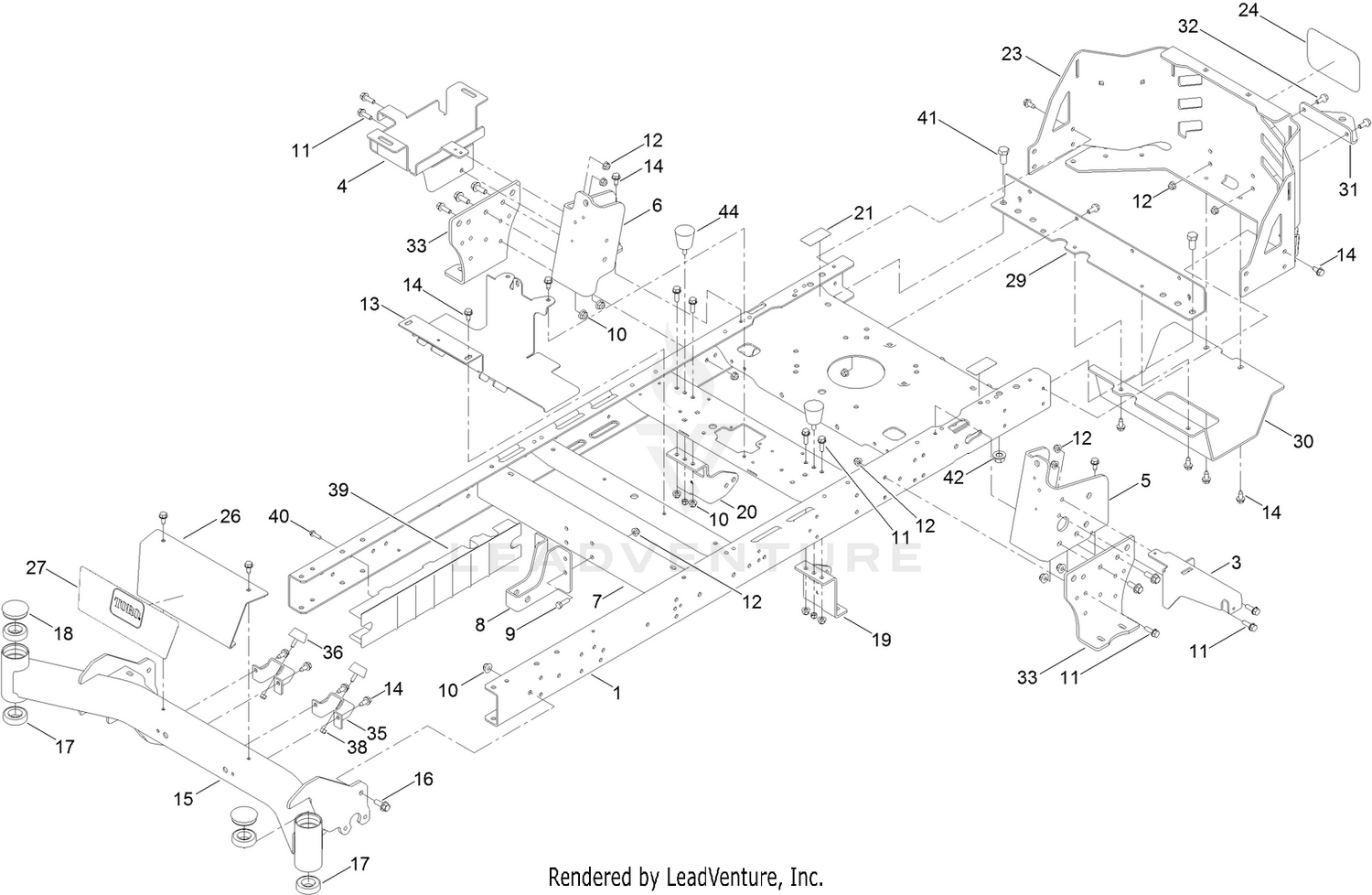

| Ref | Part Number | Description |
|---|
| 1 |
137-7023-01 |
FRAME ASM Price: $215.81 |
| 3 |
133-7051-03 |
BRACKET-SUPPORT, POD (LH) Price: $19.02 |
| 4 |
136-4185-03 |
TRAY-BATTERY Price: $50.81 |
| 5 |
137-5068-01 |
BRACKET-MOUNTING, LH Price: $38.18 |
| 6 |
137-5069-01 |
BRACKET-MOUNTING, RH Price: $38.18 |
| 7 |
133-4413-01 |
BRACE-CROSS, LOWER Price: $35.54 |
| 8 |
137-7022-01 |
BRACKET-MOUNT DAMPER, LOWER This part replaces 133-4435-01. Price: $21.57 |
| 9 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 11 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 12 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 13 |
133-4485-03 |
BRACKET-MOUNT Price: $40.64 |
| 14 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 15 |
133-4310-01 |
AXLE-FRONT Price: $254.05 |
| 16 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 17 |
109-3678 |
BEARING-BALL Price: $9.46 |
| 18 |
116-4348 |
CAP-GREASE Price: $2.36 |
| 19 |
139-3211-01 |
MOUNT-HYDRO, FRONT (LEFT) This part replaces 137-7021-01. Price: $10.06 |
| 20 |
137-7020-01 |
MOUNT-HYDRO, FRONT (RIGHT) Price: $10.68 |
| 21 |
121-2989 |
DECAL-BYPASS Price: $2.26 |
| 23 |
133-4431-03 |
GUARD-ENGINE Price: $133.36 |
| 24 |
99-4693 |
DECAL Price: $14.74 |
| 26 |
133-9345-01 |
PLATE-FRONT Price: $19.02 |
| 27 |
136-7472 |
DECAL-TIMECUTTER HD Price: $4.18 |
| 29 |
137-7016-01 |
CROSSMEMBER-REAR, WIDE This part replaces 133-4303-01. Price: $19.02 |
| 30 |
133-4429-03 |
GUARD-MUFFLER Price: $38.06 |
| 31 |
117-1232-03 |
BRACKET-HITCH Price: $19.74 |
| 32 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 33 |
133-1201-03 |
MOUNT-HYDRO Price: $20.31 |
| 35 |
133-4414-01 |
BRACKET-STOP, BUMP Price: $4.42 |
| 36 |
131-8834 |
BUMPER Price: $7.42 |
| 38 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 39 |
137-5093 |
GUARD-RAIL This part replaces 133-7072. Price: $19.02 |
| 40 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 41 |
325-4 |
SCREW-HH Price: $0.95 |
| 42 |
99-5107 |
NUT-LOCK Price: $1.77 |
